Dell OEM 1130

The compact Dell™ 1130 is a durable 1U server with a depth of less than 20 inches, providing performance and reliability for space-constrained environments. Available in multiple configurations, the 1130 is an ideal solution for remote data centers or rack mounts and transit case deployments. Take a deeper look at the 1130’s specifications, benefits, features and environmental testing certifications. If you are interested in learning more about how to build your solution leveraging the 1130 1U, contact an original equipment manufacturer (OEM) expert.

Dell DCS-1130



Talk to Dell About OEM solutions.
intel
How clould solutions cut costs - Free OEM white paper

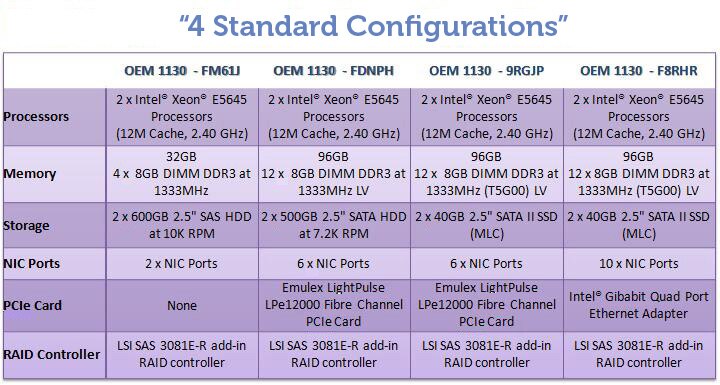

Standard Specifications

If you are interested in learning more about how to build your solution leveraging the 1130 1U, contact an OEM expert.

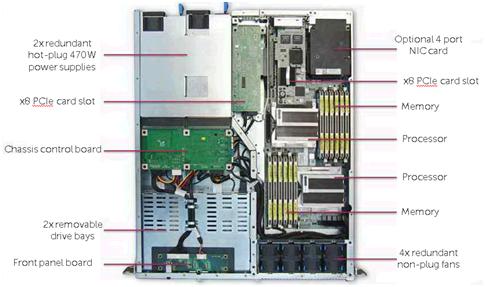

Key Features

  • Compact, highly durable 1U server built for demanding conditions where space is limited
  • An ideal solution for challenging deployment environments and transit case deployments with a depth of less than 20 inches
  • MIL-STD-810G shock and vibration testing and MIL-STD-901D shock compliance certified by an accredited test facility
  • Four high-power cooling fans allow for expanded thermal protection, including an 8-hour excursion to 122°F (50°C)
  • MIL-STD-810G Altitude testing
  • Up to two Intel® Xeon® 5600 series quad-core processors
  • Dual hot-plug 470W power supplies as well as redundant cooling fans
  • Optimized power efficiency
If you are interested in learning more about how to build your solution leveraging the 1130 1U, contact an OEM expert.

Environmental Testing

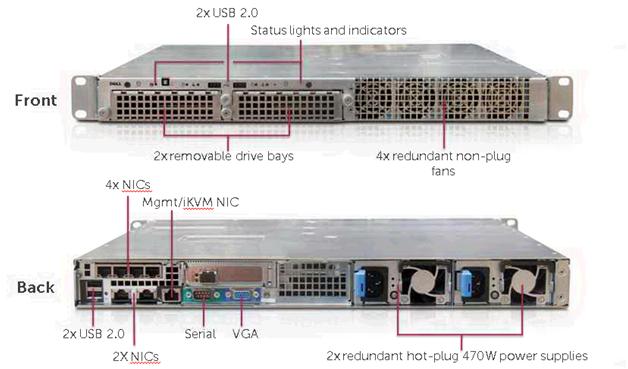

Benefits

There are several benefits on the Dell 1130 1U, including:

1. High-density form factor
  • Compact depth of less than 20” ideal for rack mount or transit case deployments
  • 1U height enables easy transportability and flexibility
2. Uncompromising availability
  • Dual hot-plug 470W power supplies
  • Four redundant cooling fans
  • Two drive bays
  • 6 NIC ports
3. Durable and reliable
  • Cold-rolled steel construction
  • MIL-STD-810G Shock, Vibration and Altitude, MIL-STD-901D Shock
  • Expanded thermal protection, including an 8-hour excursion to 122°F (50°C)
4. Power performance
  • Up to two Intel® Xeon® 5600 series quad-core processors
  • 12 DDR3 memory slots
  • x16 PCI Express generation 2 slot and x8 PCI Express slot
If you are interested in learning more about how to build your solution leveraging the 1130 1U, contact an OEM expert.

  1. Click here to read PDF

    Dell OEM 1130 standard configurations

    Dell OEM 1130 standard configurations

  2. Click here to read PDF

    1130 1U Spec Sheet

    The Dell 1130 is a compact, highly durable 1U server built for demanding conditions where space is limited. It is an ideal solution for remote data centers or rack mount and transit case deployments with a depth of less than 20 inches. Going above and beyond the average server, the 1130 features expanded support for extreme temperatures, high altitude and exposure to shock and vibration.

  3. Click here to read PDF

    1130 1U User Manual

    Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

  4. Click here to read PDF

    1130 System Information Guide

    Observe and follow service markings. Do not service any system except as explained in your system documentation. Opening or removing covers that are marked with the triangular symbol with a lightning bolt may expose you to electrical shock. Components inside these compartments should be serviced only by a trained service technician.
