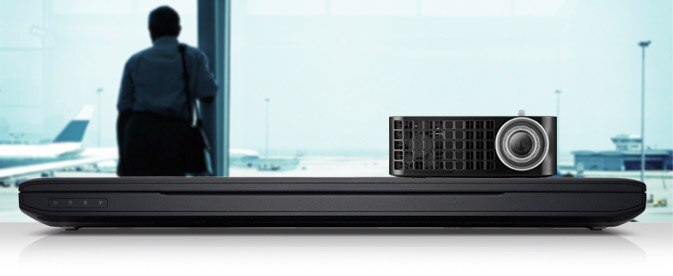

Dell M110 Ultra-Mobile Projector
Dazzle your audience in the conference room and beyond with the M110 Ultra-Mobile Projector. This multimedia projection device gives you the connectivity and storage you need and the bright, radiant colors your media deserves.
- Sized for travel: Take your show on the road with this ultra-portable, ultra-mobile projector, small enough to stow in your laptop bag and so light you’ll forget that it’s there.
- Designed for performance: Bring your most vibrant presentations to life with bright, crisp, high-resolution LED projection, built-in speaker and HD resolution support.
- Built for flexibility: Put it all on the big screen with optional wireless connection* or HDMI input from an array of media sources, including DVRs, Blu-ray Disc™ players, video game consoles and even some mobile devices.
Gallery
360°
Features
The conference room in your laptop bag.
Take your presentations wherever you choose with the M110 Ultra-Mobile Projector, the ideal travel companion for the mobile professional.
- Sized for the road: Measuring in at a mere 4.09” wide, 4.14” long and 1.43” high (104mm x 105.3mm x 36.5mm), the M110 is sized to fit in your laptop bag, purse or the included carrying case.
- Extremely Light: With a weight of 0.8 lb +/- 0.05 lb (360g +/- 22.7g), it’s so light you’ll barely even notice you’re carrying it.
- Media to go: With 1GB internal Flash memory*, the M110 can store your media with ease for grab-and-go mobility.
- A sound choice: A built-in 1W speaker means your audio-visual presentation is totally self-contained. Just grab the M110 and hit the road.
- Be well rounded: Add optional accessories like the wireless dongle, miniature height-adjustable tripod and credit card-sized remote control and run your presentations like a pro.
Small and bright.
You want the ultimate in brightness from your projector. Light up the room with the M110 Ultra-Mobile Projector, featuring dazzlingly bright, colorful and crystal-clear projection.
Radiant: Your presentations will be brilliant with outstandingly bright 300 ANSI Lumens (max.). Let your presentations shine, even in bright, ambient-light environments.
Colorful: DLP® and BrilliantColor™ technology deliver clarity and color accuracy, and native WXGA (1280x800) resolution and 10,000:1 Typical (Full On/Full Off) contrast ratio means images are crisp and beautiful.
Long projection life: The mercury-free LED technology in the M110 projector provides up to 20,000 hours* (Normal Mode) of service and does not require LED/lamp/bulb replacement.
Total connectivity.
Accept no limits when it comes to bringing media to your presentations. The M110 features a remarkable amount of connectivity, giving you a wide range of media options to choose from. More than just a projector, the M110 is truly a portable media hub for home and office. |
- Brightness:
300 ANSI Lumens (Max.)
Contrast Ratio:
10,000:1 Typical (Full On/Full Off)
Native Resolution:
WXGA (1280 x 800)
Uniformity:
80% Typical (Japan Standard - JBMA)
Projector Lens:
F-Stop: F/2.0, Focal length, f = 14.95mm
Lens Offset Ratio:
100%
Throw Ratio:
1.5 (wide and tele)
Projection Distance:
3.18 ft ~ 8.48 ft (0.97m ~ 2.58m)
Diagonal Screen Size:
30” ~ 80” (0.76m ~ 2.03m)
Displayable Colors:
Up to 1.073 billion
LED Light Source:
OSTAR Q6WP mercury-free LED light source
LED Light Source Lifecycle:
Up to 20,000 hours Normal
Audio and Speakers
- 1x 1W speaker
Security
- Kensington® Lock Slot
Password Protection Option
SIZE AND WEIGHT
Dimensions (W x D x H):
4.14" x 4.09" x 1.43" (105.3mm x 104mm x 36.5mm )
Weight:
0.8 lb ± 0.05 lb (360 g ± 22.7 g)
Power
- ELECTRICAL
Power Supply:
Universal AC 100-240 50-60Hz with 65W power adapter
Power Consumption:
Normal Mode: 44W ± 10% @ 110Vac
Eco-Mode: 36W ± 10% @ 110Vac
Power-Saving Mode: ≤10W (fan speed at minimum)
Standby Mode: ≤0.5W (VGA Out Off)
Environmental
- Operating Temperature:
5°C ~ 35°C (41°F ~ 95°F)
Humidity:
80% Maximum
Storage Temperature:
0°C ~ 60°C (32°F ~ 140°F)
Humidity:
90% (maximum)
Shipping Temperature:
-20°C ~ 60°C (-4°F ~ 140°F)
Humidity:
90% Maximum
WHAT'S IN THE BOX
Power Cord
AC Adapter
Universal 24-pin to VGA
Carrying case
User Guide (CD / HTML format)
Quick Setup Guide
Product Information Guide
Storage
- FILE STORAGE
Built-in Flash Memory*
1 GB
Miscellaneous
- OTHERS
Supports closed captioning* (for NTSC only)
*Closed captioning feature can be enabled only via an optional 3.5mm jack AV to RCA cable. AV to RCA cables are available and sold separately.
Connector
- Power:
DC input connector
Computer-In:
24-pin Universal I/O connector for analog RGB input and optional audio output
Video-In:
Audio/Video input connector
USB:
1x USB-A for USB Display, Multimedia Playback (Video/Audio/Photo), USB memory storage access (USB flash drive/internal memory), projector firmware update, or optional wireless functionality
Memory Card Input:
1x MicroSD card slot for multimedia playback (Video/Audio/Photo) or Media & Image Processors firmware updates
HDMI Input:
1x HDMI 1.3 (HDCP compliant)
Video Support
- Composite Video input:
NTSC [M, 3.58, 4.43), PAL (B, D, G, H, I, M, N, 4.43), SECAM (B, D, G, K, K1, L, 4.25, 4.4)
Component Video input via VGA:
480i/p, 576i/p, 720p (50/60 Hz), 1080i (50/60 Hz)
HDMI Input:
480i/p, 576i/p, 720p, 1080p
