8U / 14U / 22U WALL MOUNT OPEN FRAME RACK CABINET 2POST

Name: 8U / 14U / 22U WALL MOUNT OPEN FRAME RACK CABINET 2POST
Brand: Tripplite
SKU: a7267995
Rating: 4.4 (7 reviews)

4.4 (7)

$169.67

Limited Stock

Financing Offers Learn More

Add to Cart

Manufacturer part SRWO8U22 | Dell part A7267995 | Order Code a7267995 | TrippLite

Compare Compare

Expandable, 2-Post Wall-Mount Open Frame Rack

Are you running out of IT floor space? Do you need to accommodate rackmount equipment at a remote location or branch office? Are you planning for future expansion? Tripp Lite has the solution. Our SRWO8U22 Wall-Mount Open Frame Rack saves floor space and provides an economical margin for future growth. This expandable 2-post wall-mount open frame rack can be assembled in one of three configurations, meeting your current needs and leaving rack space in reserve for the future. With its heavy-duty steel frame, the SRWO8U22 can accommodate up to 150 lbs. of equipment in up to 22U of rack space—off the floor! The SRWO8U22 assembles and installs quickly, and comes with a 5-year warranty.

slide {0} of {1}, zoom in, Expandable, 2-Post Wall-Mount Open Frame Rack

One Economical Solution for Current and Future Needs

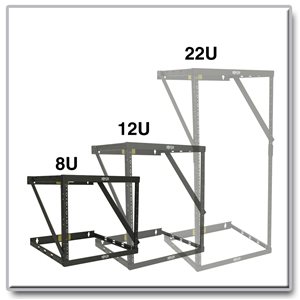

The SRWO8U22 comes with all the parts required to assemble an 8U, 12U or 22U 2-post wall-mount open frame rack. This makes it ideal for growing businesses that anticipate a requirement for additional rack space. The SRWO8U22 can be assembled as an 8U unit to meet current needs and expanded later to 12U or 22U to accommodate growth. All required parts to assemble the rack are included—there's no need to purchase additional hardware when it's time to expand!

Broad Compatibility

The SRWO8U22 is compatible with all standard 19-in. rack equipment that supports 2-post mounting. Its heavy-duty construction can accommodate up to 150 lb. of rack equipment to a maximum mounting depth of 18 inches.

Optimized for Secure Environments

The SRWO8U22 is an ideal solution for secure IT environments and other applications not requiring a lockable enclosure. It conserves valuable floor space, helps IT managers to better organize their equipment array, and simplifies access for equipment installation and servicing.

Tripp Lite SRWO8U22 Product Summary:

Expandable 2-post wall-mount open frame rack
Can be assembled as an 8U, 12U or 22U rack
Optimized to save space in secure environments
150-lb. load capacity
5-year warranty

What's in the Box

1 x 3mm L-Shaped Hex Key
2 x Top/Bottom Panel Frames
2 x Short Vertical Mounting Rails
2 x Long Vertical Mounting Rails
9 x M5 Button Head Cap Screws
24 x #12-24 Equipment Mounting Screws

[Expansion Kit—Packaged Separately]

1 x 3mm L-Shaped Hex Key
2 x Mounting Rail Tie Plates
9 x M5 Button Head Cap Screws
8 x Zip Ties

Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.

The SRWO8U22 SmartRack 8U/12U/22U Expandable Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open-Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure IT areas with limited floor space where a locked enclosure is not required. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling.

Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 68 kgs (150 lbs.) The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion.

The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.

Tech Specs

General

Product Type

Rack

Rack Type

Open frame

Rack Post Qty

2-post

Placing / Mounting

Wall mountable

Product Material

Steel

Height (Rack Units)

22U

Width

20.1 in

Depth

18.2 in

Color

Black powder coat

Manufacturer Warranty

Service & Support

Limited warranty - 5 years
