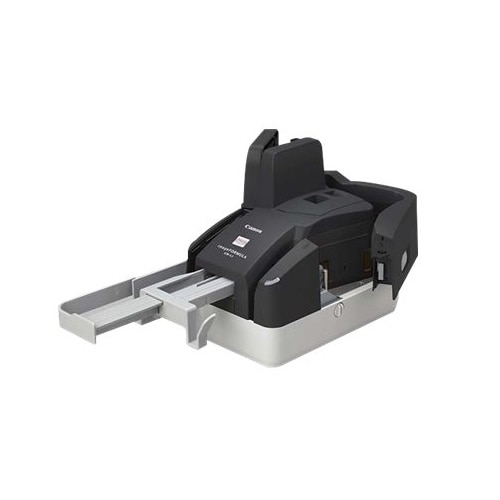

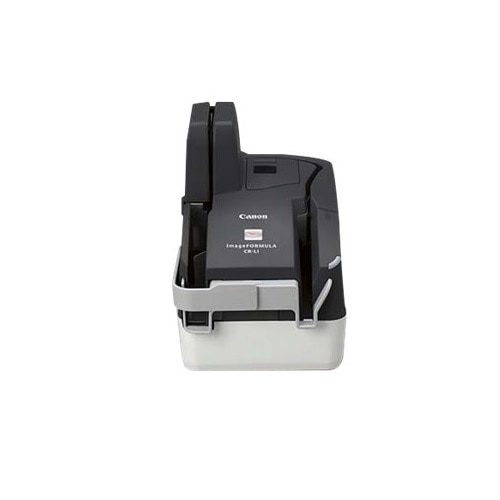

The Canon imageFORMULA CR-L1 compact check transport is an easy-to-use solution for high volume batch Remote Deposit Capture (RDC) and remote lockbox check processing. With high-quality image scanning, precise MICR accuracy plus reliable item handling, th... Show More
The Canon imageFORMULA CR-L1 compact check transport is an easy-to-use solution for high volume batch Remote Deposit Capture (RDC) and remote lockbox check processing. With high-quality image scanning, precise MICR accuracy plus reliable item handling, the CR-L1 check transport can help distributed check processing.
Convenient: Compact design, great for countertop / desktop use in areas with limited workspace
Reliably handles many different media types in batches or individually: Paper checks, money orders, coupons, pay stubs, payment vouchers, and other payment documents
Usage: Low-volume Remote Deposit Capture (RDC), in small businesses, merchants, remote offices, and other venues
Fast and efficient: Scans both sides of an item at the same time, in color, at up to 45 checks-per-minute, with a 50-item automatic feeder and separate 50-item eject pocket
High quality imaging: Magnetic Ink Character Recognition (MICR) and Optical Character Recognition (OCR) help reduce exception items due to nonconforming images
Both physical and virtual endorsement, and imprinter, capabilities included
Compliance: Meets ENERGY STAR guidelines
Backed by a one-year warranty and US-based technical support
Tech Specs
General
Type
Document scanner - desktop
Interface Type
USB 2.0
Max Supported Document Size
4.3 in x 9 in
Scanner
Input Type
Color
Grayscale Depth
8-bit (256 gray levels)
Optical Resolution
300 dpi
Automatic Duplexing
Yes
Scanning Sensor Type
Contact Image Sensor (CIS)
Lamp / Light Source Type
RGB LED
Max Document Scan Speed B/W
45 ppm
Max Document Scan Speed Color
20 ppm
Barcodes
CMC-7, OCR-A, OCR-B, MICR E-13B
Duty Cycle
3000 scans per day
Scanner Speed Details
45 ppm - black&white
20 ppm - color
Scanner Features
Error Diffusion, automatic page size detection, Deskew, Fine Text Filtering, Infrared Double Feed Detection
Media Handling
Max Document Size
4.3 in x 9 in
Supported Document Type
Check
Document Feeder Type
Automatic
Feeder Capacity
50 sheets
Expansion / Connectivity
Interfaces
USB 2.0 - Type B
Miscellaneous
Compliant Standards
RoHS, WEEE, Energy-Related Products (ErP) Lot 6
Environmental Standards
ENERGY STAR Certified
Yes
Power
Power Consumption Operational (Standby)
15.8 Watt
Power Consumption Sleep
2.3 Watt
Software / System Requirements
Software Included
Drivers & utilities, Canon Scanning Utility, Ranger driver with IQA
OS Required
Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits) SP1 or later, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits), Microsoft Windows Server 2016
Dimensions & Weight
Width
8.8 in
Depth
7.4 in
Height
5.5 in
Weight
4.63 lbs
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
