Precision 7520

windowsforbusiness
intel-core
The next industrial revolution is here. Technology won’t rule the world but it will power it. See How›

Power to match your genius.

Dell's most powerful 15" mobile Workstation with Intel® processors and a PremierColor UHD display. With up to 3TB of storage.



Precision 7520 Non-Touch Mobile Workstation



Operating System

Available with Windows 10 Pro - for a smooth, versatile PC experience.

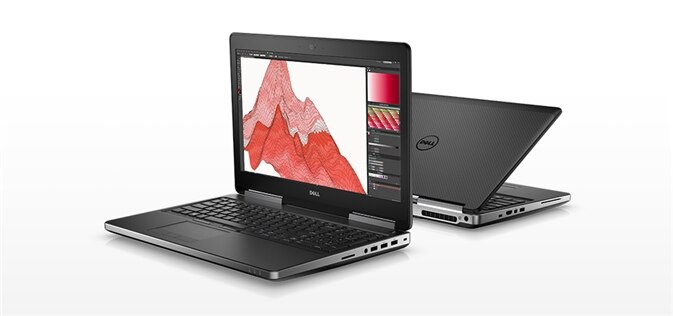

Precision 15 7520 - Premium design. Premium performance.

Premium design. Premium performance.

Operating System: Windows 10 Pro

High-powered processors: We know you take on the biggest tasks. So we offer the best processors available. The Precision 7520 mobile Workstation delivers no-holds-barred processing power with the blazing performance of 7th Generation Intel ® Core™ i5, i7 and Intel® Xeon® processors.

Genius in the details: A premium, innovative design delivers up to four impeccable display options up to Ultra HD with 100% Adobe RGB and 8 million pixels. With detail this vivid, you’ll see everything in crisp, glorious definition.

High-performance graphics: Next generation professional-grade 2xRadeon Pro™ WX and 2xNVIDIA Quadro® graphics options with up to 4GB of graphics memory. Super high-speed 2400Mhz and 2667MHz of DDR4 memory keep pace with demanding 3D rendering and other graphics-intensive tasks.

Enjoy a long life: You’ll get plenty of charge with the long lasting 91WHr battery.

Ultimate reliability: Tested, optimized and certified with professional software applications as well as more support options with industry leading resolution time.

Supports 8k display:
Dell Precision 7520 and 7720 mobile workstations are the first with DisplayPort 1.4, which supports 8K resolution and HDR via a single cable

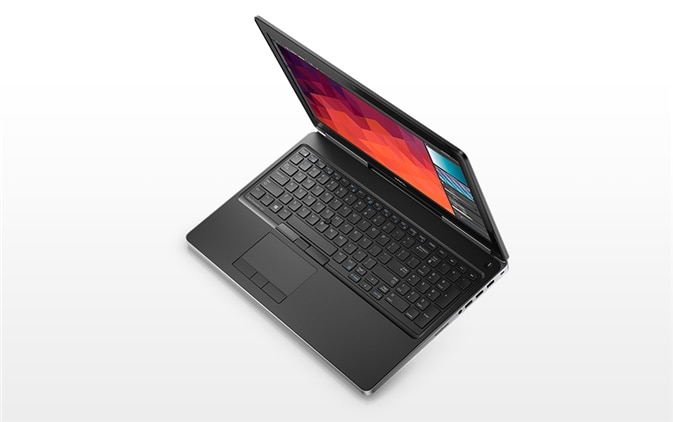

Precision 15 7520 - Superior comfort, speed and storage

Superior comfort, speed and storage

Stay cool
Dell’s patented 5th generation dual cooling fans provide a brilliant approach to thermal cooling, taking performance and comfort to levels never before seen on a task-intensive laptop. No matter how high-powered your project, your processing and graphical applications will work within turbo frequencies and your system will stay cool.

Room for all your big ideas
Solid state PCle NVMe storage gives you the space to easily store, transfer and access complex 3D, multimedia and video files quickly and reliably. And with up to 3TB of total system storage, you’ll have space for even the biggest projects.
Precision 15 7520 - Improve productivity with Dell Precision Optimizer

Improve productivity with Dell Precision Optimizer

Free with your Precision workstation, the Dell Precision Optimizer 4.0 takes the guesswork out of customizing settings and automatically adjusts them. The Dell Precision Optimizer automatically tunes your workstation to run the most popular Independent Software Vendor (ISV) applications at the fastest speeds possible for the fastest results. Featuring enterprise smart alerts for processor, storage, memory, and graphics utilization all in an elegant, new UI.
Precision 15 7520 - Innovative, durable design

Innovative, durable design

Strong materials: The brilliantly designed chassis is subjected to and passes MIL-STD 810G testing, ensuring durability and reliability for wherever your job takes you.

Enhanced docking: Make using your peripherals and displays easy with the Dell E Dock, or use the Dell Thunderbolt™ Dock for faster data transfers and support for up to four Full HD displays or 2 4K displays and five other peripheral devices.
Precision 15 7520 - Rigorously tested for optimal performance

Rigorously tested for optimal performance

Independent Software Vendor (ISV) certification: Precision Workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.

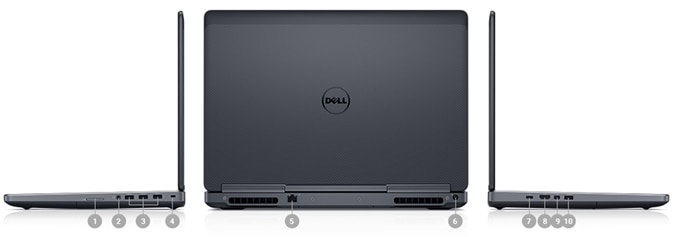

Precision 15 7520 - Ports & Slots

Ports & Slots

1. Memory card reader | 2. Headphone jack | 3. USB 3.0 with PowerShare | 4. Security lock| 5. RJ45 port | 6. Power adapter port | 7. Thunderbolt 3 type C port | 8. HDMI | 9. Mini display port connector | 10. USB 3.0 with PowerShare

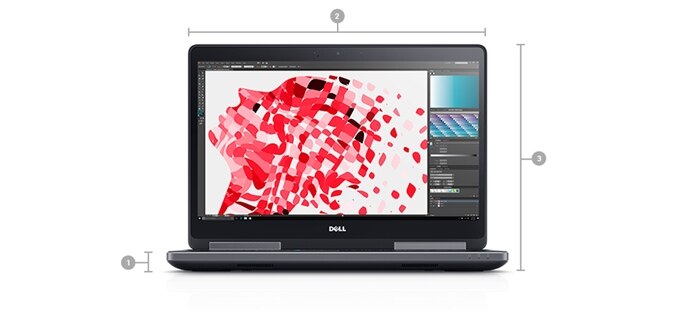

Precision 15 7520 - Dimensions & Weight

Dimensions & Weight (Non-Touch)

1. Height (front) : 27.76 mm (1.09") Height (rear) : 33 mm (1.3") | 2. Width: 378 mm (14.88") | 3. Depth: 261 mm (10.38")
Weight starts at : 2.8 kg (6.16 lbs)

We've got your business covered

ProSupport Plus

ProSupport Plus

Get anytime priority access to expert support with predictive analytics (via SupportAssist technology*) and damage protection for drops, spills, surges and more.
ProDeploy Plus

ProDeploy Plus

This comprehensive service provides seamless deployment of new technology. You get a single point of contact for project management including up-front planning, configuration, data migration and knowledge transfer.
Accidental Damage Service

Accidental Damage Service

Enjoy worry-free ownership and minimize downtime with protection from accidental drops, spills, surges and breakages. Coverage picks up where your previous warranty leaves off and is ideal for high-risk environments and mobile workforces.

Processor

  • Intel 7th Generations Processors
    Intel Core Xeon E3-1535M v6 Quad Core Xeon 3.10GHz, 4.20GHz Turbo, 8MB 45W
    Intel Core Xeon E3-1505M v6 Quad Core Xeon 3.00GHz, 4.00GHz Turbo, 8MB 45W
    Intel Core i7-7920HQ Quad Core 3.10GHz, 4.10GHz Turbo, 8MB 45W
    Intel Core i7-7820HQ Quad Core 2.90GHz, 3.90GHz Turbo, 8MB 45W
    Intel Core i7-7700HQ Quad Core 2.80GHz, 3.80GHz Turbo, 6MB 45W
    Intel Core i7-7440HQ Quad Core 2.80GHz, 3.80GHz Turbo, 6MB 45W
    Intel Core i5-7300HQ Quad Core 2.50GHz, 3.50GHz Turbo, 6MB 45W
    Intel 6th Generation Processors
    Intel Core Xeon E3-1575M v5 Quad Core Xeon 3.00GHz, 3.90GHz Turbo, 8MB 45W
    Intel Core Xeon E3-1545M v5 Quad Core Xeon 2.90GHz, 3.80GHz Turbo, 8MB 45W
    Intel Core i7-6920HQ Quad Core 2.90GHz, 3.80GHz Turbo, 8MB 45W
    Intel Core i7-6820HQ Quad Core 2.70GHz, 3.60GHz Turbo, 8MB 45W

Operating System ​ (Dell recommends Windows 10 Pro.)

  • Windows 10 Home 64-bit
    Windows 10 Pro 64-bit
    Windows 7 Professional (64-bit) (Includes Windows 10 Pro License)
    Windows 8.1 Pro (64-bit) (Includes Windows 10 Pro License)
    RHEL 7.3

Memory*

  • 64GB DDR4 NECC 2400MHz
    64GB DDR4 ECC DDR4 2400MHz
    32GB DDR4 2667MHz

Chipset

  • Intel Mobile CM238

Video Card

  • Radeon Pro WX 4130 with 2GB GDDR5 dedicated memory
    Radeon Pro WX 4150 with 4GB GDDR5 dedicated memory
    NVIDIA Quadro M1200 with 4GB GDDR5 dedicated memory
    NVIDIA Quadro M2200 with 4GB GDDR5 dedicated memory
    Intel® HD Graphics P580, 630

Hard Drive

  • Support for two storage devices: one M.2 PCIe solid state drive and one M.2 PCIe/2.5” SATA drive: Dell Fast Response Free Fall Sensor standard
    Hard Disk Drive (HDD): 2.5” 500GB, 1TB 7200RPM up to 2TB 2.5” 5400RPM SATA 6Gb/s
    Solid State Drive (SSD): 256GB, 512GB, 512GB SED, 1TB 2.5” SATA 6Gb/s
    M.2 PCIe NVMe Solid State Drive (M.2 SSD): 256GB, 512GB, 512GB SED, 1TB SSD

Security

  • Intel® Platform Trust Technology, Trusted Platform Module (TPM) 1.2/2.0, Chassis lock slot support
    Support for optional Computrace and Optional Contactless SmartCard Reader/Fingerprint Reader or FIPS Fingerprint Reader

Wireless

  • Wireless LAN & Bluetooth:
    Intel® 8265 Dual-Band 2x2 802.11 ac Bluetooth® 4.2,
    Dell DW1820 2x2 801.11ac + Bluetooth 4.2,
    Mobile Broadband & GPS:
    DW5811e (Gobi 4g/LTE – FMC)

Dimensions

  • Starting Height (front) : 27.76 mm (1.09") Height (rear) : 33 mm (1.3") | 378 mm (14.88”) | 261 mm (10.38”)
    Starting weight: 2.8 kg (6.16 lbs)

Ports

  • 1 SD Card Reader (SD, SDHC, SDXC, supporting up to 2TB)
    1 Thunderbolt® 3
    4 USB3.0 with PowerShare
    1 MDP
    1 HDMI
    1 Headphone and microphone combo jack
    1 SmartCard Reader
