Brocade High-Performance Gen 5 Fibre Channel Switches

intel® xeon™
Memorial Day Sale
Save up to $549 on PCs to keep your office connected. Shop Now

Gen 5 Fibre Channel performance

Optimize storage performance for increasing server virtualization density with Brocade® Gen 5 16 Gbps Fibre Channel rack and blade switches.

Call for Pricing



  • Supported Management Software
    HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools, Advanced Performance Monitoring, Brocade Fabric Watch; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; Command Line Interface (CLI); SMI-S compliant; Administrative Domains; trial licenses for add-on capabilities

    SSL, SSH v2, HTTPS, LDAP, RADIUS, Role-Based Access Control (RBAC), DH-CHAP (between switches and end devices), Port Binding, Switch Binding, Secure RPC, Secure Copy (SCP), Trusted Switch, IPSec, IP Filtering

    Management access
    In-band over Fibre Channel; serial port (RJ-45)

    D_Port offline diagnostics, including electrical/optical loopback, link traffic/latency/distance; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, port mirroring, optics health monitoring, power monitoring, RAStrace logging, and Rolling Reboot Detection (RRD)

Environmental Operating Conditions

  • Temperature
    Operating: 0°C to 40°C(32°F to 104°F)
    Non-operating: -20°C to 70°C(-4°F to 158°F)

    Operating: 10% to 90%, non-condensing at 29°C (84.2°F)
    Non-operating: 5% to 95%, non-condensing at 38°C (100.4 °F)

    Operating altitude
    Up to 3,048 m (10,000 ft)

    Storage altitude
    Up to 10,668km (35,000ft)

    Operating Shock
    20 G for 6 ms

    Non-operating Shock
    50 G with a velocity change of 4216 mm/sec squared

    Operating: 0.4G at 5 Hz to 500 Hz for 60 minutes
    Non-operating: 0.5G at 2 Hz to 200 Hz for 15 minutes


  • DC Input
    12V and 3.3V from chassis

    Power consumption
    32W (normal) to 39W (maximum)


  • Size
    Width: 272.75 mm (10.74 in)
    Height: 272.75 mm (10.74 in)
    Depth: 307.24 mm (12.09 in)

    System Weight
    2.10 kg (4.65 pounds) without media
                    Legend: S — Standard, OA — Option Available, N — Not Available
Performance Brocade M6505Brocade 6505 Brocade 6510 Brocade 6520
Fibre Channel: Autosensing of 2, 4, 8 and 16 Gbps port speeds; and optionally programmable to fixed port speed SS S
Maximum frame size: 2112 byte payload SS S  S
Power Brocade M6505 Brocade 6505 Brocade 6510  Brocade 6520
AC input 85V to 264V ~ 5A to 2.5A 85V to 264V ~ 5A to 2.5A85V to 264V ~5A to 2.5A
DC input 12V and 3.3V FOM chassis N N
Input line frequency N  47Hz to 63Hz 47Hz to 63Hz47Hz to 63Hz
Power supply (Dual, hot-swappable redundant power supplies with integrated system cooling fans) N OAS
Power consumption 30W to 40W 60W to 80W  72W to 110W450W with all 96 ports with 16 Gbps SWL optics
Management Brocade M6505  Brocade 6505  Brocade 6510 Brocade 6520
SSH v2, HTTP/HTTPS, SNMP v1/v3, Telnet; SNMP; WEBTOOLS, Brocade Network Advisor (BNA), SMI-S, RADIUS, LDAP S S  S
Access: 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45) and one USB port S S S
Port mirroring provides the capability of mirroring four source ports to improve network traffic monitoring and troubleshooting S  S  S S
Chassis Brocade M6505 Brocade 6505 Brocade 6510Brocade 6520
Dimensions (H x W x D) 272.75 x 272.75 x 307.24 mm (10.74 x 10.74 x 12.09 in.) 43.18 x 437.64 x 443.23 mm (1.7 x 17.23 x 17.45 in.)43 x 438 x 443 mm (1.7 x 17.23 x 17.45 in.)86.74 x 429.25 x 609.75 mm
(16.90 x 3.42 x 24.01 in.)
Unit weight (refer to data sheet for detailed information): 2.10 kg (4.65 lb)  9.16 kg (20.19 lb) 9.16 kg (20.19 lb) 16.92 kg (37.3 lb)
Form factor Blade for M1000e chassisRack-mount fixed form factor Rack-mount fixed form factor Rack-mount fixed form factor
Environmental Brocade M6505  Brocade 6505 Brocade 6510Brocade 6520
Operating temperature: 0ºC to 40ºC (32ºF to 104ºF)  0ºC to 40ºC (32ºF to 104ºF) 0ºC to 40ºC (32ºF to 104ºF)0º C to 40º C (32º F to 104º F)
Nonoperating temperature:-20ºC to 70ºC (-4ºF to 158ºF) -25ºC to 70ºC (-13ºF to 158ºF)  -25ºC to 70ºC (-13ºF to 158ºF) -25ºC to 70ºC (-13ºF to 158ºF)
Operating altitude:Up to 3,048 m (10,000 ft) Up to 3,000 m (9,843 ft) Up to 3,000 m (9,843 ft) Up to 3,000 m (9,843 ft)
Storage altitude:Up to 10.668 km (35,000 ft) Up to 12 km (39,370 ft) Up to 12 km (39,370 ft)  Up to 12 km (39,370 ft)
Operating relative humidity: 10% to 90% noncondensing 10% to 85% noncondensing 10% to 85% noncondensing10% to 85% noncondensing
Nonoperating relative humidity:5% to 95% noncondensing 10% to 90% noncondensing 10% to 90% noncondensing 10% to 90% noncondensing
Port AttributesBrocade M6505 Brocade 6505 Brocade 6510 Brocade 6520
Fibre Channel ports24 24,36,48 48,72, 96
Classes of ServiceBrocade M6505 Brocade 6505 Brocade 6510 Brocade 6520
Class 2, Class 3, Class F (inter-switch frames) S
ISL TrunkingBrocade M6505 Brocade 6505 Brocade 6510 Brocade 6520
Up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. There is no limit to how many trunk groups can be configured in the switch S S
DiagnosticsBrocade M6505 Brocade 6505  Brocade 6510Brocade 6520
POST and embedded online/offline diagnostics including FCPing, Pathinfo (FCTraceroute), Forward Error Correction (FEC), etc. Diagnostic Port (D-Port) S


Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Build a network that adapts to your business
Build a network that adapts to your business
Design your data center to incorporate a cloud-optimized SAN. The flexible, high-performance storage network helps provide the scalability and reliability required to support highly virtualized and cloud-based environments.
Find Out More

Rely on a network that keeps running, no matter what
Help ensure uninterrupted operations using innovative business-continuity solutions with field-demonstrated reliability.
Find Out More

Manage your network simply and efficiently
Dell™ offers the essential tools and technologies to simplify management and reduce infrastructure complexity.
Find Out More

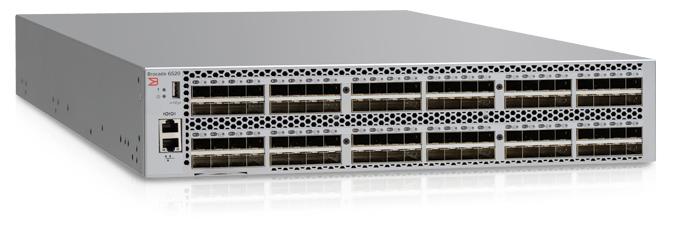

Brocade 6520 Gen 5 Fibre Channel Switch

Unleash the full potential of your virtualization and cloud infrastructures with a Brocade 6520 Gen 5 Fibre Channel 16 Gbps switch from Dell. Optimize link and bandwidth virtualization with Brocade ISL Trunking and Dynamic Path Selection (DPS) and scale as necessary with “pay as you grow” Ports on Demand (PoD) flexibility from 48–96 ports.

Streamline your SAN
Streamline your SAN
Relieve data center complexity and help reduce SAN operating costs with M6505 blade switches.
Find Out More

Strengthen data center connectivity
Rely on the outstanding performance and flexibility of a Brocade M6505 16 Gbps end-to-end solution from Dell for highly virtualized and cloud-based environments.
Find Out More

Grow your business on your terms
Help increase business agility and adapt to evolving storage requirements with the M6505’s “pay-as-you-grow” scalability.
Find Out More
Global services and support
Global services and support
Dell™ Services can help reduce IT complexity, lower costs and eliminate inefficiencies by making IT and business solutions work harder for you. The Dell Services team delivers distinctive capabilities, including Brocade Global Services, world-class professional services, technical support and education for designing, implementing and managing high-performance, resilient network infrastructures.

Dell takes a holistic view of your needs and designs solutions for your environment and business objectives, and uses established delivery methods, local talent and in-depth domain knowledge to help lower your total cost of ownership.
Brocade 6520 Networking
Brocade 6520 Gen 5 Fibre Channel switch
Experience unmatched performance with pay-as-you-grow flexibility from 48–96 ports and speeds up to 16 Gbps across virtualized and cloud-based architectures.
Brocade M6505 Networking
Brocade M6505 blade switch
Help improve IT flexibility and enhance data center reliability with the Brocade M6505 blade switch, offering 16 Gbps connectivity for Dell PowerEdge M1000e Modular Blade Enclosures.

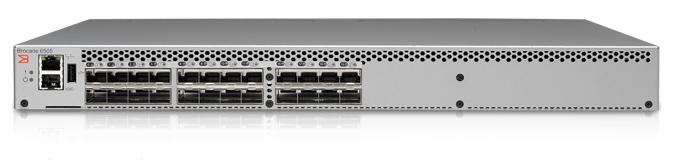

Brocade 6505 Networking
