Your gateway to improved business.
The Edge Gateway 5000 Series for the Internet of Things (IoT) offers cost-effective security and manageability tools for operations professionals.
A foundation of security
Protection is built in: Our hardware features help protect your network edge and sensors from cyberattack, including a secure boot and BIOS-level control.
Keep your guard up, costs down: Minimizes network cost while aggregating and securing IoT data at the edge of the network, and performs local analytics and real-time actions where network latency is a problem.
Your personal security team: Dell brings IT security to operations with encrypted data from less capable endpoints, and privacy and data security best practices to the cloud and datacenter
Keep your guard up, costs down: Minimizes network cost while aggregating and securing IoT data at the edge of the network, and performs local analytics and real-time actions where network latency is a problem.
Your personal security team: Dell brings IT security to operations with encrypted data from less capable endpoints, and privacy and data security best practices to the cloud and datacenter
Innovative design
Industrial strength: Rugged enough for factory floors or outdoor HVAC systems, suited to wall or DIN rail mounting, and designed for 24x7 long-term operation, with expanded temperature ranges.
Form, function, flexibility: Diverse and expandable input/output connections and solutions from certified software partners help to aggregate, track, normalize and relay data from virtually any sensor and network protocol.
Built to your specs: End-to-end Dell solutions, and our certified software program and system integrators, provide industry-specific expertise, plus flexibility for customers to construct an IoT ecosystem that meets their unique business needs and requirements.

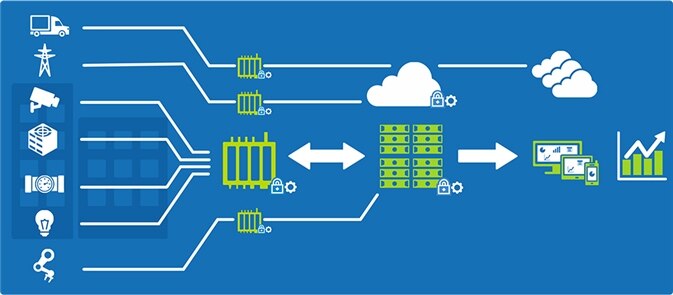

Bring analytics to the network edge
Dell’s intelligent gateway sits near the devices and systems in distributed IoT networks. Meaningful data is sent to the cloud or data center to enrich the analytics, control and smart systems.
Ports and slots
1.RS-232 | 2.(2) RS-485 | 3.RS-422/485 combo | 4.USB 2.0 | 5.USB 3.0 | 6.(2)
RJ-45 Gigabit Ethernet | 7. HDMI port
Dimensions and weight
Height: 8.5" (216 mm)| Width: 9" (229 mm)| Depth: 2.5" (64 mm)
Weight: Starting at 3.0kg
Weight: Starting at 3.0kg
Power Module
Get supplementary power for a PCIe card and provide space for potential future modules. Regulate external power sources for smooth, uninterrupted service.
I/O Expansion
Prepare for expansion with two additional USB ports, a serial port and GPIO, so you’re ready to connect future models and manage cables easily. Requires additional power module.
Rugged Enclosure
This lockable hardened enclosure protects from dust, oil and weather elements, and the chassis intrusion switch will send an alert in case of unauthorized access.
Mesh Networking Adapter
Discover a cost-effective yet reliable wireless technology for mesh networks such as ZigBee and other low-battery situations.
CANBus Card
Created to allow access to Controller Area Network protocols, this card series drastically reduces the chance of data loss and ensures system reliability.
We’ve got your Edge Gateway covered
Dell ProSupport
Choose Dell ProSupport for 24x7 direct access to in-region engineers for advanced hardware and OS support. Comes with Onsite or Advanced Exchange.
Dell Deployment Services
Deployment services ensure your Edge Gateway is configured accurately and quickly by our highly skilled experts.
Configuration and Flexible Branding
Dell Edge Gateways are OEM-ready, so talk to us about flexible branding options. With our Configuration Service, we can also configure PCs to your specifications, including custom BIOS settings and installation of your software image prior to shipping to your site. Some options, such as memory and operating systems, change for OEM-ready.
Product Type
- Dell Edge Gateway Model 5000
Processor
- Intel® Atom™ E3825 – 1.33GHz | 2 cores.
Intel® Atom™ E3827 – 1.75GHz | 2 cores
Operating System
- Factory options:
Ubuntu Snappy Core and Wind River Linux.
Memory*
- 2G (4x256Mx16 DDR3L0 – 1067MHz.
4G (8x 256Mx16 DDR3L) – 1333MHz.
8G (8x 512Mx16 DDR3L) – 1333MHz.
Chassis
- Industrial-grade chassis, available with wall mounts or DIN-rail brackets.
Dimensions & Weight
- 229 mm wide x 216 mm high x 64 mm deep (9 in x 8.5 in x 2.5 in).
Weight: Starting at 3.0 Kg
Environmental
- Commercial unit:
Operating temperature 0°C to 50°C;
Relative humidity 5% to 95% non-condensing.
USB Port
- 2 USB2.
1 USB3.
Form Factor
- Solid-state drive options (m.2 form factor): 32 GB or 64 GB options.
Fanless design.
Optimized for wall and DIN-rail mounting.
I/O Expansion Slots
- Native :
Dual Independent Gigabit Ethernet (RJ-45).
USB:
2 USB2.
1 USB3.
Serial Interfaces:
1 RS-232.
2 RS-485.
1 RS-422/485.
1 HDMI port.
Wireless
- Optional:
802.11n Wifi +Bluetooth Low Energy;
WWAN (3G or LTE).
Mobile broadband 3G/LTE.
Software
- WindRiver®: Helix™ Device Cloud. Snappy Ubuntu. Your choice of Dell Edge Device Manager (EDM) or Dell Client Command Suite to enable your choice of third-party on-premise management console such as Microsoft System Center.
Security
- Trusted Platform Module (TPM) v1.2 to securely store artifacts (including passwords, certificates, or encryption keys) used to authenticate the gateway.
Services and Support
- Optional IoT advisory consulting, configuration and applications development services. Custom factory integration service.
Power
- Nominal input 24V AC/DC (18 – 26.4V), 4.0 Amps.
Also accepts standard Dell notebook AC adapter, 65W, 7.4mm plug.
Warranty
- Commercial services vary. 1-year Limited hardware warranty with mail-in service; ProSupport with on-site service after remote diagnosis: 1, 3 or 5 years.
Chassis
- Industrial-grade chassis, available with wall mounts or DIN-rail brackets.
