Inspiron 5502 laptop display Is black, keyboard is backlit and I hear the Windows chime after putting back all the components together

Hi

Dunno.

It is possible that a function key for outputting the video is pressed/trapped, it is possible the brightness is not there and the screen is dimmmed out.

F6 fn + F6 Decrease brightness
F7 fn + F7 Increase brightness
F8 fn + F8 Switch to external display

So if you could attach a monitor and try that, increase the brightness, double check the BIOS settings.  Consider an alternate OS, like LIVE LINUX Mint.

NOW what follows is either an overkill or ver' ver' silly...........

Short answer: Yes — you can run an Inspiron 5502 headless and you can also attach an external display; choice of method depends on whether you want the laptop powered on with its lid closed, to operate it purely over the network (SSH / remote desktop), or to drive one or more external monitors via the built‑in HDMI/USB-C video outputs.

Recommended approaches

Headless (no local display) for remote administration: enable the laptop to boot with the lid closed, keep it powered, and expose one or more remote access services (SSH for Linux, RDP / VNC / Remote Desktop / AnyDesk for Windows). Dell’s setup docs note the Inspiron 5502 hardware and ports so you can pick the correct adapter for remote display or console access.

External-only display (use an external monitor and keep internal screen off): connect a monitor to the HDMI port or the USB-C port (which on this model supports video out) and use Windows Display settings or the projection hotkey (Win+P) to choose “Second screen only” or “Extend”. Dell docs and support posts confirm the USB-C on recent Inspiron 15 5000 models supports DisplayPort/HDMI adapters and that HDMI is available for direct connection.

Practical step-by-step: headless (Windows 11)

Prepare Windows for remote access: enable Remote Desktop (Settings > System > Remote Desktop) or install a remote support tool (AnyDesk, TeamViewer). If you prefer command line/admin, enable OpenSSH Server in Optional Features.

Power and lid behaviour: in Power & sleep > Additional power settings > Choose what closing the lid does, set “When I close the lid” to “Do nothing” for both On battery and Plugged in so closing the lid won’t suspend. Ensure sleep/hibernate are disabled or set to desired values so the machine stays accessible.

Network and firewall: set a static IP or reserve a DHCP lease on your router, and create firewall rules to allow your chosen remote access port (RDP TCP 3389, SSH TCP 22, or the port your remote tool uses). Use strong passwords and, for internet access, a VPN or port forwarding with strict controls.

GPU/power considerations: if you plan to run GPU-accelerated workloads headless, test that drivers stay functional with lid closed; some laptops disable discrete GPU or change power profiles when no internal display is present — test under your workload. Dell service/setup docs list GPU options for the 5502 to help you check driver compatibility.

Practical step-by-step: headless (Ubuntu/Linux)

Install and enable SSH: install openssh-server and set a strong key-based login; optionally install x11vnc or a Wayland-compatible remote desktop if you need a graphical session.

Prevent suspend on lid close: configure logind (edit /etc/systemd/logind.conf — set HandleLidSwitch=ignore) and then systemctl restart systemd-logind. Confirm BIOS/UEFI doesn’t force suspend on lid close. Dell service manual lists system setup options if you need to change BIOS settings.

GPU & display server: if you need a virtual display for GUI apps, use Xvfb, Xdummy, or a headless compositor (e.g., weston/headless or virtual GL) or configure a lightweight desktop that can run without an attached monitor. Test GPU drivers if you need hardware acceleration.

Practical step-by-step: external display only

Identify ports: Inspiron 5502 commonly has one HDMI output and a USB-C that supports DisplayPort alt‑mode (video out). Check your exact spec in Dell’s Setup & Specifications.

Cable/adapter: use HDMI→HDMI for the simplest connection, or USB-C→DisplayPort / USB-C→HDMI for USB-C monitors or docks (USB-C docking displays may also provide power delivery). Dell forum responses recommend USB-C→DisplayPort for best results if monitor supports it.

Configure displays: connect, power the monitor, press Win+P (or Fn key shown on keyboard) to select Duplicate/Extend/Second screen only, or open Settings > System > Display to position and scale displays. Dell support pages show the Windows steps for configuring multiple monitors.

Lid closed with external monitor: set “When I close the lid” to “Do nothing” and confirm your external monitor becomes primary (if you want internal screen off choose “Second screen only” in Win+P).

Notes and troubleshooting

If the USB-C port doesn’t provide video (some retail configurations vary), use HDMI or a USB-C dock that explicitly lists DisplayPort Alt Mode support; check your Inspiron’s exact spec page.

If the laptop still sleeps when the lid is closed, check Windows power plan advanced settings and BIOS/UEFI system setup options; Dell Service Manual shows how to access those options.

Linux: if you lose GPU acceleration when headless or the system detects a display change, create a virtual display device (Xvfb or a dummy EDID) or force a display mode in Xorg to keep GPU present. Dell’s Ubuntu guidance may help for distribution-specific steps.

For accessibility or vision-impaired use (you mentioned assistive tech): if headless but you use the machine locally through a remote client, ensure your remote desktop supports high-contrast themes and screen-reader passthrough (some tools allow screen reader profiles). Dell docs describe Windows accessibility settings under Display and Ease of Access which still apply when using external screens.

Quick decision guide

Want full physical external monitor experience and GPU available: use HDMI or USB-C→DP and set “Second screen only.”

Want true headless server/remote admin: configure lid-close behaviour, enable SSH/RDP, and keep the machine on with network access; consider Xvfb or virtual displays for GUI apps.

Want docking/USB hub plus video and power over one cable: pick a monitor or dock that supports USB-C PD and DisplayPort alt-mode. Dell forum posts show this is supported on Inspiron 15 5000 series variants.

Hold the D key through powerup.  That will initiate an LCD self-test that should flash patterns and alternating solid colors.  Does that work (it is independent of the display cable connection to the mainboard)?

@ejn63​ unfortunately, it did not work. the display remained black. (please see results from other suggestions above)

@anne_droid​ I dont understand what you wrote there. However I did connect the laptop to an external monitor and closed the lid and the external monitor shows the content just fine. In fact I am typing this on the laptop using an external monitor.

@ejn63​ I did connect the laptop to an external monitor and closed the lid and the external monitor shows the content just fine. But the laptop display remains black. In fact I am typing this on the laptop using an external monitor. But the laptop display remains black.

Double-check the LCD power connection -- if it seems OK, it sounds like you likely shorted out the backlight in the disassembly or reassembly process, meaning you'll need a display replacement.  Check ALL the pins on the mainboard and on the cable itself.

Hi

So, test the F8 function key to switch between external monitor and laptop screen.

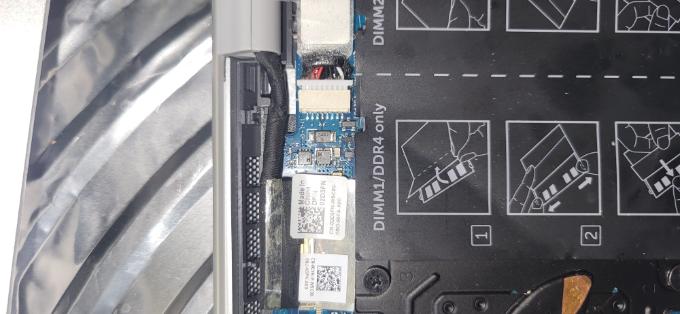

@ejn63​ Thank you for your reply. What is the LCD power connection? Is it different from the thick black cable with the tape on top that is in the picture?

I wonder if the Dell diagnostics that is loaded on the laptop will be able to say for sure what is wrong. Since I have it connected to an external monitor.

@anne_droid​ I pressed f8 and it does not toggle to the laptop screen. The login remains on the external monitor.

Hi

Double check that the F8 button is not pressed/shorted out due to the rebuild.

@goodnewsforyou​

It should be just that cable and connector that supplies power to the display.  If the system did not detect the display at all, you'd likely see an LED flash pattern and the system would not POST.

Use a bright flashlight to examine the display when the system is powered on -- is there even a faint image on the screen?

If there is, it sounds like the backlight is the issue - which could be an internal power fault, but could even more probably mean the power supply to the backlight (i.e., on the mainboard) is the issue.

If there is no image at all, even faint -- it sounds like the display itself needs to be replaced.  Examine both cable and connector with a magnifying glass to look for bent, crushed or damaged pins.

@ejn63​

While connected to the external monitor and the AC charger, I restarted the laptop and pressed the f12 key and went into the diagnostics mode and here's what it said - check the LCD cable. It also provided an error code which is seen in the screenshot. I will try and do it as you suggested in your post above

<To protect you, your private information was removed from public view. All private data was saved to your private Case. DELL-Admin>

@anne_droid​ I checked the f8 button and it is not pressed out. By the way, From your username and your earlier reply about using Linux to connect headless, I was wondering if you are a bot.

Nowadays you can never be sure who is real and who is AI online 😃

@goodnewsforyou​

If the diagnostics don't detect the screen, either the cable isn't properly seated, or there's damage to the cable or the pins on the system board.
