24U Rack Enclosure
Dell Data Center Infrastructure (DCI) simplifies and manages critical infrastructure in and around the data center serving the needs of your business.
Click to Chat now
with specific sales questions
Order Code 24urack
-
Base
Dell 24U Rack Enclosure 600x1070mm, front & rear locking doors -
Regulatory
Click to Chat now
with specific sales questions
Order Code 24urack
42U Rack Enclosure
Dell Data Center Infrastructure (DCI) simplifies and manages critical infrastructure in and around the data center serving the needs of your business.
Click to Chat now
with specific sales questions
Order Code 42urack
-
Base
Dell 42U Rack Enclosure 600x1070mm, front & rear locking doors -
Regulatory
Click to Chat now
with specific sales questions
Order Code 42urack
Tech Specs & Customisation
Question? Click to Chat or Call 1800-812-392
Chassis
Rack height:
Dell NetShelter SX 42U Rack Enclosure - AR3100X717: 42U
Dell NetShelter SX 24U Rack Enclosure - AR3104X717: 24U
Height:
Dell NetShelter SX 42U Rack Enclosure - AR3100X717: 78 in (1991 mm)
Dell NetShelter SX 24U Rack Enclosure - AR3104X717: 47 in (1198 mm)
Width:
24 in (600 mm)
Depth:
42 in (1070 mm)
Net weight:
Dell NetShelter SX 42U Rack Enclosure - AR3100X717: 275.2 lbs (124 kg)
Dell NetShelter SX 24U Rack Enclosure - AR3104X717: 196 lbs (88 kg)
Weight capacity (static load):
3000 lbs (1360 kg)
Weight capacity (dynamic load):
2250 lbs (1020 kg)
Minimum mounting depth:
Dell NetShelter SX 42U Rack Enclosure - AR3100X717: 7.5 in (191 mm)
Dell NetShelter SX 24U Rack Enclosure - AR3104X717: 7.52 in (191 mm)
Maximum mounting depth:
36.02 in (915 mm)
Product Details
Scalable and easy to use
Provide a solid framework for your IT infrastructure with Dell Netshelter SX rack enclosures featuring the next-generation designs of APC™ by Schneider Electric™.
Available in 42U and 24U sizes, Dell Netshelter SX racks are optimized for cooling, power distribution, cable management and environmental monitoring and offer exceptional usability with integrated features:
• Toolless cable-access roof: Includes eight large cable-entry slots and integrates with overhead cable trough and partition system
• Secure side panels: Lockable half-height panels provide security and safe, easy handling
• Easy-to-adjust mounting rails: Built with a simple turn-bolt design, automatic rail alignment and adjustability in 1/4-inch increments
• Convenient rear cable channels: Supports toolless mounting for power distribution units (PDU) and toolless vertical mounting for cable organizers
Grow with our portfolio
Whether you’re supporting a single server or an entire data center, Dell has you covered with our new Data Center Infrastructure (DCI) portfolio. The DCI lineup offers multiple support options* and offers a range of products that complement our rack enclosures, including PDU, uninterrupted power supply (UPS), keyboard, video, mouse (KVM), and keyboard, monitor, mouse (KMM) products.

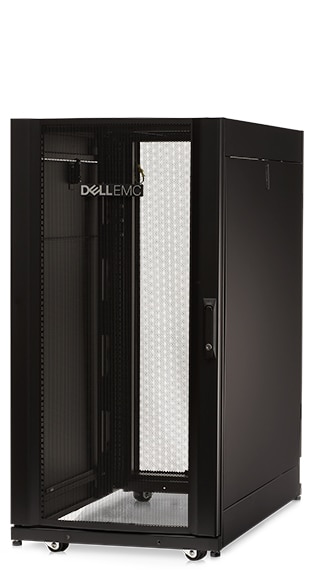

Dell Netshelter SX 42U Rack Enclosure
Install your IT equipment in a next-generation Dell Netshelter SX rack enclosure featuring:
- Standard 42U size ideal for a wide range of settings
- Optimal cable support with a toolless cable-access roof and rear cable channels
- Convenient features including lockable side panels and easily adjustable mounting rails
Dell Netshelter SX 24U Rack Enclosure
Install your IT equipment in a next-generation Dell Netshelter SX rack enclosure featuring:
- Short 24U size ideal for branch offices, tighter spaces and lower density requirements
- Optimal cable support with a toolless cable-access roof and rear cable channels
- Convenient features including lockable side panels and easily adjustable mounting rails
Dell Technologies offers complete end-to-end services
Optimizing the IT lifecycle is vital. We have expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.
ProSupport Enterprise Suite
Gain the freedom to focus on your business transformation with the support expertise and insights Dell Technologies is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and service account management.
ProDeploy
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations. Our complete suite of deployment services and professional certifications helps you achieve business outcomes today and tomorrow.
Training & Certification
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.
Consulting
Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.
Financing and leasing
Acquiring the latest IT solutions shouldn’t be as complicated as running your business. With Dell Financial Services you can finance and purchase in the same place*. It’s quick, it’s easy and most important, it lets you keep the “flow” in your cash flow.
