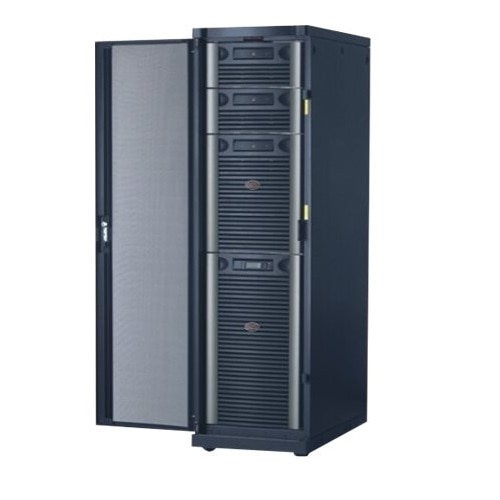

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS

Name: APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS
Brand: APC
SKU: a7433255

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

CAD $21,381.99

Add to Cart

Manufacturer part SYA8K16RMP | Dell part A7433255 | Order Code a7433255 | American Power Conversion

Compare Compare

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Shop Similar Products

Tech Specs

Technical Information

Plug/Connector Type

Hard Wire 4-wire

Receptacle Type

Hard Wire 4-wire (2PH+N+G)
NEMA L14-30R
NEMA L5-20R

Receptacle Detail

1 x Hard Wire 4-wire (2PH+N+G)
4 x NEMA L14-30R
8 x NEMA L5-20R

Number of Battery & Surge Outlets

Overload Protection

Yes

Power Description

Load Capacity (VA)

8 kVA

Input Voltage

208 V AC

Output Voltage

120 V AC
208 V AC

Input Frequency

65 Hz

Output Frequency

60 Hz

Input Current

37 A

Waveform Type

Sine Wave

Management

Network Management

SNMP Manageable

Bypass Switch

Automatic
External (Optional)
Manual

Emergency Power OFF

Yes

Interfaces/Ports

Modular Slots

1 x SmartSlot

Battery Information

Battery Characteristics

Spill-proof/Maintenance-free

Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

5.90 Minute

Backup/Run Time (Half Load)

17 Minute

Typical Battery Recharge Time

3 Hour

Environmental Conditions

Maximum Operating Temperature

104^°F (40^°C)

Thermal Dissipation

4995 BTU/h

Physical Characteristics

Color Family

Dual Color

Product Color

Black
Silver

Form Factor

Rack-mountable

Rack Height

19U

Mounting Location

Front

Mounting Preference

Lower

Height

32.91" (836 mm)

Width

18.58" (472 mm)

Depth

27.09" (688 mm)

Weight (Approximate)

437.93 lb (198641.71 g)

Miscellaneous

Package Contents

Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS

CD with software

Documentation CD

Installation guide

Rack mounting support rails

User manual

Web/SNMP management card

Additional Information

Automatic restart of loads after UPS shutdown
Audible and visible alarms prioritized by severity
InfraStruXure Manager Compatible
Plug-and-Play external batteries
Configurable for 120/208 or 120/240 output voltage

Certifications & Standards

CSA

Green Premium

Yes

Optimized Energy Efficiency

Yes

Product Take Back Program

Yes

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

REACH free of SVHC

WEEE Statement

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

For Country/Region

United States

Warranty

Limited Warranty

2 Year

Additional Warranty Information

2 years repair or replace

General Information

Manufacturer

Schneider Electric SA

Manufacturer Part Number

SYA8K16RMP

Brand Name

APC by Schneider Electric

Product Line

Symmetra

Product Series

Product Name

Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS

Product Type

Double Conversion Online UPS

Marketing Information

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
