Broadcom 5719 Quad port 1GBE Mezz Card for M-Series Blades, Customer Kit

Name: Broadcom 5719 Quad port 1GBE Mezz Card for M-Series Blades, Customer Kit
Brand: Dell
SKU: 430-4729

CAD $286.79

Add to Cart

Manufacturer part 272HK | Dell part 430-4729 | Order Code 430-4729 | Dell

Compare Compare



Functions / Device Type

Network adapter - 4 ports

⊞

Additional Features

Wake on LAN (WOL)



Interfaces

4 x network

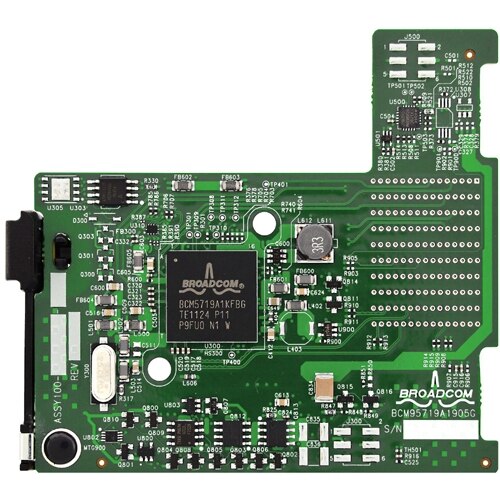

The Broadcom® BCM95719A1905G from Dell TM is a quad-port Gigabit SerDes x4 PCI Express® (PCIeTM) network interface mezzanine card that supports the 1000BASE-X standard. The card supports offload technologies including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and Receive Side Scaling (RSS) that deliver optimal network throughput, lower host processor utilization and, as a result, improve overall system performance. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

Features x4 PCI Express v2.1 at 5 GT/s or 2.5 GT/s
Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations
Contains MSI and MSI-X capabilities - up to 17 MSI-X vectors
Provides I/O virtualization support for VMWare NetQueue and Microsoft VMQ - 17 receive queues and 16 transmit queues - 17 MSI-X vectors Supporting per queue interrupt to host
Wake-on-LAN (WOL) support that complies with ACPI requirements

Tech Specs

General

Device Type

Network adapter - 4 ports

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express x4

Networking

Connectivity Technology

Wired

Data Link Protocol

GigE

Data Transfer Rate

1 Gbps

Features

Wake on LAN (WOL)

Expansion / Connectivity

Interfaces

4 x network

Compatible Slots

1 x PCI Express x4

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C
