CAD $1,367.00
Manufacturer part PR1500RT2UN | Dell part AA717027 | Order Code aa717027 | CyberPower Systems
.png)
Workstations
Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.
Telecom/VoIP
Keep your communication lines open and running during power outages.
Corporate & Department Servers
Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Product Q&A
How long will the UPS power my systems after the power goes out?
This system is estimated to run for 18.2 minutes at half load, 6.5 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can the battery capacity be expanded?
No, PR15000RT2UN does not support an extended battery module.
Can the PR1500RT2UN be monitored?
Yes, the PR1500RT2UN comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Can this unit run a sump pump, laser printer, or other larger office equipment?
We do not recommend using the PR1500RT2UN to power sump pumps, laser printers, paper shredders, copiers, space heaters or other large electrical devices. The power demands of these devices may overload the unit, cause damage, and void the warranty.
How do I mute the alarms?
The audible alarm can be set to Mute on Battery. This is accomplished by going to the basic set up via the LCD Screen, navigate to audible alarm and then set to Mute on Battery.
.jpg)
.jpg)

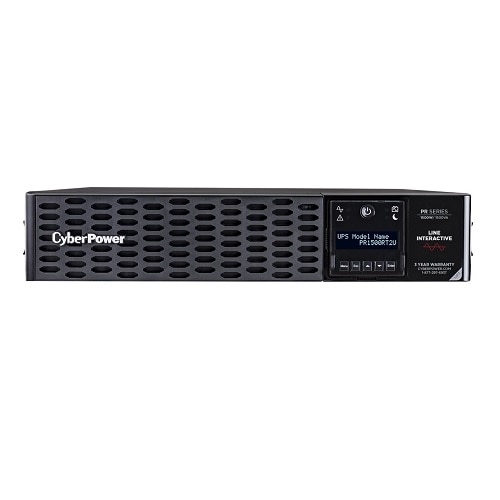

The PR1500RT2UN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR1500RT2UN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RT2UN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model includes pre-installed remote management card RMCARD205, which provides remote management and configuration of the UPS via a standard web browser or network management system.
Tech Specs
General
Device Type
UPS - active Power Factor Correction (PFC) - rack-mountable / externalHeight (Rack Units)
2UColour
BlackPower Device
UPS Technology
Line interactiveInput Voltage
AC 100-125 VInput Voltage Range
AC 75 - 149 VInput Voltage Range (Adjustable)
AC 70 - 155 VFrequency Provided
50/60 Hz ± 1%Frequency Required
47 - 63 HzInput Connectors
1 x power NEMA 5-15PPower Output Connectors Details
8 x power NEMA 5-15ROutput Voltage
AC 100/110/120/125 V + 5% / - 5% - 50/60 HzPower Capacity
1500 Watt / 1500 VADataline Surge Protection
Network - RJ-45 - 1 input line / 1 output lineOutput Waveform
SinewaveSurge Suppression
YesSurge Energy Rating
2430 JoulesCircuit Protection
Circuit breakerPower Factor (PF)
1.0Battery
Quantity
4Technology
Lead AcidVoltage Provided
12 VCapacity
9 AhRun Time (Up To)
- 6.5 min at full load
- 18.2 min at half load
Recharge Time
3 hoursTransfer Time
4 msFeatures
SealedNetworking
Remote Management Interface
Ethernet 10/100, RS-232, USBRemote Management Protocol
SNMP 1, SNMP 3, HTTP, HTTPS, SSH, CLI, SMTP, NTPExpansion / Connectivity
Interfaces
- 1 x management (RS-232) - 9 pin D-Sub (DB-9)
- 1 x management (USB) - 4 pin USB Type B
- 1 x EPO (emergency power off)
- 1 x management (Ethernet) - RJ-45
- 1 x management - RJ-45
- 1 x dry contact
Expansion Slots
1 (total) / 0 (free) x Expansion SlotMiscellaneous
Cables Included
- Power cable - external - 3 m
- USB cable - external
- Serial cable - external
- Emergency power off cable - external
Rack Mounting Kit
IncludedEquipment Protection Value
400000 US DollarsFeatures
Audible alarm, emergency power off, overheat protection, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, hot-swappable batteries, reset breaker, buck operation, booster technology, dataline protection, rotatable LCD panel, GreenPower UPS Bypass Technology, Fast Charge technology, Human Interface Device (HID) support, Battery Equalization Technology, internal current limiting, low battery alarm, overload alarm, overcharge alarm, overheat alarmCompliant Standards
FCC Class B certified, UL 1778, RoHS, cUL 107.1Software / System Requirements
Software Included
PowerPanel Business EditionEnvironmental Standards
ENERGY STAR
YesManufacturer Warranty
Service & Support
Limited warranty - 3 yearsEnvironmental Parameters
Min Operating Temperature
0 °CMax Operating Temperature
40 °CHumidity Range Operating
0 - 95% (non-condensing)Sound Emission
52.5 dBADimensions & Weight
Width
43.43 cmDepth
41.15 cmHeight
8.64 cmWeight
25.31 kgDimensions & Weight (Shipping)
Shipping Width
56.13 cmShipping Depth
53.09 cmShipping Height
27.43 cmShipping Weight
28.89 kg
