CAD $1,958.99
Manufacturer part SUINT1500LCD2U | Dell part A9071716 | Order Code a9071716 | TrippLite
International 208/230V 1500VA Smart Rackmount UPS
The Tripp Lite SUINT1500LCD2U SmartOnline® 208/230V 1500VA 1350W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It provides pure sine wave output at all times, even when operating from battery.
.jpg)
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Voltage Regulation in Online and Battery Modes
The SUINT1500LCD2U actively converts raw incoming AC power to DC, then re-converts it back to AC with a pure sine wave, continuously regulated within 2% of the selected nominal output voltage with zero transfer time from online to battery mode. Pure sine wave power is required for devices with active PFC power supplies and can prevent poor performance of other types of sensitive equipment.
The SUINT1500LCD2U actively converts raw incoming AC power to DC, then re-converts it back to AC with a pure sine wave, continuously regulated within 2% of the selected nominal output voltage with zero transfer time from online to battery mode. Pure sine wave power is required for devices with active PFC power supplies and can prevent poor performance of other types of sensitive equipment.
.jpg)
Reliable Battery Backup with Expandable Runtime
UPS battery backup keeps connected equipment operational through short power failures or, in case of a prolonged blackout, provides time to save data and perform an orderly system shutdown. Featuring six C13 outlets (four switched) and a C14 input, the SUINT1500LCD2U has an internal battery that provides 12.6 minutes of support at half load (675W) and 4.5 minutes at full load (1350W). Adding external battery packs, such as Tripp Lite’s BP36V15-2U, BP36V27-2US or BP36V42-3U (all sold separately), provides extended runtime. Both internal and external batteries are hot-swappable and can be replaced without disrupting normal operation.
UPS battery backup keeps connected equipment operational through short power failures or, in case of a prolonged blackout, provides time to save data and perform an orderly system shutdown. Featuring six C13 outlets (four switched) and a C14 input, the SUINT1500LCD2U has an internal battery that provides 12.6 minutes of support at half load (675W) and 4.5 minutes at full load (1350W). Adding external battery packs, such as Tripp Lite’s BP36V15-2U, BP36V27-2US or BP36V42-3U (all sold separately), provides extended runtime. Both internal and external batteries are hot-swappable and can be replaced without disrupting normal operation.
.jpg)
2 Load Banks with Switched Outlets
The SUINT1500LCD2U features two load banks, each with two switched and one non-switched C13 outlets. Equipment connected to the switched outlets can be rebooted or reset from a remote location using Tripp Lite’s free downloadable PowerAlert® software and the included USB and DB9 cables.
Interactive Front-Panel LCD with Alarm
Managing the SUINT1500LCD2U is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency. An audible alarm indicates loss of power, low battery, overload and UPS fault conditions. The LCD panel rotates for easy reading in both rack- and tower-mount installations.
The SUINT1500LCD2U features two load banks, each with two switched and one non-switched C13 outlets. Equipment connected to the switched outlets can be rebooted or reset from a remote location using Tripp Lite’s free downloadable PowerAlert® software and the included USB and DB9 cables.
Interactive Front-Panel LCD with Alarm
Managing the SUINT1500LCD2U is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency. An audible alarm indicates loss of power, low battery, overload and UPS fault conditions. The LCD panel rotates for easy reading in both rack- and tower-mount installations.
.jpg)
Protects Against Surges and EMI/RFI Line Noise
A network-grade 936-joule surge suppression rating ensures your valuable equipment is protected from the harmful effects of power surges. As well, the SUINT1500LCD2U employs EMI/RFI noise filtering that prevents various electrical and radio sources from disrupting the AC line and causing hardware damage, data corruption and performance problems. By providing regulated, filtered, pure sine wave AC output, the SUINT1500LCD2U completely isolates your connected equipment from troublesome line noise.
Emergency Power-Off
An Emergency Power-Off (EPO) interface port supports emergency shutdown in large facilities.
.jpg)
SNMP/Web Capability
With Tripp Lite’s free downloadable PowerAlert software, the SUINT1500LCD2U enables safe unattended system shutdown and file saves in case of a prolonged power failure. An HID-enabled USB port and a DB9 port (cables included) provide comprehensive network power monitoring and control, such as UPS and line power status messaging. Adding an optional Tripp Lite SNMPWEBCARD (sold separately) permits operation of the SUINT1500LCD2U as a managed device on the network, including reboots, configuration, updates and activity logs.
Versatile Installation Options

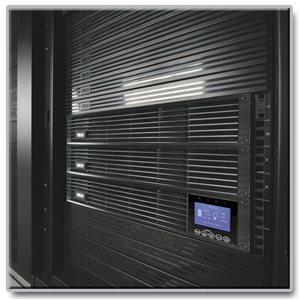

The SUINT1500LCD2U mounts in 2U of space in an EIA-standard 19-inch 4-post rack using the included hardware. For 2-post mounting, the Tripp Lite 2POSTRMKITWM rack-mount installation kit is needed. You can also mount the UPS in an upright tower position using Tripp Lite’s 2-9USTAND base stands. The LCD panel rotates for easy reading in both rack- and tower-mount installations.
2-Year Warranty, $250k Ultimate Lifetime Insurance and Environmentally Responsible Design
The SUINT1500LCD2U comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
The SUINT1500LCD2U mounts in 2U of space in an EIA-standard 19-inch 4-post rack using the included hardware. For 2-post mounting, the Tripp Lite 2POSTRMKITWM rack-mount installation kit is needed. You can also mount the UPS in an upright tower position using Tripp Lite’s 2-9USTAND base stands. The LCD panel rotates for easy reading in both rack- and tower-mount installations.
2-Year Warranty, $250k Ultimate Lifetime Insurance and Environmentally Responsible Design
The SUINT1500LCD2U comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
.jpg)
Tripp Lite SUINT1500LCD2U Product Summary
- True on-line operation with pure sine wave output and zero transfer time to battery
- 1500VA/1350W output capacity
- 6 C13 outlets; C14 inlet
- Selectable 200/208/220/230/240V output; 50/60 Hz frequency compatibility
- Supports half load for 12.6 min. and full load for 4.5 min.
- Expandable runtime with optional external battery packs
- Interactive LCD reports operating mode and conditions
- ENERGY STAR certification
- Communication ports and PowerAlert software compatibility for network management
- 2-year warranty and $250,000 Ultimate Lifetime Insurance (U.S., Canada and Puerto Rico only)
.jpg)
What’s in the Box
- SUINT1500LCD2U SmartOnline 1.5kVA 1.35kW On-Line Double-Conversion UPS
- 4-Post Rack-Mount Installation Kit
- USB Cable
- DB9 Cable
- (2) C13-to-C14 Power Cables
- Owner’s Manual
.jpg)
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosure cabinets, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosure cabinets, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
The SUINT1500LCD2U SmartOnline 208/230V 1.5kVA 1.35kW On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It continuously regulates AC output within 2% of the selected nominal output voltage with zero transfer time from online to battery mode.
Featuring six C13 outlets (four switchable) and a C14 input, the SUINT1500LCD2U has an internal battery that provides 12.6 minutes of support at half load and 4.5 minutes at full load. Adding external battery packs, such as BP36V27-2US (sold separately), provides extended runtime.
Managing the SUINT1500LCD2U is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it's precise power quality for sensitive systems or the highest possible electrical efficiency.
EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 936-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's free downloadable POWERALERT software, the SUINT1500LCD2U enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Tech Specs
General
Device Type
UPS - Power Factor Correction (PFC) - rack-mountableHeight (Rack Units)
2URack Size
19"Power Device
UPS Technology
On-lineInput Voltage
AC 200/208/220/230/240 VFrequency Provided
50/60 HzInput Wiring
1-phaseInput Connectors
1 x power IEC 60320 C14Power Output Connectors Details
6 x power IEC 60320 C13 (UPS and surge)Output Voltage
AC 200/208/220/230/240 V 50/60 HzPower Capacity
1.35 kW / 1500 VADataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output lineOutput Waveform
SinewaveSurge Suppression
YesSurge Energy Rating
936 JoulesEfficiency
93%Power Factor (PF)
0.9Battery
Type
ExpandableRun Time (Up To)
- 4.5 min at full load
- 12.6 min at half load
Networking
Remote Management Interface
RS-232, USBExpansion / Connectivity
Interfaces
- 1 x EPO (emergency power off) - RJ-11
- 1 x USB - 4 pin USB Type B
- 1 x RS-232 - 9 pin D-Sub (DB-9)
- 1 x serial - 8 PIN mini-DIN
Expansion Slots
1 (total) / 1 (free) x Expansion SlotMiscellaneous
Cables Included
- 2 x power cable - external
- Serial cable - external
- USB cable - external
Rack Mounting Kit
IncludedEquipment Protection Value
250000 US DollarsFeatures
Audible alarm, LCD display, LED indicators, over voltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries, Energy-Saving Outlets, 4 switchable socketsCompliant Standards
CSA, SASO, UL 1778, FCC Part 15, RoHS, EAC, IEC 62040-2:2006, IEC 62040-1:2008Software / System Requirements
Software Included
TrippLite PowerAlertOS Required
Apple MacOS X, Microsoft WindowsManufacturer Warranty
Service & Support
Limited warranty - 2 yearsEnvironmental Parameters
Min Operating Temperature
0 °CMax Operating Temperature
40 °CHumidity Range Operating
5 - 95% (non-condensing)Sound Emission
45 dBADimensions & Weight
Width
43.8 cmDepth
49.6 cmHeight
8.8 cmWeight
20.4 kgDimensions & Weight (Shipping)
Shipping Width
56.5 cmShipping Depth
70 cmShipping Height
24 cmShipping Weight
24.5 kg
