CAD $533.00
Manufacturer part PDU2430 | Dell part A0132402 | Order Code a0132402 | TrippLite
Dependable, Cost-Efficient, and Flexible Power Distribution Solution
If you need dependable power distribution that won't bust your budget, Tripp Lite's PDU2430 Single-Phase Basic Power Distribution Unit (PDU) is the economical choice for distributing and managing power to IT, industrial and similar high-density applications. With 24 5-15R outlets and a locking L5-30P plug, the PDU2430 offers flexible and reliable power distribution to components. The PDU2430 is configured for 1U rackmount installation with the included hardware and is also suitable for 0U vertical installation in the cable management area of many rack enclosures. Detachable mounting flanges enable the PDU2430 to be installed in a wide range of additional configurations. For peace of mind, the PDU2430 comes backed by a 5-year warranty and is designed according to strict RoHS specifications.
.jpg)
Media
.jpg)
.jpg)
.jpg)

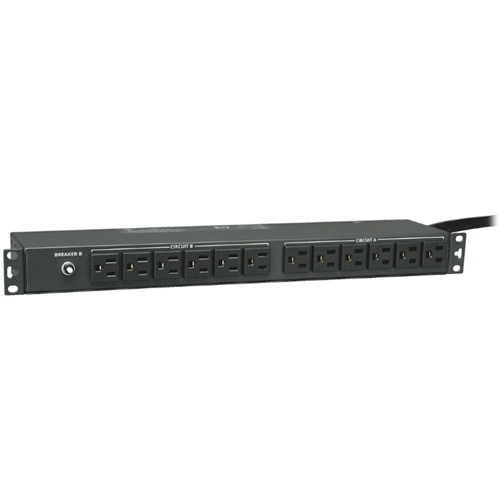

Flexible Outlet Array
The PDU2430 contains a total of 24 5-15R outlets—12 on the front and 12 on the rear of the unit. The PDU2430's reversible housing makes it easier to connect equipment to the PDU and also simplifies cord management—a key advantage in IT applications where cord clutter is a problem.Constructed for Heavy-Duty Service
With a rugged, all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff, the PDU2430 is optimized for reliable service in demanding IT, industrial and commercial applications. The PDU2430 is furnished with its two 15-amp circuit breakers (one for each set of 12 outlets) to protect the PDU as well as the connected equipment against overloads and short circuits.
.jpg)
Optimized for Rackmount Installation
The PDU2430 easily mounts within standard 1U (horizontal) racks with the included hardware. It can also be configured for 0U (vertical) installation in the cable management area of many rack enclosures. In 0U configuration, the PDU2430 can help to promote efficient airflow through the rack by reducing cord clutter.
Multiple Installation Options
The PDU2430 is easy to integrate with a wide range of applications. Adjustable, detachable mounting flanges enable you to install the PDU2430 in many configurations: on a wall or workbench, under a counter and more. It also features a long 15-ft. power cord that reaches distant AC outlets with ease.
The PDU2430 easily mounts within standard 1U (horizontal) racks with the included hardware. It can also be configured for 0U (vertical) installation in the cable management area of many rack enclosures. In 0U configuration, the PDU2430 can help to promote efficient airflow through the rack by reducing cord clutter.
Multiple Installation Options
The PDU2430 is easy to integrate with a wide range of applications. Adjustable, detachable mounting flanges enable you to install the PDU2430 in many configurations: on a wall or workbench, under a counter and more. It also features a long 15-ft. power cord that reaches distant AC outlets with ease.
Constructed for Heavy-Duty Service
The PDU2430 is optimized for reliable service in demanding IT, industrial and commercial applications with a rugged all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff. Two resettable 15A circuit breakers protect the PDU and connected equipment from damage due to power overloads and short circuits.
5-year Product Warranty and Environmentally Responsible Design
The PDU2430 comes with a 5-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.
The PDU2430 is optimized for reliable service in demanding IT, industrial and commercial applications with a rugged all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff. Two resettable 15A circuit breakers protect the PDU and connected equipment from damage due to power overloads and short circuits.
5-year Product Warranty and Environmentally Responsible Design
The PDU2430 comes with a 5-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.
.jpg)
Tripp Lite's PDU2430 Power Distribution Unit Offers:
- 30-amp PDU with 24 outlets
- Rugged all-metal housing with detachable mounting flanges
- Switchless design prevents accidental shutoff
- Configurable for 1U rackmount (horizontal) or 0U (vertical) installation
- 5-year warranty
.jpg)
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
The PDU2430 2.9kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU2430 features 24 total NEMA 5-15R outlets with 12 in front and 12 in the rear. The NEMA L5-30P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 15A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory (sold separately), you can adapt the PDU2430 for vertical 0U rack-mounting.
Tech Specs
General
Device Type
Power distribution unit - rack-mountableHeight (Rack Units)
1UColour
BlackPower Device
Input Voltage
AC 120 VFrequency Required
50/60 HzInput Connectors
1 x power NEMA L5-30Power Output Connectors Details
24 x power NEMA 5-15Max Electric Current
30 APower Capacity
2.9 kWMiscellaneous
Cables Included
Power cable - integrated - 4.5 mRack Mounting Kit
OptionalCompliant Standards
UL, cULManufacturer Warranty
Service & Support
Limited warranty - 5 yearsDimensions & Weight
Width
43.8 cmDepth
7 cmHeight
4.4 cm
