APC NetShelter Rack PDU Advanced, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 48 Outlets, IEC309

Name: APC NetShelter Rack PDU Advanced, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 48 Outlets, IEC309
Brand: APC
SKU: ac021010

Free Shipping. Price above includes SST, where applicable.

Sold Out

Add to Cart

Manufacturer part APDU10350ME | Dell part AC021010 | Order Code ac021010 | American Power Conversion

Compare Compare

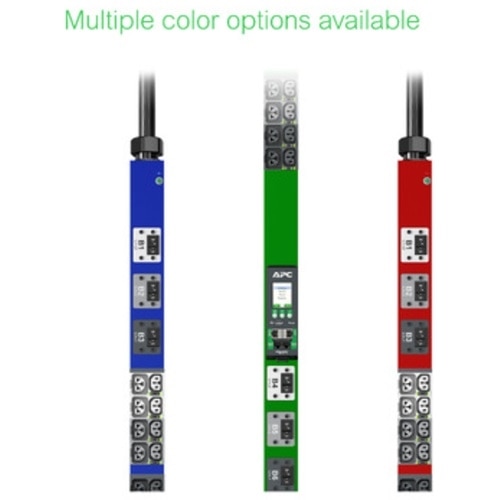

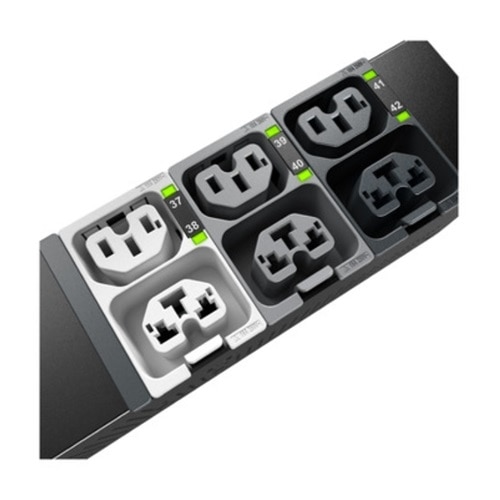

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.

Input: 3PH, 530P6
Outlets: (24) C13/C15/C19/C21, (24) C13/C15
Full-featured network management capability
Interactive LCD display
Active power measurements (volts, amps, kW, kWh)

Shop Similar Products

Tech Specs

Technical Information

PDU Type

Metered

Phase

Three Phase

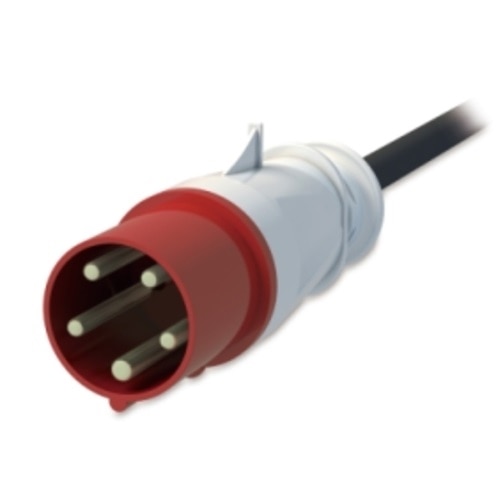

Plug/Connector Type

IEC 60309 30A 3P+N+PE

Receptacle Type

IEC 60320 C13/C15
IEC 60320 C13/C15/C19/C21

Receptacle Detail

24 x IEC 60320 C13/C15
24 x IEC 60320 C13/C15/C19/C21

Power Description

Input Voltage

415 V
480 V

Input Voltage Range

200 V AC - 240 V AC
346 V AC - 415 V AC

Output Voltage

240 V AC

Power Rating (VA)

17.30 kVA

Power Rating (Watt)

17.30 kW

Input Current

30 A

Physical Characteristics

Color Family

Black

Product Color

Black

Form Factor

Rack

Rack Height

Cord Length

1.80 m

Height

1780 mm

Width

56 mm

Depth

75 mm

Weight (Approximate)

8.40 kg

Mounting Orientation

Vertical

Mounting Preference

No Preference

Miscellaneous

Green Premium

Yes

REACH free of SVHC

Yes

WEEE Statement

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

TAA Compliant

Yes

Certifications & Standards

UL 62368-1

CSA C22.2 No 62368-1

FCC part 15 Subpart B

EN 62368-1

Environmentally Friendly

Yes

Environmental Certification

EU RoHS
Green Premium

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Product Take Back Program

For Country/Region

United States

Interfaces/Ports

Network (RJ-45)

Yes

Environmental Conditions

Minimum Operating Temperature

-5^°C

Maximum Operating Temperature

60^°C

Minimum Storage Temperature

-25^°C

Maximum Storage Temperature

65^°C

Warranty

Limited Warranty

3 Year

General Information

Manufacturer

Schneider Electric SA

Manufacturer Part Number

APDU10350ME

Brand Name

APC by Schneider Electric

Product Line

NetShelter

Product Name

NetShelter 48-Outlets PDU

Marketing Information

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.

Packaged Quantity

Product Type

PDU
