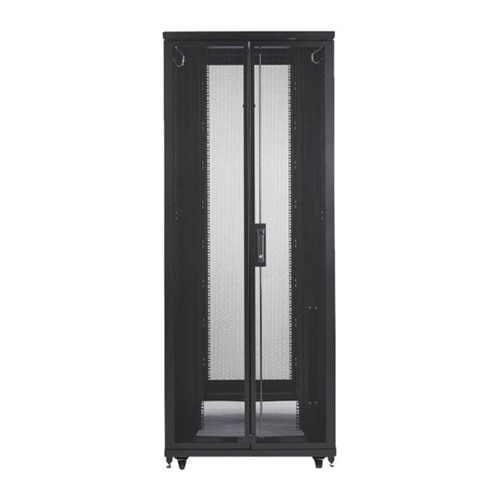

Name: APC NetShelter SV, Server Rack Enclosure, 42U, Black, 2057H x 800W x 1060D mm, with Roof, Castors, Feet, 4 Brackets, Bottom and Side Panels
Brand: APC
SKU: a7418645

Tech Specs

Physical Characteristics

Color Family

Black

Product Color

Black

Dynamic/Rolling Weight Capacity

1014 lb

Static/Stationary Weight Capacity

2205 lb

Height

81"

Width

31.5"

Depth

41.7"

Weight (Approximate)

287.70 lb

Rack Height

42U

Rack Width

19"

Miscellaneous

Package Contents

NetShelter SV 42U 800mm Wide x 1060mm Deep Enclosure With Sides Black
Baying Hardware
Doors
Key(s)
Keyed-Alike Doors and Side Panels
Leveling Feet
Mounting Hardware
Pre-Installed Casters
4 x Bolt-Down Brackets
Roof
Side Panels
Unpacking Sheet

Certifications & Standards

Free of Substances of Very High Concern above the threshold

Assembly Required

Green Premium

Yes

Product Take Back Program

REACH free of SVHC

Yes

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

For Country/Region

United States

Warranty

Limited Warranty

5 Year

Additional Warranty Information

5 year repair or replace

General Information

Manufacturer

Schneider Electric SA

Manufacturer Part Number

AR2480

Brand Name

APC by Schneider Electric

Product Line

NetShelter SV

Product Name

NetShelter SV 42U 800mm Wide x 1060mm Deep Enclosure With Sides Black

Marketing Information

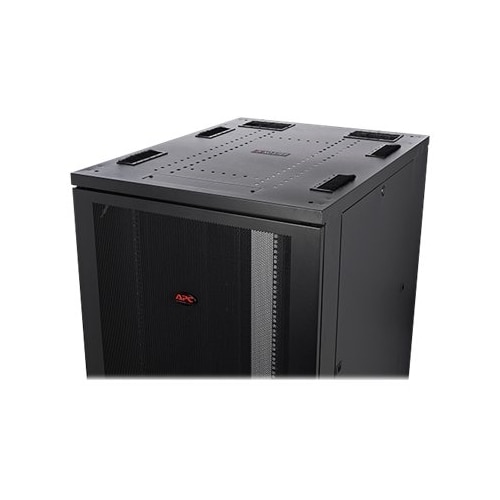

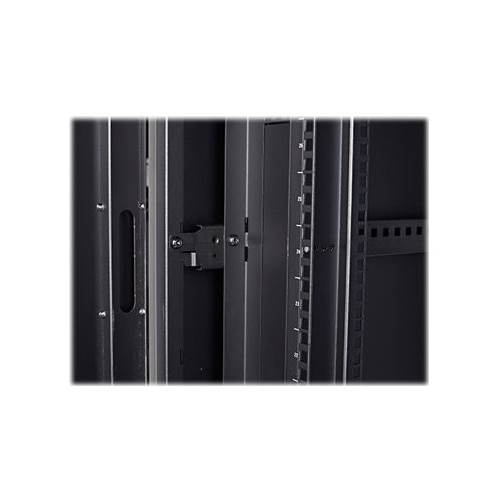

NetShelter SV Enclosures offer the same quality and reliability as NetShelter SX in a cost-effective platform with all the essential features you need.Â Â This wide-depth rack offers large roof openings and 4 preinstalled brushes for cables to pass through.Â Â The front roof opening includes a removable panel, while the rear is open with the option to cover with brush strips (sold separately).Â Â All equipment mounting rails are fully adjustable in 0.4â€ (10mm)Â increments, and 1U devices can be mounted vertically between the rail and side panel.Â The reversable flat front door provides 69% ventilation, and the rear doors are split to allow for clearance. Accessory mounting brackets are included with the enclosure for mounting a variety of rack PDUs and cable management accessories.Â This rack fits easily through standard doorways, ships fully assembled and includes a 5 year manufacturerâ€™s warranty.

Shop Similar Products

NetShelter SV Enclosures offer the same quality and reliability as NetShelter SX in a cost-effective platform with all the essential features you need. This wide-depth rack offers large roof openings and 4 preinstalled brushes for cables to pass through. The front roof opening includes a removable panel, while the rear is open with the option to cover with brush strips (sold separately). All equipment mounting rails are fully adjustable in 0.4" (10mm) increments, and 1U devices can be mounted vertically between the rail and side panel. The reversable flat front door provides 69% ventilation, and the rear doors are split to allow for clearance. Accessory mounting brackets are included with the enclosure for mounting a variety of rack PDUs and cable management accessories. This rack fits easily through standard doorways, ships fully assembled and includes a 5 year manufacturer's warranty.
