Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.
Media
Workstations
Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.
Network Devices
Keep smart devices connected and running during power outages and sags.
Corporate & Department Servers
Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.
The LCD screen provides estimated runtimes based on the power required by connected devices during power outages. This UPS is estimated to run for 18.2 minutes at half load, 6.5 minutes for a full load.
Yes, it comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS. The optional RMCARD205 network management card allows for remote monitoring and management of the UPS.
We do not recommend using the PR1500RT2U to power sump pumps, laser printers, paper shredders, copiers, space heaters or other large electrical devices. The power demands of these devices may overload the unit and cause damage.
The audible alarm can be set to Mute on Battery. This is accomplished by going to the basic set up via the LCD Screen, navigate to audible alarm and then set to Mute on Battery.
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

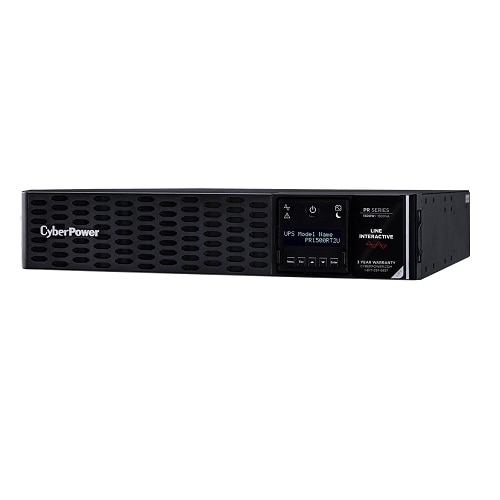

The PR1500RT2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Tech Specs
General
Device Type
UPS - active Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)
2U
Color
Black
Power Device
UPS Technology
Line interactive
Input Voltage
AC 100/110/120/125 V
Input Voltage Range (Adjustable)
AC 70 - 155 V
Frequency Provided
50/60 Hz ± 1%
Frequency Required
47 - 63 Hz
Input Connectors
1 x power NEMA 5-15
Power Output Connectors Details
8 x power NEMA 5-15
Output Voltage
AC 100/110/120/125 V + 5% / - 5% - 50/60 Hz
Power Capacity
1500 Watt / 1500 VA
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
2430 Joules
Circuit Protection
Circuit breaker
Power Factor (PF)
1.0
Battery
Quantity
4
Technology
Lead acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
6.5 min at full load
18.2 min at half load
Recharge Time
3 hours
Switchover Time
4 ms
Features
Sealed
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232)
1 x management (USB) - 4 pin USB Type B
1 x EPO (emergency power off)
1 x dry contact
1 x sensor
Expansion Slots
1 (total) / 1 (free) x expansion slot
Miscellaneous
Cables Included
Power cable 10 ft
USB cable - external
Serial cable - external
Emergency power off cable - external
Rack Mounting Kit
Included
Equipment Protection Value
400000 US Dollars
Features
Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, overload protection, hot-swappable batteries, reset breaker
Compliant Standards
FCC Class B certified, cUL, UL 1778, RoHS, VCCI Class B
Software / System Requirements
Software Included
PowerPanel Business Edition
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight
Width
17 in
Depth
16.2 in
Height
3.4 in
Weight
55.78 lbs
