$1,222.00
Manufacturer part EMA115-10 | Dell part A8396883 | Order Code a8396883 | Eaton

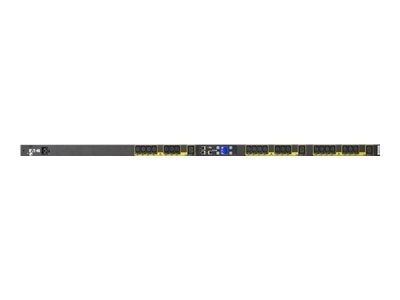

Eaton Managed rackmount PDU
Eaton Managed rack PDUs, also known as Switched PDUs, allow you to monitor and control critical factors such as voltage, current and power factor. This level of information allows you to make the right decision when it comes to energy consumption in your data center. Our most advanced rack PDUs, Eaton Managed units also feature outlet switching and remote site management.
.jpg)
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Product Q&A
What is a “U” when measuring an enclosure or PDU?
A “U” or “RU” refers to the unit of measurement for racks, PDUs, and UPS products. Rack unit size is defined by the Electronic Industries Alliance (EIA). 1U is equal to 1.75” or 44.45mm. Many rack power distribution units come in 0U (vertical mounting), 1U or 2U (horizontal mounting).
Will this mount in my enclosure that is made by a different company?
Yes, the Eaton Rack PDU products have universal mounting hardware that will allow it to mount into our competitor’s products. Our tool-less mounting buttons allow the PDUs to seamlessly mount no matter the enclosure.
What is the typical lifespan of a PDU?
The estimated lifespan of a PDU is roughly 100,000 hours, but with regular maintenance many PDUs can last longer.
I have a network and I want to be able to control my PDU. Can I do that with the Eaton rack PDU?
Yes. Our Managed PDUs, also known as switched PDUs, have a network module that will allow remote management via web or SNMP protocol. Using this in conjunction with our Intelligent Power Management Platform will allow you to have total control of the equipment in your network.
What is daisy-chaining? What is the benefit of daisy-chaining PDUs?
Daisy chaining is a method of linking PDUs that allows for up to 8 rack PDUs to use the same IP address. This reduces network infrastructure costs and allows you to control several groups of power supplies with a single action. This is available on our Managed PDU.
What is the typical warranty?
Our rack PDUs have a standard 24 month warranty, but if you register your product the standard warranty is extended to 36 months.
Can I replace the network module myself?
Yes. We have detailed instructions along with images in our user manual that tell you how to replace the network module. The module is hot-swappable, which means your outlets will not be affected or change state during the process.
Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
Tech Specs
General
Device Type
Power distribution unit - rack-mountableHeight (Rack Units)
36UPower Device
Input Voltage
AC 100-240 VFrequency Required
56 - 60 HzInput Connectors
1 x power IEC 60320 C20Power Output Connectors Details
- 21 x power IEC 60320 C13
- 3 x power IEC 60320 C19
Power Capacity
3.84 kWNetworking
Remote Management Interface
Ethernet 10/100, RS-232Expansion / Connectivity
Interfaces
- 1 x management (Ethernet) - RJ-45
- 1 x RS-232
Miscellaneous
Cables Included
Power cable - external - 10 ftFeatures
Voltage monitoring, current meter, vertical orientationCompliant Standards
ULDimensions & Weight
Width
63 inDepth
2 inHeight
2.1 inDimensions & Weight (Shipping)
Shipping Width
7.7 inShipping Depth
9.3 inShipping Height
77.6 in
