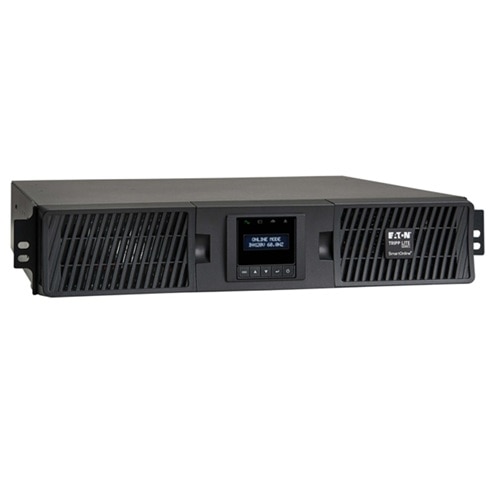

Name: Eaton Tripp Lite Series SmartOnline 1000VA 900W 120V Double-Conversion Sine Wave UPS - 8 Outlets, 2U Rack/Tower
Brand: Eaton
SKU: a7837776

Provides battery backup, power protection and sine wave output for mission-critical IT installations, edge networks and other advanced network applications.

Shop Similar Products

Tech Specs

Technical Information

Plug/Connector Type

NEMA 5-15P

Receptacle Type

NEMA 5-15R

Receptacle Detail

6 x NEMA 5-15R

Bypass Switch

Automatic

Emergency Power OFF

Yes

Transfer Time

0 ns

Power Description

Load Capacity (VA)

1000 VA

Load Capacity (Watt)

900 W

Input Voltage

110 V AC

Output Voltage

110 V AC
115 V AC
120 V AC
127 V AC

Management

Network Management

SNMP Manageable

Interfaces/Ports

Serial Port

Yes

USB

Yes

Battery Information

Backup/Run Time (Full Load)

4.80 Minute

Backup/Run Time (Half Load)

14 Minute

Typical Battery Recharge Time

3 Hour

Hot Swappable

Yes

Physical Characteristics

Height

3.5"

Width

17.5"

Depth

12.5"

Rack Height

Form Factor

Rack/Tower

Weight (Approximate)

29 lb

Miscellaneous

Package Contents

SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS
PowerAlert UPS Monitoring Software CD
USB Cable
Serial Cable
EPO Cable
4 Post Rackmount Installation Kit
Instruction Manual

Certifications & Standards

UL1778
FCC Part 15 Category B (EMI)

Software Included

PowerAlert UPS Monitoring Software

Energy Star

Yes

Country of Origin

Philippines

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

2 Year

General Information

Manufacturer

Eaton Corporation

Manufacturer Part Number

SU1000RTXLCD2U

Brand Name

Tripp Lite series

Product Line

SmartOnline

Product Model

SU1000RTXLCD2U

Product Name

SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS

Marketing Information

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for optional network management card option. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.
