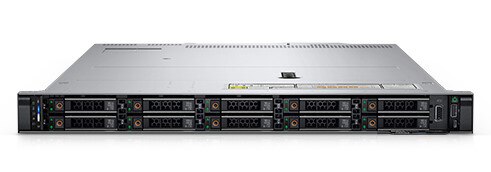

PowerEdge R650xs Rack Server

Name: PowerEdge R650xs Rack Server
Brand: Dell
SKU: poweredge-r650xs

1U server that’s purpose-built for scale-out solutions

The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.

Starting at $2,799.00 $2,799.00

As low as $84/mo.^ with Dell Business Credit

Build and Price

View Tech Specs

1U server that’s purpose-built for scale-out solutions

The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.

Build and Price

Tech Specs & Customization

Still have Questions? Call 888-346-2289 or Click to chat

Processor

Up to two 3rd Generation Intel^® Xeon^® Scalable processors with up to 32 cores per processor

Operating System

(Dell Technologies recommends Windows 11 Pro for business)
Canonical^® Ubuntu^® Server LTS
Citrix^® Hypervisor^®
Microsoft^® Windows Server^® with Hyper-V
RedHat^® Enterprise Linux
SUSE^® Linux Enterprise Server
VMware^® ESXi^®

Memoryⁱ

DIMM Speed
Up to 3200 MT/s

Memory Type
RDIMM

Memory Module Slots
16 DDR4 DIMM slots

Maximum RAM
RDIMM 1 TB

Storage

Front Bays
0 drive bay
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB

Rear bays
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB

Storage Controllers

Internal Controllers
PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i

External Controllers
PERC H840, HBA355e

Software RAID
S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs
Internal Dual SD Module or Internal USB

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

OpenManage Software
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs

OpenManage Integrations
BMC^® Truesight
Microsoft^® System Center
RedHat^® Ansible^® Modules
VMware^® vCenter and vRealize Operations Manager

OpenManage Connections
IBM Tivoli^® Netcool/OMNIbus
IBM Tivoli^® Network Manager IP Edition
Micro Focus^® Operations Manager
Nagios^® Core
Nagios^® XI

Power Supplies

600 W DC/240 V
600 W Platinum AC/100 - 240 V
800 W DC/240 V
800 W Platinum AC/100 - 240 V
1100 W DC/-48–(-60) V
1100 W DC/240 V
1100 W Titanium AC/100 - 240 V
1400 W DC/240 V
1400 W Platinum AC/100 - 240 V
Up to 7 cabled fans

Ports

Network Options
2 x 1 GbE LOM and 1 x OCP 3.0

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x Ethernet
1 x VGA

Internal Ports
1 x USB 3.0 (optional)

Slots

PCIe
Up to 3 x PCIe Gen4 slots

Video Card
1 x VGA

Bezel

Optional LCD bezel or security bezel

Form Factor

1U rack server

Dimensions & Weight

Height
42.8 mm (1.68 inches)

Width
482.0 mm (18.97 inches)

Depth
734.95 mm (28.92 inches) – without bezel
748.79 mm (29.47 inches) – with bezel

Weight
Max 18.62 kg (41.05 lbs.)

Rack Support

ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.

Recommended Support

Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit .

Regulatory

Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment

Features

PowerEdge R650xs Server Resources

PowerEdge R650xs Spec Sheet
PowerEdge R650xs Technical Guide
PowerEdge Rack Servers Quick Reference Guide

Your innovation engine

The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.

Performance and scalability for dense data center computing

The Dell EMC PowerEdge R650xs with 3rd Generation Intel^® Xeon^® Scalable processors is designed to address emerging technologies by delivering a combination of right-sized enterprise features, performance and scalability for virtualization, cloud, database scale-out and high-performance compute workloads.

Supports up to 32 cores per CPU, and up to 16x DDR4 RDIMMs at up to 3200 MT/s
Built for fast growing solutions with an optimal footprint and Multi Vector Cooling 2.0
Manage with iDRAC9 Enterprise, OpenManage Enterprise and Plugins, iDRAC Direct, and Quick Sync 2.0
Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for multiple operating environments, from on-premises to cloud to edge.

Systems Management and Security Solutions

OpenManage systems management

The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

Intelligent Automation

PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.

Built-in security

PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.

Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.

Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.

Education

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.
