PowerEdge: Intel IPU Fails to Ping Outside Local Network

Summary: Following the initial setup, the Intel Infrastructure Processing Unit (IPU) is unable to ping networks beyond its local network.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Following the initial setup of the Acceleration Compute Complex (ACC), the Intel IPU is unable to communicate to external networks beyond its local network.

Note: The ACC serves as the embedded operating system for the Intel IPU.

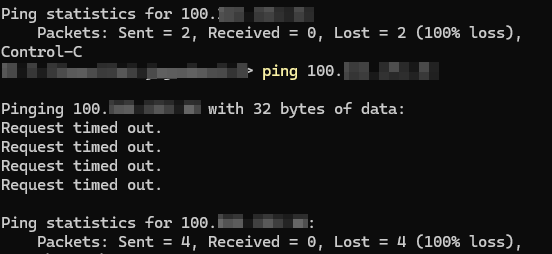

Example of ping failure:
Ping Failure

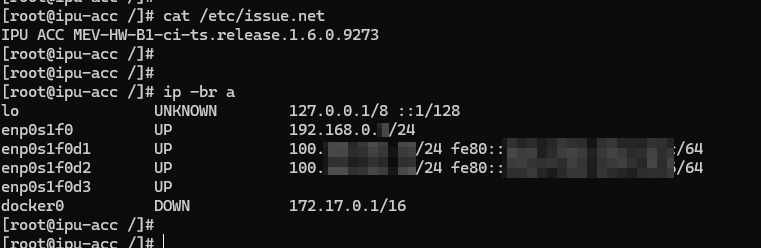

Example of configuration:
IP Configuration






Cause

A static gateway IP address is configured on the ACC kernel during the boot process from the Integrated Management Complex (IMC). This configuration is part of the setup for static IP addresses for both ACC and IMC to facilitate SSH communication.
This feature was introduced in ACC version 1.6.0. If the IPU is downgraded to version 1.2.0, the static IP configuration persists due to its nature as a persistent setting.

Resolution

This issue is addressed in IPU software release 1.7.0. Update to the latest version to resolve it.

As a temporary solution, add a line in /etc/rc.local to remove the 192.168.0.x gateway, allowing the ACC operating system to use a different gateway persistently.

Affected Products

Intel PRO Family of Adapters, OEMR R650, OEMR R6525, OEMR R660, OEMR R6615, OEMR R6625, OEMR R750, OEMR R7515, OEMR R7525, OEMR R760

Products

OEMR R760xa, OEMR R7615, OEMR R7625, OEMR XR7620, PowerEdge R470, PowerEdge R570, PowerEdge R650, PowerEdge R6525, PowerEdge R660, PowerEdge R6615, PowerEdge R6625, PowerEdge R670, PowerEdge R750, PowerEdge R7515, PowerEdge R7525, PowerEdge R760 , PowerEdge R760XA, PowerEdge R7615, PowerEdge R7625, PowerEdge XE9680, PowerEdge XR7620, PowerFlex appliance R650, PowerFlex appliance R6525, PowerFlex appliance R660, PowerFlex appliance R6625, Powerflex appliance R750, PowerFlex appliance R760, PowerFlex appliance R7625, PowerFlex custom node R650, PowerFlex custom node R6525, PowerFlex custom node R660, PowerFlex custom node R6625, PowerFlex custom node R750, PowerFlex custom node R760, PowerFlex custom node R7625, PowerFlex appliance R7525 ...
