Avamar: How to manage Checkpoint Backups on Data Domain

Summary: This article outlines how to manage checkpoint backups (CP-Backup) with Avamar and Data Domain.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

A checkpoint backup of an Avamar grid can be used for checkpoint restores in a disaster recovery event for Avamar.

The checkpoint backup is a special backup of the Avamar checkpoint stored on the Data Domain.

Note: Checkpoint backups are only available for the single-node Avamar and Avamar Virtual Editions (AVE).

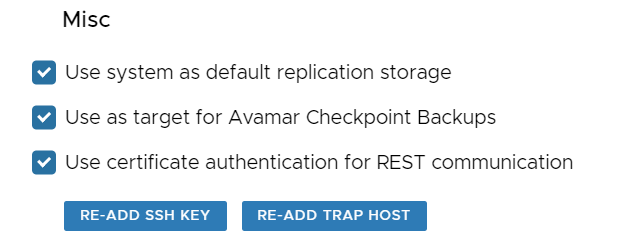

Where there is an attached Data Domain (DD), this is configured in the Avamar User Interface (AUI), by selecting "System" -> "Data Domain" -> "Edit" -> "Use as target for Avamar Checkpoint Backups":

checkpoint backup option



To list the available checkpoint backups, run the following command from the Avamar command line:

ddrmaint cp-backup-list --ddr-server=<dd hostname/ip> --ddr-user-name=<ddboost username> --ddr-password=<ddboost user password>


Example:

ddrmaint cp-backup-list --ddr-server=ddve-v713 --ddr-user-name=ddboost --ddr-password=DellPassword

cp.20241105150114 2024-11-05 12:20:23 ------- --- ---  partitions  3 avamar-1709325232 ave-v1910
cp.20241105150405 2024-11-05 12:22:21 ------- --- ---  partitions  3 avamar-1709325232 ave-v1910



To check the checkpoint backup contents on the Data Domain:

a. Identify the Avamar hfscreate time from the Avamar command line:

avmaint hfscreate


b. Enter bash mode on Data Domain Data Domain: How to enter BASH Mode (Support and Engineering Only) and mount the file system with the hfscreate value from above:

mount localhost:/data/col1/avamar-<hfscreate> /data


c. List the checkpoint backup directories:

ls -ltr /data/GSAN/


The following is an example of a checkpoint backup directory:

!!!! ddve-v713 YOUR DATA IS IN DANGER !!!! # ls -ltr /data/GSAN/cp.20241105150405

total 1339
-rw-rw-rw- 1 ddboost admin     520 Nov  5 10:22 gsanbackup.xml
-rw-rw-rw- 1 ddboost admin    3003 Nov  5 10:22 ddr_info
drwxrwxrwx 2 ddboost admin   15970 Nov  5 10:22 data03
drwxrwxrwx 2 ddboost admin   15625 Nov  5 10:22 data02
drwxrwxrwx 2 ddboost admin   23402 Nov  5 10:22 data01
-rw-rw-rw- 1 ddboost admin 1310720 Nov  5 10:22 backupupgradefiles.tar


d. Remember to unmount the file system:

umount /data



The following command is used to take a manual checkpoint backup:

cpbackup --cptag <checkpoint>


Example:

cpbackup --cptag cp.20241105150405


The checkpoint value can be found by listing all checkpoints on the Avamar:

cplist

Affected Products

Avamar Server, DD OS
