PowerEdge: 17G Server Maximum CPU Speed in SMBIOS Processor Information "Type 4"

Summary: After BIOS update on a 17G system, the Max Speed field in the System Management BIOS (SMBIOS) differs from the Central Processing Unit (CPU) spec because it reports capability, not turbo rating. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

After updating the 17G AMD BIOS to version 1.4.1 or the 17G Intel BIOS to version 1.6.4,

The Max Speed field in the SMBIOS Processor Information (Type 4) table reflects a value inconsistent with the CPU specification.

For example, 17G AMD R6715 with 9015

R6715 SMBIOS table-Type 4:

SMBIOS-type4

9015 Spec:This hyperlink is taking you to a website outside of Dell Technologies.

CPU Spec

Cause

Dell BIOS was updated to comply with the industry SMBIOS specification:

https://www.dmtf.org/sites/default/files/standards/documents/DSP0134_3.9.0.pdfThis hyperlink is taking you to a website outside of Dell Technologies.

The Max Speed field in Processor Information (Type 4) represents the maximum capability of the system, not the processor's own rated turbo frequency.

As a result, the value may differ from what is published in the CPU datasheet.

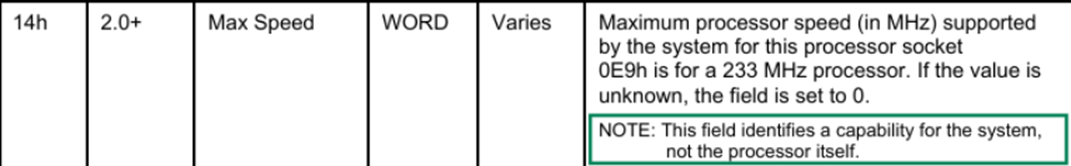

SMBIOS Spec

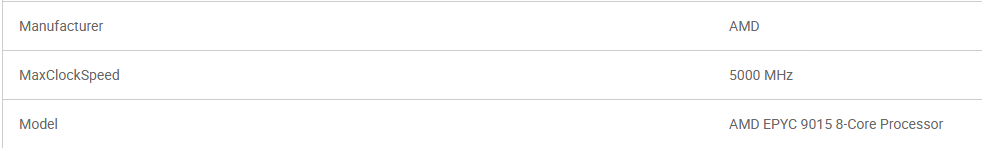

The same value is also reflected in iDRAC → Hardware Inventory → CPU → MaxClockSpeed.

iDRAC HWInventory

Resolution

This is expected behavior.

Affected Products

PowerEdge R470, PowerEdge R570, PowerEdge R6715, PowerEdge R6725, PowerEdge R770, PowerEdge R7715, PowerEdge R7725
