PowerEdge: Kioxia PM7 960 and 800 GB drive Labels shows a common manufacture part number

Summary: For the Dell and FCoE Initialization Protocol (FIP)s drive the Manufactures part number are Shared between the 960 GB and 800 GB version of the drive.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

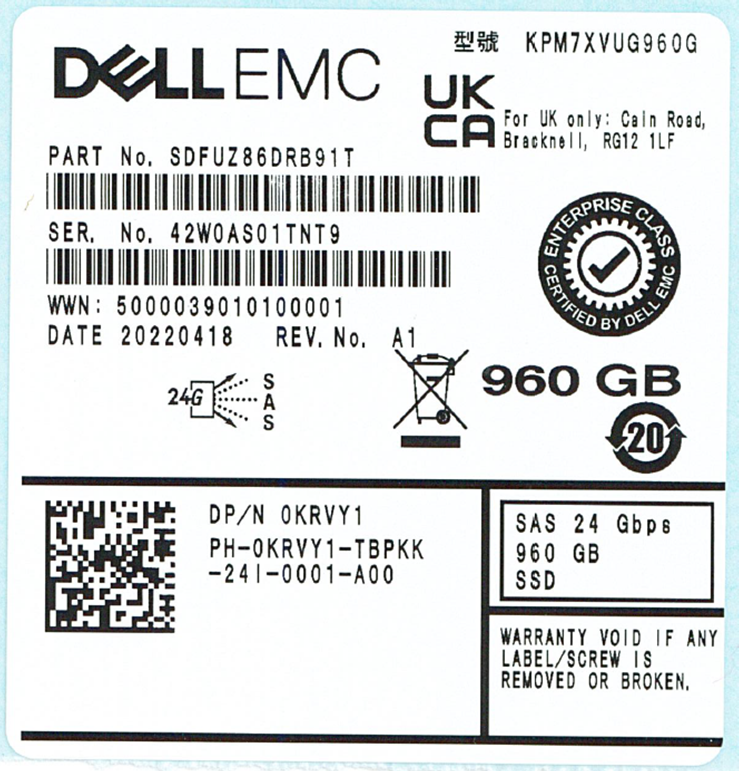

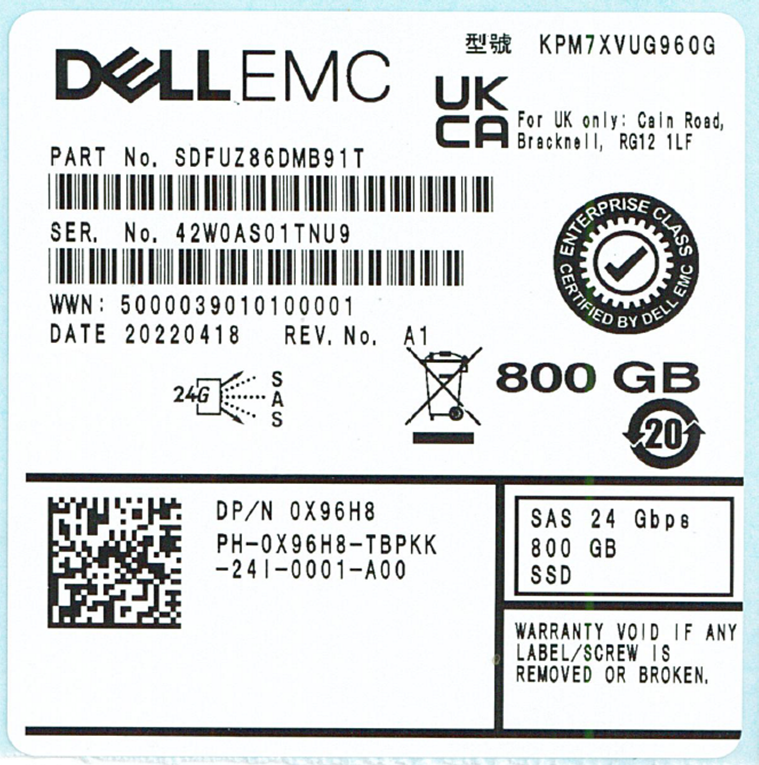

Notice in the Example labels below for the Std version of the drive the Manufactures part number in the upper right corner of the label "KPM7XVUG960G" is the same for both drives.
However the Dell part number, size, and endurance are different.
The manufacture has configured the Dell drive to our own specific capacity and endurance.

drive label            drive label

The same is true for the FCoE Initialization Protocol (FIP) versions of the drives as well seen below.

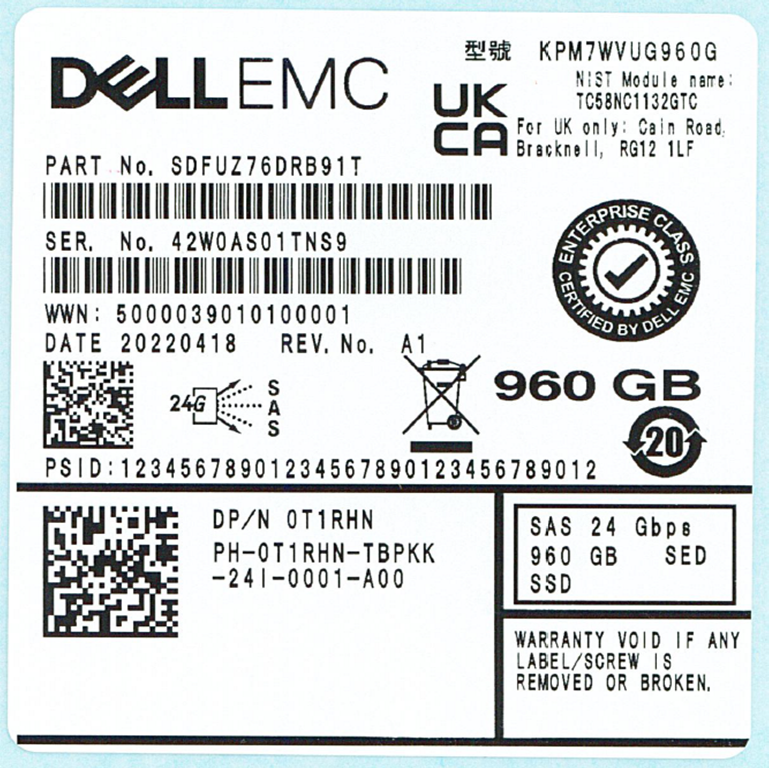

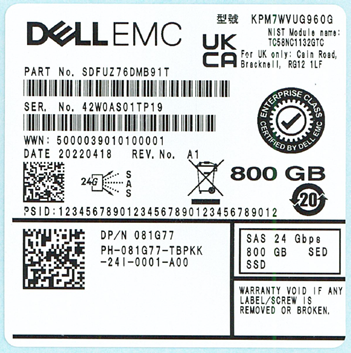

Notice in the Example labels below for FIP's version of the drive the Manufactures part number in the upper right corner of the label "KPM7WVUG960G" is the same.
However the Dell part number, size, and endurance are different.


drive label           drive label


The table below presents the same information in tabular format. Additionally, note the swim lane update: the 960 GB SSDs are designated as Read Intensive (RI) drives, whereas the 800 GB SSDs are designated as Mixed Use (MU) drives.

These classifications are being updated as part of the firmware revision.

Dell PN Mfg Family Name Mfg Model Number Mfg PN Capacity Encryption Swim-Lane DWPD
0KRVY1 Kioxia PM7 KPM7XVUG960G SDFUZ86DRB91T 960GB SIE RI 1
0X96H8 Kioxia PM7 KPM7XVUG960G SDFUZ86DMB91T 800GB SIE MU 3
0T1RHN Kioxia PM7 KPM7WVUG960G SDFUZ76DRB91T 960GB SED (FIPS-140) RI 1
081G77 Kioxia PM7 KPM7WVUG960G SDFUZ76DMB91T 800GB SED (FIPS-140) MU 3

Cause

The manufacturer is standardizing on a single SSD hardware design. Dell's requirement to offer both 960 GB (RI) and 800 GB (MU) drives is achieved through different firmware configurations, with the firmware determining the drive's reported capacity and usage classification.

Resolution

This article is provided for informational purposes only. There is no resolution or corrective action required.

The change is driven by the manufacturer standardizing on a single, higher-end SSD platform. The same hardware is used to fulfill both Dell offerings: the 960 GB Read Intensive (RI) drive and the 800 GB Mixed Use (MU) drive. Different firmware versions are applied to the drives to meet the specific capacity and endurance requirements of each offering.

As a result, the observe changes in drive capacity classification, swim lane designation, and firmware reporting, even though the underlying hardware platform remains the same. The drives being deployed are the higher-quality models capable of supporting both use cases.



Affected Products

OEMR R240, OEMR R250, OEMR R260, OEMR R340, OEMR R350, OEMR R360, OEMR R440, OEMR R450, OEMR R540, OEMR R550, OEMR R640, OEMR R6415, OEMR R650, OEMR R650xs, OEMR R6515, OEMR R6525, OEMR R660, OEMR XL R660, OEMR R660xs, OEMR R6615, OEMR R6625 , OEMR R740, OEMR XL R740, OEMR R740xd, OEMR XL R740xd, OEMR R740xd2, OEMR R7415, OEMR R7425, OEMR R750, OEMR R750xa, OEMR R750xs, OEMR R7515, OEMR R7525, OEMR R760, OEMR R760xa, OEMR R760XD2, OEMR R760xs, OEMR R7615, OEMR R7625, OEMR R840, OEMR R860, OEMR R940, OEMR R940xa, OEMR R960, OEMR XL R660xs, OEMR XL R6615, OEMR XL R6625, OEMR XR5610, OEMR XR8610t, OEMR XR8620t, PowerEdge R240, PowerEdge R250, PowerEdge R260, PowerEdge R340, PowerEdge R350, PowerEdge R360, PowerEdge R440, PowerEdge R450, PowerEdge R540, PowerEdge R550, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R650xs, PowerEdge R6515, PowerEdge R6525, PowerEdge R660, PowerEdge R660xs, PowerEdge R6615, PowerEdge R6625, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R750XA, PowerEdge R750xs, PowerEdge R7515, PowerEdge R7525, PowerEdge R760, PowerEdge R760XA, PowerEdge R760xd2, PowerEdge R760xs, PowerEdge R7615, PowerEdge R7625, PowerEdge R840, PowerEdge R860, PowerEdge R940, PowerEdge R940xa, PowerEdge R960, PowerEdge XR5610, PowerEdge XR7620, PowerEdge XR8610t, PowerEdge XR8620t, Dell EMC vSAN R640 Ready Node, Dell EMC vSAN R6415 Ready Node, vSAN Ready Node R660, Dell vSAN R6615 Ready Node, Dell EMC vSAN R740 Ready Node, Dell EMC vSAN R740xd Ready Node, Dell EMC vSAN R750 Ready Node, Dell EMC vSAN R7515 Ready Node, Dell vSAN R7615 Ready Node, Dell vSAN Ready Node R7625 ...
