Avamar PDM 失敗，並顯示「擷取工作時發生錯誤，並顯示 HTTP 錯誤代碼：404 其他資訊」 HTTP 狀態 404 - 找不到

Summary: 本文說明如何解決代理部署管理員（PDM）錯誤訊息：擷取工作時發生錯誤。失敗並顯示 HTTP 錯誤代碼：404 其他資訊」 HTTP 狀態 404 - 找不到

Symptoms

Cause

Resolution

Affected Products

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.

Check out other resources

Symptoms

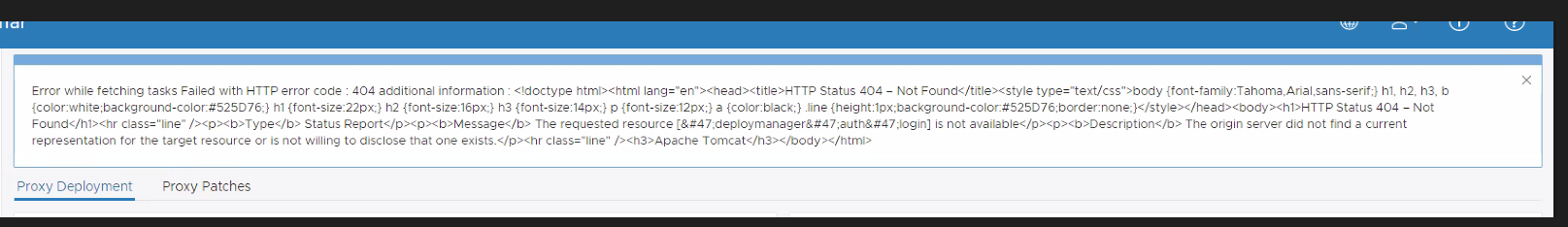

無法使用 Proxy Deployment Manager （PDM）在 Avamar 使用者介面（AUI）或 Avamar Administrator 主控台中建立建議：

Cause

</pre><p><b>Root Cause</b></p><pre>com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.

發生 RabbitMQ 驗證問題。

404 錯誤代碼可在以下位置看到： /usr/local/avamar/var/mc/server_log/mcserver.log.0 搭配 Avamar Administrator 主控台使用 PDM 時：

WARNING: Failed (https://localhost:8543/deploymanager/auth/login)(attempt 1 of 3): Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [/deploymanager/auth/login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
08/25-16:53:06.00956 [MCS Counter monitor thread#168] com.avamar.mc.mon.MCSPerformanceMonitor.monitor
FINE: enter
08/25-16:53:06.00975 [RMI TCP Connection(122)-192.168.33.10#1523] com.avamar.mc.pdm.ProxyDeploymentManagerService.submitJsonWithRetry
WARNING: Failed (https://localhost:8543/deploymanager/auth/login)(attempt 2 of 3): Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [/deploymanager/auth/login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
08/25-16:53:07.00035 [RMI TCP Connection(122)-192.168.33.10#1523] com.avamar.mc.pdm.ProxyDeploymentManagerService.submitJsonWithRetry
WARNING: Failed (https://localhost:8543/deploymanager/auth/login)(attempt 3 of 3): Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [/deploymanager/auth/login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
08/25-16:53:07.00036 [RMI TCP Connection(122)-192.168.33.10#1523] com.avamar.mc.util.MCException.logException
WARNING: com.avamar.asn.service.ServiceException: Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [/deploymanager/auth/login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.login(ProxyDeploymentManagerService.java:577)
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.getAllTasks(ProxyDeploymentManagerService.java:377)
  at sun.reflect.GeneratedMethodAccessor95.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.java:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy96.getAllTasks(Unknown Source)
  at com.avamar.mc.pdm.ProxyDeploymentManagerServiceContext.getAllTasks(ProxyDeploymentManagerServiceContext.java:69)
  at sun.reflect.GeneratedMethodAccessor94.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)

在下列端點確認 404 錯誤：

admin@ave:/usr/local/avamar/var/mc/server_log/>: curl -kv https://localhost:8543/deploymanager/auth/login
*   Trying ::1...
* TCP_NODELAY set
* Connected to localhost (::1) port 8543 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* Cipher selection: ALL:!EXPORT:!EXPORT40:!EXPORT56:!aNULL:!LOW:!RC4:@STRENGTH
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS handshake, Server key exchange (12):
* TLSv1.2 (IN), TLS handshake, Server finished (14):
* TLSv1.2 (OUT), TLS handshake, Client key exchange (16):
* TLSv1.2 (OUT), TLS change cipher, Client hello (1):
* TLSv1.2 (OUT), TLS handshake, Finished (20):
* TLSv1.2 (IN), TLS change cipher, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Finished (20):
* SSL connection using TLSv1.2 / ECDHE-RSA-AES256-GCM-SHA384
* ALPN, server did not agree to a protocol
* Server certificate:
*  subject: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  start date: Jul  1 12:02:13 2022 GMT
*  expire date: Jun 28 12:02:13 2032 GMT
*  issuer: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  SSL certificate verify result: self signed certificate (18), continuing anyway.
> GET /deploymanager/auth/login HTTP/1.1
> Host: localhost:8543
> User-Agent: curl/7.60.0
> Accept: */*
>
< HTTP/1.1 404
< Content-Type: text/html;charset=utf-8
< Content-Language: en
< Content-Length: 776
< Date: Thu, 25 Aug 2022 14:54:36 GMT
< Connection: close
< Server: Avamar
<
* Closing connection 0
* TLSv1.2 (OUT), TLS alert, Client hello (1):
<!doctype html><html lang="en"><head><title>HTTP Status 404 – Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 – Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [/deploymanager/auth/login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>

快照管理員端點顯示以下異常堆疊：

root@ave:/usr/local/avamar/var/mc/server_data/prefs/#: curl -kv https://localhost:8543/snapshotmanager/about
*   Trying ::1...
* TCP_NODELAY set
* Connected to localhost (::1) port 8543 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* Cipher selection: ALL:!EXPORT:!EXPORT40:!EXPORT56:!aNULL:!LOW:!RC4:@STRENGTH
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS handshake, Server key exchange (12):
* TLSv1.2 (IN), TLS handshake, Server finished (14):
* TLSv1.2 (OUT), TLS handshake, Client key exchange (16):
* TLSv1.2 (OUT), TLS change cipher, Client hello (1):
* TLSv1.2 (OUT), TLS handshake, Finished (20):
* TLSv1.2 (IN), TLS change cipher, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Finished (20):
* SSL connection using TLSv1.2 / ECDHE-RSA-AES256-GCM-SHA384
* ALPN, server did not agree to a protocol
* Server certificate:
*  subject: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  start date: Jul  1 12:02:13 2022 GMT
*  expire date: Jun 28 12:02:13 2032 GMT
*  issuer: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  SSL certificate verify result: self signed certificate (18), continuing anyway.
> GET /snapshotmanager/about HTTP/1.1
> Host: localhost:8543
> User-Agent: curl/7.60.0
> Accept: */*
>
< HTTP/1.1 500
< Content-Type: text/html;charset=utf-8
< Content-Language: en
< Transfer-Encoding: chunked
< Date: Thu, 25 Aug 2022 15:04:43 GMT
< Connection: close
< Server: Avamar
<
<!doctype html><html lang="en"><head><title>HTTP Status 500 – Internal Server Error</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 500 – Internal Server Error</h1><hr class="line" /><p><b>Type</b> Exception Report</p><p><b>Message</b> Servlet.init() for servlet [snapshotmanager] threw exception</p><p><b>Description</b> The server encountered an unexpected condition that prevented it from fulfilling the request.</p><p><b>Exception</b></p><pre>javax.servlet.ServletException: Servlet.init() for servlet [snapshotmanager] threw exception
        org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:543)
        org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
    [...]
        java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'snapshotManagerServerConfiguration': Unsatisfied dependency expressed through field 'snapshotRequestHandler'; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'snapshotHandler': Unsatisfied dependency expressed through field 'snapshotTemplate'; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'getRestTemplate' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'getRestTemplate' threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'replySnapshotQueue' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'replySnapshotQueue' threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:598)
        org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:90)
    [...]
        java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'snapshotHandler': Unsatisfied dependency expressed through field 'snapshotTemplate'; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'getRestTemplate' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'getRestTemplate' threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'replySnapshotQueue' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'replySnapshotQueue' threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:598)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'getRestTemplate' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'getRestTemplate' threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'replySnapshotQueue' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'replySnapshotQueue' threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:627)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'getRestTemplate' threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'replySnapshotQueue' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'replySnapshotQueue' threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'replySnapshotQueue' defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'replySnapshotQueue' threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:627)
        org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:456)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean 'snapshotManagerServerConfiguration' - consider declaring the factory method as static for independence from its containing instance. Factory method 'replySnapshotQueue' threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.amqp.rabbit.support.RabbitExceptionTranslator.convertRabbitAccessException(RabbitExceptionTranslator.java:61)
    [...]
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        com.rabbitmq.client.impl.AMQConnection.start(AMQConnection.java:339)
        com.rabbitmq.client.ConnectionFactory.newConnection(ConnectionFactory.java:647)
        com.rabbitmq.client.ConnectionFactory.newConnection(ConnectionFactory.java:694)
    [...]
        java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
        java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
* Closing connection 0
* TLSv1.2 (OUT), TLS alert, Client hello (1):
</pre><p><b>Note</b> The full stack trace of the root cause is available in the server logs.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>

從上面的輸出中，收集前面提到的以下代碼片段：

threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.

Resolution

適用於 Avamar 版本 19.x 和更新版本：

備份 mcserver.xml 並更新 RabbitMQ 密碼 mcserver.xml 到預設值 'Avamar_Rabbit' 並編輯檔案：

cp -p /usr/local/avamar/var/mc/server_data/prefs/mcserver.xml /usr/local/avamar/var/mc/server_data/prefs/x-mcserver.xml

vi /usr/local/avamar/var/mc/server_data/prefs/mcserver.xml

變更 <entry key="rabbitmqAP" 變更為預設密碼 'Avamar_Rabbit'。

<entry key="rabbitmqAP" value="Avamar_Rabbit" />

以系統管理員使用者身分重新啟動 管理主控台服務 （MCS）：

mcserver.sh --restart --force

重新建立 RabbitMQ User/Permissions/Password/vHost 作為 root 使用者並使用下列 GoAV 命令自動執行此操作：

./goav rabbitmq reset

提示使用者核准 MCS 和 Tomcat 重新開機
停止 RabbitMQ 服務
移除 RabbitMQ mnesia 資料庫
啟動 RabbitMQ 服務
卸下鏟子
停止訊息代理
更新 Avamar 和訪客 RabbitMQ 使用者的認證
啟動訊息代理
重新啟動 Tomcat
重新啟動 MCS

測試 PDM 建議。

Affected Products

Avamar

Article Number: 000203332

Article Type: Solution

Last Modified: 13 يناير 2026

Version: 9
