PowerEdge: La utilidad de configuración de HII de PERC11 o 10 y la iDRAC no admiten la expansión de arreglos

Summary: La controladora RAID PowerEdge (PERC11 y PERC10), la utilidad de configuración de la infraestructura de interfaz humana (HII) y la iDRAC no admiten la expansión de arreglos.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

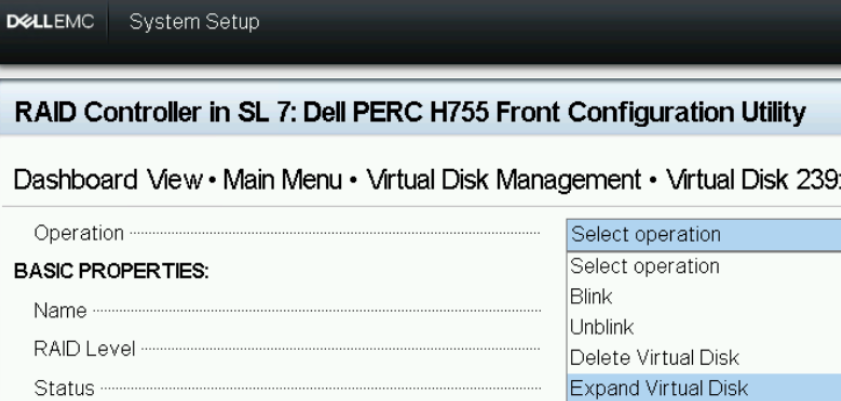

Cuando los discos duros de un grupo de discos se reemplazan por discos más grandes, el Expand Virtual Disk La opción no está disponible en la Utilidad de configuración de HII de PERC: Configuración del sistema:> Lista desplegable Configuración de PERC:> operación de VD :Utilidad de configuración de HII: operación de VD

Figura 1: Utilidad de configuración de HII: operación de VD

La variable Edit Disk Capacity está disponible en la lista desplegable iDRAC WebGUI-Storage-Virtual>> Disks -> VD Actions:

Disco> virtual de almacenamiento de iDRAC WebGUI>
Figura 2: Disco virtual de> almacenamiento de almacenamiento de> iDRAC WebGUI

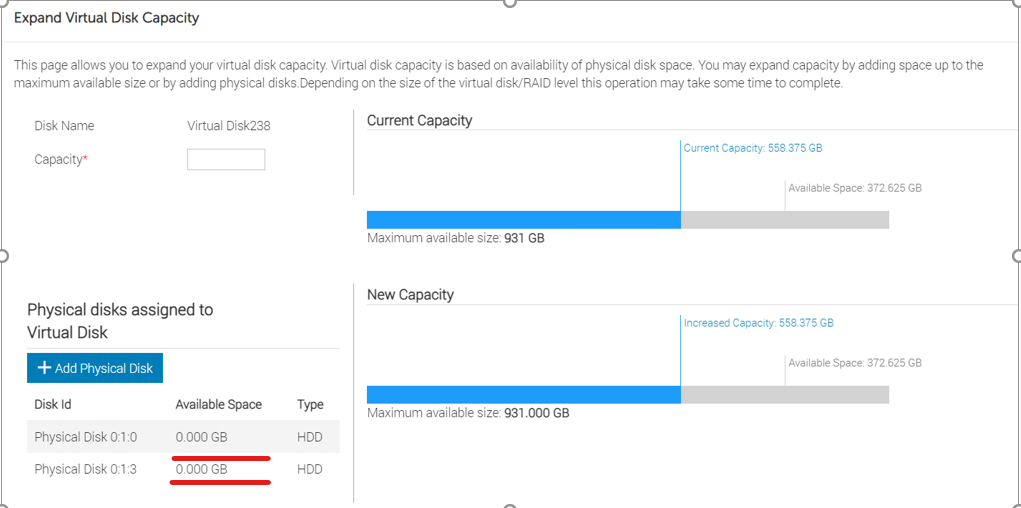

La variable Available Space muestra 0.00 GB Después de seleccionar Edit Disk Capacity:
GUI web de iDRAC:> página Expandir capacidad del disco virtual

Figura 3: Página WebGUI de iDRAC:> Expandir capacidad del disco virtual.

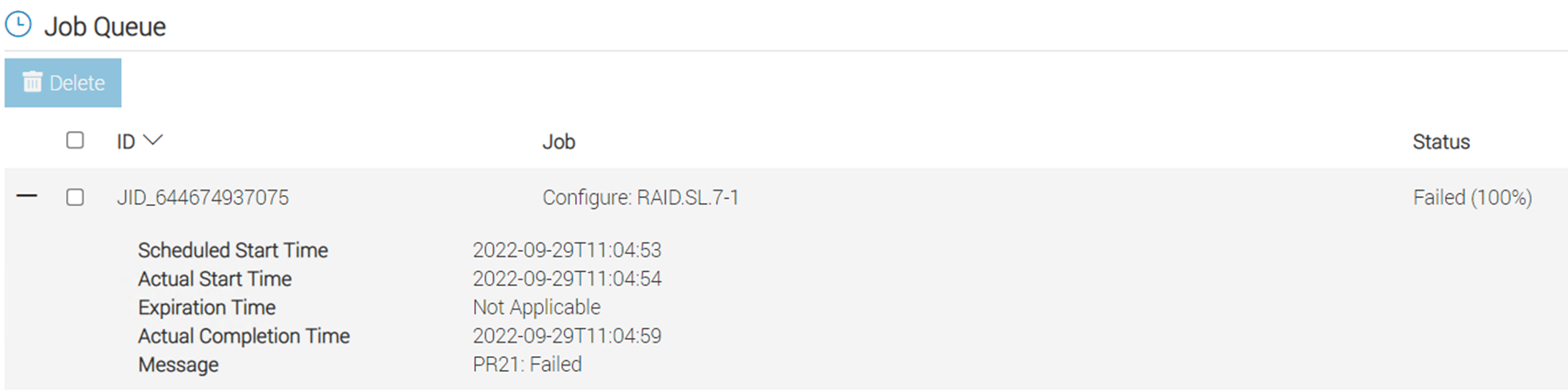

La operación falla cuando se intenta expandir la capacidad del disco virtual ingresando el tamaño máximo disponible en el campo Capacidad :Mensaje de error de Job Queue

Figura 4: Mensaje de error de Job Queue

Si hay espacio disponible en un arreglo existente, utilice el comando PERCCLI utilidad para expandirse.

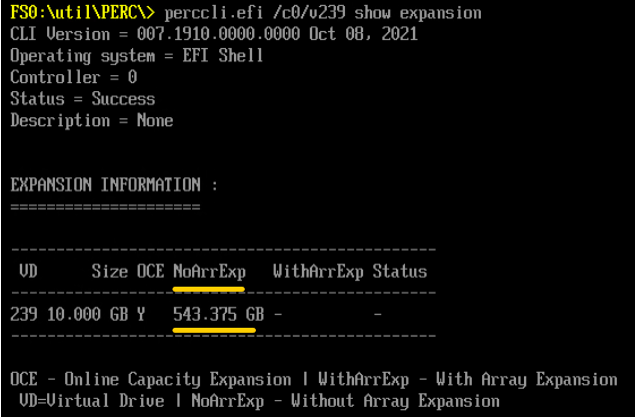

PERCCLI /cx/vx show expansion Muestra el espacio disponible en NoArrExp.NoArrExp de salida de PERCCLI

Figura 5: PERCCLI Salida NoArrExp

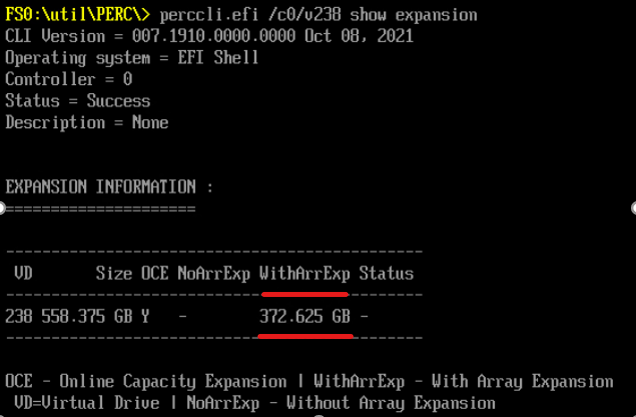

Sin embargo, si los discos duros de un grupo de discos se reemplazaron por discos más grandes, el espacio disponible aparece en WithArrExp En PERCCLI /cx/vx show expansion Producción:Salida de PERCCLI WithArrExp

Figura 6: PERCCLI Salida WithArrExp

Cause

La Utilidad de configuración de PERC HII y iDRAC no soportan la expansión de la capacidad del arreglo.

Resolution

Expansión de la capacidad del arreglo mediante Dell PERCCLI Utilidad:


1. Run "perccli /cx/vx show expansion" to determine the available expansion space.

2. Then run "perccli /cx/vx expand Size=<xx> expandarray" to perform the array expansion.

            The expand command will expand the virtual drive within the existing array if there is available space, or expand into additional capacity if the drives have been replaced with larger ones.
            The <xx> size value is specified in MB.
            If the "expandarray" option is specified, the full array capacity will be expanded.
            If this option is not specified, only the virtual drive capacity will be expanded rather than the full array.

Después de reemplazar todos los miembros del arreglo con unidades más grandes, utilice PERCCLI utilidad para expandir el disco virtual existente a un tamaño mayor mediante el comando expandarray parámetro.

Este comportamiento también se documenta en la Guía del usuario de PERC11 en la sección "Características de PowerEdge RAID Controller 11":> "Reconfiguración de discos virtuales"https://www.dell.com/support/home/en-us/product-support/product/perc-h755/docs
