PowerEdge: O utilitário de configuração HII do PERC11 ou 10 e o iDRAC não são compatíveis com a expansão de array

Summary: O PowerEdge RAID Controller (PERC11, PERC10), o utilitário de configuração da Human Interface Infrastructure (HII) e o iDRAC não são compatíveis com a expansão de array.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

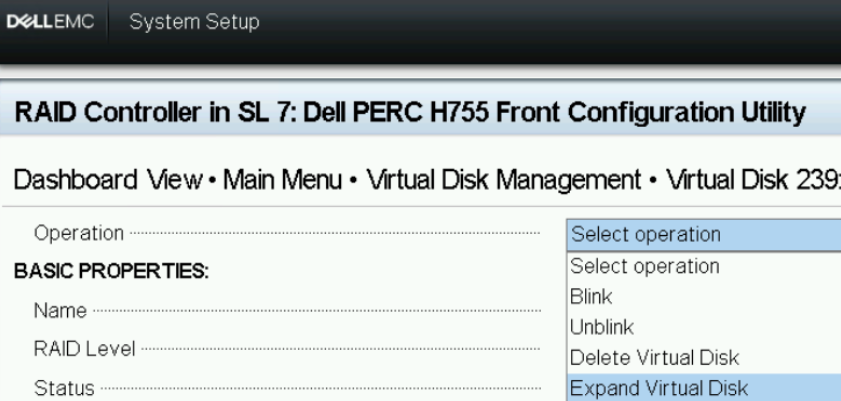

Quando os discos rígidos em um grupo de discos são substituídos por discos maiores, o Expand Virtual Disk opção não está disponível no utilitário de configuração do PERC HII: Configuração do sistema -> Lista suspensa PERC Setup -> VD Operation :Operação do disco virtual do utilitário de configuração HII

Figura 1: Utilitário de configuração HII - Operação de disco virtual

A coluna Edit Disk Capacity está disponível na lista suspensa iDRAC WebGUI-Storage-Virtual>> Disks -> VD Actions:

iDRAC WebGUI -> Armazenamento -> Disco virtual
Figura 2: iDRAC WebGUI-Storage-Virtual>> Disk

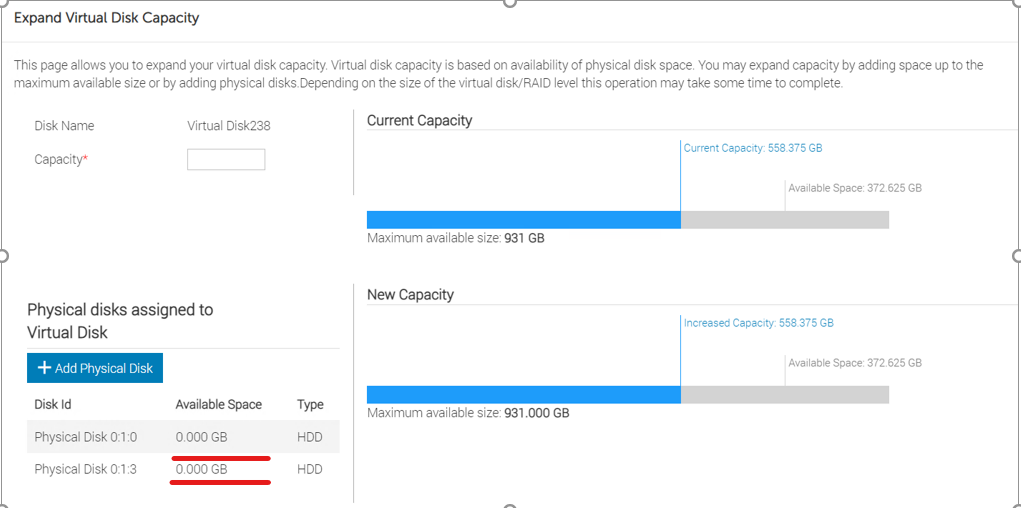

A coluna Available Space mostra 0,00 GB depois de selecionar Edit Disk Capacity:
Página iDRAC WebGUI-Expand> Virtual Disk Capacity

Figura 3: página iDRAC WebGUI-Expand> Virtual Disk Capacity.

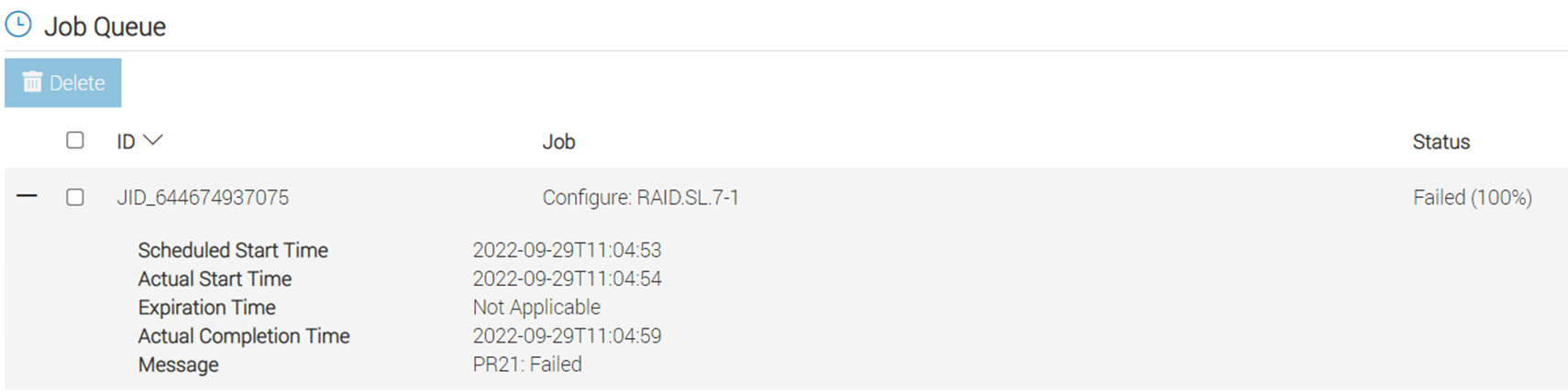

A operação falha ao tentar expandir a capacidade do disco virtual digitando o tamanho máximo disponível no campo Capacity :Mensagem de erro da fila de trabalhos

Figura 4: Mensagem de erro da fila de trabalhos

Se houver espaço disponível em um array existente, use o comando PERCCLI utilitário para expandir.

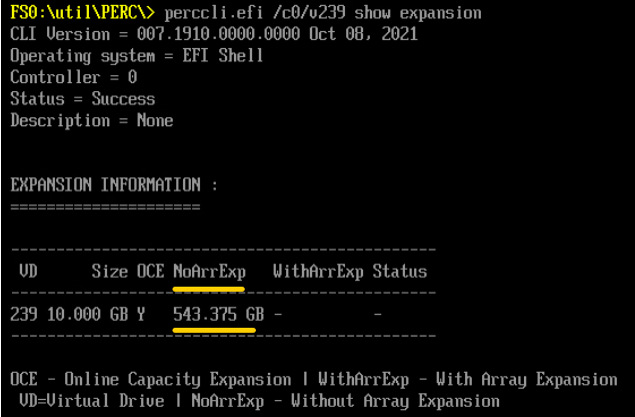

PERCCLI /cx/vx show expansion mostra o espaço disponível em NoArrExp.Saída PERCCLI NoArrExp

Figura 5: PERCCLI Saída NoArrExp

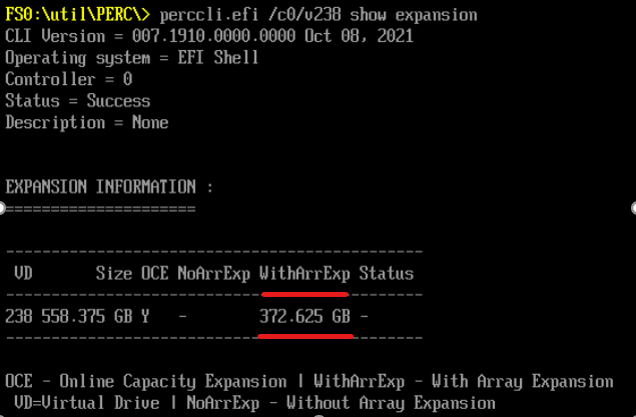

No entanto, se os discos rígidos em um grupo de discos tiverem sido substituídos por discos maiores, o espaço disponível aparecerá em WithArrExp no PERCCLI /cx/vx show expansion Saída:Saída PERCCLI WithArrExp

Figura 6: PERCCLI Saída WithArrExp

Cause

O utilitário de configuração PERC HII e o iDRAC não são compatíveis com a expansão da capacidade do array.

Resolution

Expandindo a capacidade do array usando o PERCCLI Utilitário:


1. Run "perccli /cx/vx show expansion" to determine the available expansion space.

2. Then run "perccli /cx/vx expand Size=<xx> expandarray" to perform the array expansion.

            The expand command will expand the virtual drive within the existing array if there is available space, or expand into additional capacity if the drives have been replaced with larger ones.
            The <xx> size value is specified in MB.
            If the "expandarray" option is specified, the full array capacity will be expanded.
            If this option is not specified, only the virtual drive capacity will be expanded rather than the full array.

Depois de substituir todos os membros do array por unidades maiores, use o comando PERCCLI Utilitário para expandir o disco virtual existente para um tamanho maior usando o expandarray parâmetro.

Esse comportamento também está documentado no Guia do usuário do PERC11, na seção "Recursos do PowerEdge RAID Controller 11" —> "reconfigurando discos virtuais"https://www.dell.com/support/home/en-us/product-support/product/perc-h755/docs
