PowerFlex: PFMP License Error ASMCOMMONS.0070 Appears Before GW Upgrade

Summary: Before completing a full One-Time Migration (OTM) and upgrading from version 3.x to 4.x, applying a PowerFlex license results in the error code ASMCOMMONS.0070.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

  • The correct XML file format has no special characters.
  • All Resources and Resource Groups (RGs) are green and healthy.

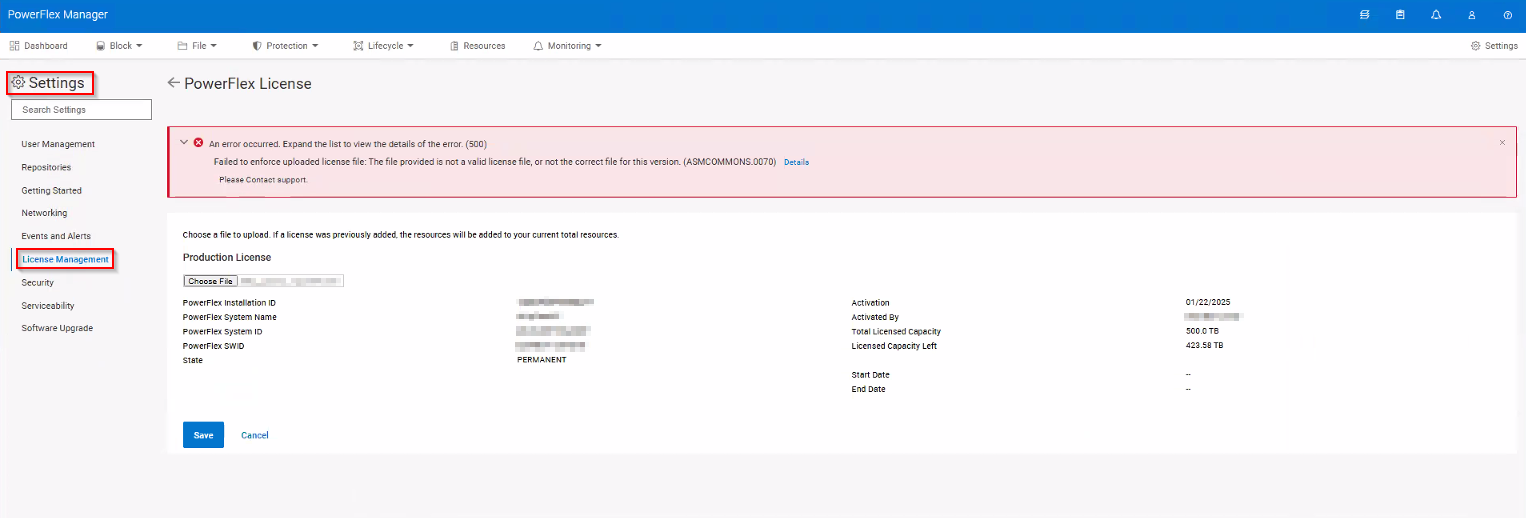

Error in the UI after attempting to apply for the Production license:

PowerFlex License error


asmui.stdout.log
2024-07-31T15:39:32.402654894-05:00 stdout F   "stackTrace" : [ ],
2024-07-31T15:39:32.402657319-05:00 stdout F   "suppressedExceptions" : [ ],
2024-07-31T15:39:32.402659746-05:00 stdout F   "status" : 500,
2024-07-31T15:39:32.402662113-05:00 stdout F   "timestamp" : "2024-07-31T20:39:32.907+00:00",
2024-07-31T15:39:32.402664713-05:00 stdout F   "error" : "HTTP 500 Internal Server Error",
2024-07-31T15:39:32.402667099-05:00 stdout F   "path" : "/alcm/license",
2024-07-31T15:39:32.402669532-05:00 stdout F   "messages" : [ {
2024-07-31T15:39:32.402671864-05:00 stdout F     "id" : null,
2024-07-31T15:39:32.402674325-05:00 stdout F     "messageBundle" : "ASMCommons",
2024-07-31T15:39:32.402676853-05:00 stdout F     "messageCode" : "ASMCOMMONS.0070",
2024-07-31T15:39:32.402679923-05:00 stdout F     "severity" : "ERROR",
2024-07-31T15:39:32.402682359-05:00 stdout F     "category" : "USER_FACING",
2024-07-31T15:39:32.402685349-05:00 stdout F     "displayMessage" : "Failed to enforce uploaded license file: The file provided is not a valid license file, or not the correct file for this version.",
2024-07-31T15:39:32.402688057-05:00 stdout F     "responseAction" : "Please Contact support.",



Impact

Unable to apply for a PowerFlex license.

Cause

During an OTM, if the PowerFlex gateway (GW), named in the UI "PowerFlex System" (PowerFlex 4.x), has not yet been upgraded and the license is being imported into the system, the license details may differ from the system details saved in the GW (PowerFlex 3.x).

PowerFlex Manager Platform (PFMP) requires consistent system details for certificate validation.

Resolution

Finish the upgrade process (OTM) before applying a PowerFlex license.

Related article: PowerFlex PFMP: Unable to Apply PowerFlex License, Receive Error Code ASMCOMMONS.0070

Additional Information

Impacted Version

Working as designed.

Fixed In Version

Not a PowerFlex issue

Affected Products

PowerFlex rack RCM Software
