PowerFlex 4.8: UI Inaccessible or Unstable after 4.8 Upgrade, Failed to Initialize

During the upgrade of PFMP to version 4.8, the LifeCycle Management (LCM) process initiates the upgrade and updates the asmmanager service to reflect the new version. The asmmanager displays version 4.8 in the CLI.

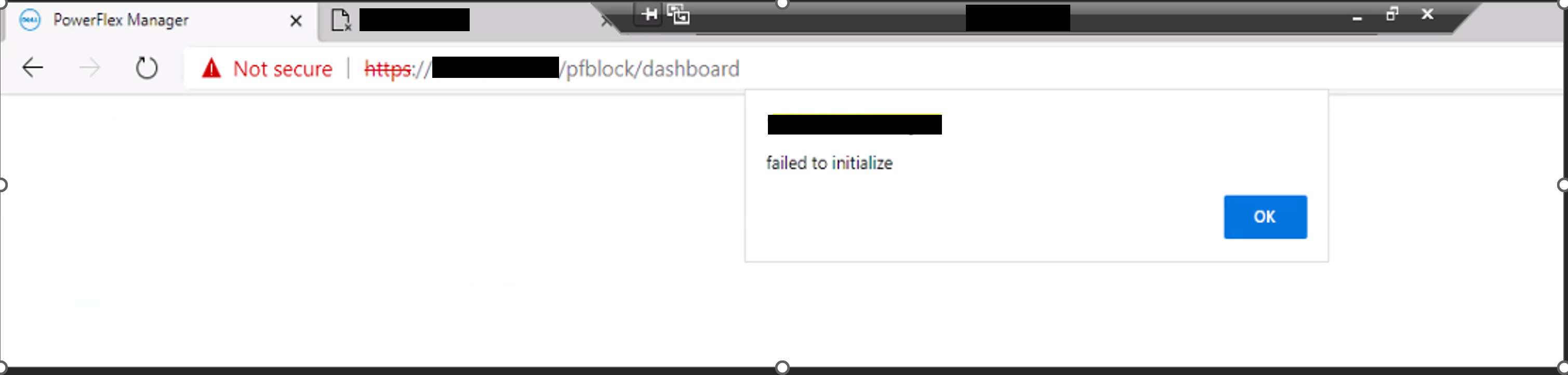

When a user tries to log in to the UI, the login screen fails to load with an error message, failed to initialize:

Running the below command verifies the PFMP version:

kubectl describe hr -n powerflex asmmanager | grep "Pfmp Version"

Example:

Alcm log:

2025-12-05T11:15:20.219571554-06:00 stdout F 2025-12-05 17:15:20 [pool-4-thread-1] (UpgradePFMP.java:1645) [DEBUG] Downloading file from http-share: https://1.1.1.2:443/httpshare/download/Upgrade/apps.json
2025-12-05T11:46:51.1681345-06:00 stdout F 2025-12-05 17:46:51 [pool-4-thread-1] (UpgradePFMP.java:351) [ERROR] The upgrade failed: LCMUpdate job: applicationupdate-4.8.0.0-1344 failed
...
2025-12-05T12:16:53.623276235-06:00 stdout F 2025-12-05 18:16:53 [pool-4-thread-1] (UpgradePFMP.java:351) [ERROR] The upgrade failed: platform-manager pod is not running after waiting for 15 minutes.
2025-12-05T12:16:53.623299714-06:00 stdout F    at com.dell.asm.business.platform.UpgradePFMP.executeSafely(UpgradePFMP.java:326) [!/:4.8.0-SNAPSHOT]

LCM update job:

Last Log:                        Applications Update failed. (apps update status) failed handling request to platform manager during Applications update. Maximum allowed errors reached (48 of 48). Aborting the application upgrade process.
      Started At:                      12-05-2025 17:15:32.285704916
      Update Status:                   failed

The platform manager reports token errors:

2025-12-05T11:46:04.917310164-06:00 stdout F number of logger handlers are : 1
2025-12-05T11:46:04.917324193-06:00 stdout F {"message": "The token is not yet valid (iat)", "taskName": null, "node_name": "pfmp02", "node_ip": "1.2.2.2", "pod_namespace": "powerflex", "pod_ip": "10.42.1.173", "pod_name": "platform-manager-7598f54cdc-jx4pf", "pod_service_account": "platform-manager", "container_name": "platform-manager", "component_id": "Platform-manager", "log_type": "audit", "raised_timestamp": "2025-12-05T17:46:04.000Z", "identity": "platform-manager", "resource_id": "platform-manager", "resource_type": "audit-events", "resource_name": "platform-manager", "severity": "ERROR", "id": "75948fae-80db-4ea7-99e7-50cb6394ec7f"}

Impact

Failure to log in to the UI, or see current and up-to-date information.

PFMP 4.8 introduces several new Helm Releases (HRs) that must be installed for the upgrade to complete successfully:

block-alerts-engine
block-db-accessor
block-model-injector
bootstrapper-frontend
bootstrapper-service
cmo-cert-manager
cmo-cert-node-controller
ipam
mdm-accessor
mdm-engine
pfmp-diagnostics-engine
pfmp-maintenance-manager
pfmp-maintenance-ui
pfmp-security-engine
pfmp-swagger
powerflex-cli

The issue occurs because the upgrade process updates the asmmanager service to version 4.8 and sets its values.pfmpVersion to the new product version prematurely. This version information is displayed in the UIs About screen, giving the impression that the upgrade was successful even though the process is incomplete.

The installation of the new Helm services, including critical components like IPAM, happens after the version update. If these services fail to install, the cluster remains partially upgraded, missing essential services required for UI functionality. The UI fails to load and displays the error failed to initialize.


To validate the existence of the HRs, run the following commands on any MVM:

installed=$(helm list -A -q); expected="block-alerts-engine block-db-accessor block-model-injector bootstrapper-frontend bootstrapper-service cmo-cert-manager cmo-cert-node-controller ipam mdm-accessor mdm-engine pfmp-diagnostics-engine pfmp-maintenance-manager pfmp-maintenance-ui pfmp-security-engine pfmp-swagger powerflex-cli"; missing=""; for hr in $expected; do echo "$installed" | grep -qx "$hr" || missing="${missing}Missing: ${hr}\n"; done; if [ -z "$missing" ]; then echo "All Expected Helm Releases Are Present."; else printf "%b" "Missing Expected Helm Releases:\n$missing"; fi

If any of the HRs are missing, they must be installed manually:

1. Download the attached helmrelease48fix_pkb_en_US_1.zip file. (Do not change the file name, otherwise the commands below must be adjusted accordingly)
2. Upload the file to any of the MVMs into the /tmp/ directory.
3. Enter the /tmp/ directory and extract the file:

cd /tmp/; work_dir="missing_helm_releases_recovery"; mkdir $work_dir; unzip helmrelease48fix_pkb_en_US_1.zip -d $work_dir; cd $work_dir

Example:

~$ cd /tmp/; work_dir="missing_helm_releases_recovery"; mkdir $work_dir; unzip helmrelease48fix_pkb_en_US_1.zip -d $work_dir; cd $work_dir
Archive:  missing_helm_releases_recovery.zip
  inflating: missing_helm_releases_recovery/block-alerts-engine.json
  inflating: missing_helm_releases_recovery/block-db-accessor.json
  inflating: missing_helm_releases_recovery/block-model-injector.json
  inflating: missing_helm_releases_recovery/bootstrapper-frontend.json
  inflating: missing_helm_releases_recovery/bootstrapper-service.json
  inflating: missing_helm_releases_recovery/cmo-cert-manager.json
  inflating: missing_helm_releases_recovery/cmo-cert-node-controller.json
  inflating: missing_helm_releases_recovery/install_48_apps.sh
  inflating: missing_helm_releases_recovery/ipam.json
  inflating: missing_helm_releases_recovery/mdm-accessor.json
  inflating: missing_helm_releases_recovery/mdm-engine.json
   creating: missing_helm_releases_recovery/orig/
  inflating: missing_helm_releases_recovery/orig/block-alerts-engine.json
  inflating: missing_helm_releases_recovery/orig/block-alerts-engine.yaml
  inflating: missing_helm_releases_recovery/orig/block-db-accessor.json
  inflating: missing_helm_releases_recovery/orig/block-db-accessor.yaml
  inflating: missing_helm_releases_recovery/orig/block-model-injector.json
  inflating: missing_helm_releases_recovery/orig/block-model-injector.yaml
  inflating: missing_helm_releases_recovery/orig/bootstrapper-frontend.json
  inflating: missing_helm_releases_recovery/orig/bootstrapper-frontend.yaml
  inflating: missing_helm_releases_recovery/orig/bootstrapper-service.json
  inflating: missing_helm_releases_recovery/orig/bootstrapper-service.yaml
  inflating: missing_helm_releases_recovery/orig/cmo-cert-manager.json
  inflating: missing_helm_releases_recovery/orig/cmo-cert-manager.yaml
  inflating: missing_helm_releases_recovery/orig/cmo-cert-node-controller.json
  inflating: missing_helm_releases_recovery/orig/cmo-cert-node-controller.yaml
  inflating: missing_helm_releases_recovery/orig/ipam.json
  inflating: missing_helm_releases_recovery/orig/ipam.yaml
  inflating: missing_helm_releases_recovery/orig/mdm-accessor.json
  inflating: missing_helm_releases_recovery/orig/mdm-accessor.yaml
  inflating: missing_helm_releases_recovery/orig/mdm-engine.json
  inflating: missing_helm_releases_recovery/orig/mdm-engine.yaml
  inflating: missing_helm_releases_recovery/orig/pfmp-diagnostics-engine.json
  inflating: missing_helm_releases_recovery/orig/pfmp-diagnostics-engine.yaml
  inflating: missing_helm_releases_recovery/orig/pfmp-maintenance-manager.json
  inflating: missing_helm_releases_recovery/orig/pfmp-maintenance-manager.yaml
  inflating: missing_helm_releases_recovery/orig/pfmp-maintenance-ui.json
  inflating: missing_helm_releases_recovery/orig/pfmp-maintenance-ui.yaml
  inflating: missing_helm_releases_recovery/orig/pfmp-security-engine.json
  inflating: missing_helm_releases_recovery/orig/pfmp-security-engine.yaml
  inflating: missing_helm_releases_recovery/orig/pfmp-swagger.json
  inflating: missing_helm_releases_recovery/orig/pfmp-swagger.yaml
  inflating: missing_helm_releases_recovery/orig/powerflex-cli.json
  inflating: missing_helm_releases_recovery/orig/powerflex-cli.yaml
  inflating: missing_helm_releases_recovery/pfmp-diagnostics-engine.json
  inflating: missing_helm_releases_recovery/pfmp-maintenance-manager.json
  inflating: missing_helm_releases_recovery/pfmp-maintenance-ui.json
  inflating: missing_helm_releases_recovery/pfmp-security-engine.json
  inflating: missing_helm_releases_recovery/pfmp-swagger.json
  inflating: missing_helm_releases_recovery/powerflex-cli.json
  inflating: missing_helm_releases_recovery/README.txt
/tmp/missing_helm_releases_recovery$

4. Run the recovery script:

chmod +x install_48_apps.sh
./install_48_apps.sh

5. Once the script completes installing the missing HRs, it prints "The script finished successfully." If seen otherwise or any issues encountered, contact Dell Support for assistance.

6. If after applying the script, the UI is still inaccessible, run the following command to restart the Keycloak pods:

   NAMESPACE="powerflex"; TIMEOUT=120; SECONDS=0; pods=$(kubectl get pods -n $NAMESPACE --no-headers | awk '/keycloak/ {print $1}')
   if [ -n "$pods" ]; then
       kubectl delete pods -n $NAMESPACE $pods --wait=false
   fi; echo "[INFO] Waiting for Keycloak pods to become healthy..."
   while [ $SECONDS -lt $TIMEOUT ]; do
       out="$(kubectl get pods -n $NAMESPACE --no-headers | grep "keycloak" | grep -v "Terminating" | awk '{print $1, $2, $3}')"
       if [[ -z "$out" ]]; then
           echo "[INFO] No Keycloak pods found yet; waiting..."
       elif echo "$out" | awk '{split($2,a,"/"); if ($3!="Running" || a[1]!=a[2]) bad=1} END{exit bad}'; then
           echo "[SUCCESS] Keycloak pods are in a Healthy state. Please refresh the UI."; exit 0
       else
           echo "[WAIT] $((TIMEOUT - SECONDS))s remaining. Current status:"; echo "$out"
       fi; sleep 3
   done; echo "[ERROR] Timeout reached. Keycloak pods failed to become healthy. Please contact PowerFlex Support for assistance."; exit 1

   Once the pods are back to Healthy state, refresh the UI tab.

Impacted Versions

PFMP 4.8


Fixed In Version

PFMP 4.8.0.1
