DPA: Data Domain Frame Utilization report shows an incorrect Data Domain capacity value

Summary: The Frame Utilization reports the capacity column shows less size compared to Data Domain utilization.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

In Data Protection Advisor (DPA), the Data Domain Frame Utilization report shows lower capacity than the values displayed in the Data Domain capacity report.

kA2f100000006acCAA_3_0

kA2f100000006acCAA_3_1

Cause

Data Domain reports include Active and Cloud Tier usage, while the DPA Frame Utilization report excludes Cloud Tier data, causing differences.

Resolution

DPA is working as designed. The Data Domain Frame Utilization report only returns information about Active Tier.

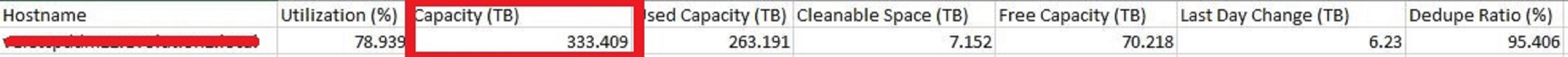

DPA Data Domain Frame Utilization report:
kA2f100000006acCAA_2_0

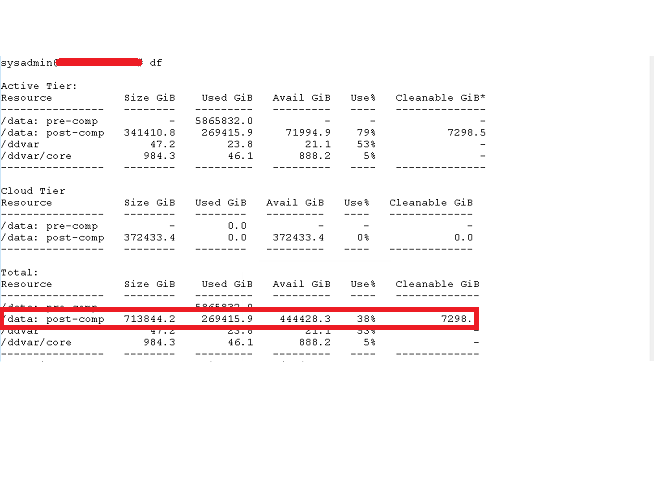

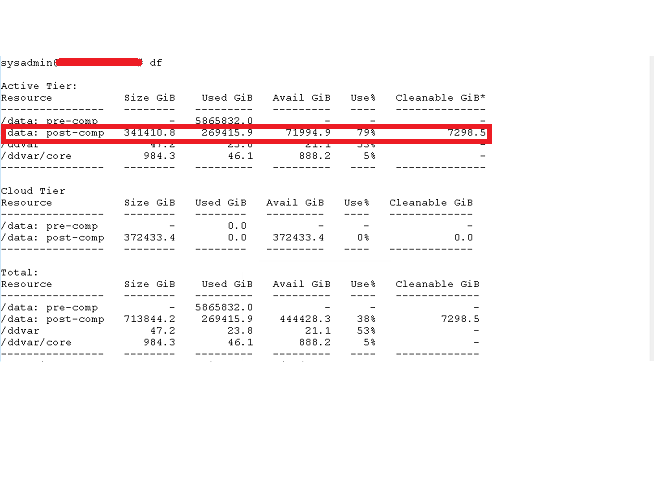

Data Domain df command output:
kA2f100000006acCAA_2_1
The Data Domain Tier Utilization report includes information about the Data Domain Cloud Tier.

Additional Information

Data Domain Administration Guide and Command List Manual provide information about how to view Data Domain space utilization (see Dell Support).
