Avamar: PDM Fails With Error Deploying Proxy

Summary: Avamar: Deploying proxies using the Proxy Deployment Manager (PDM) fails: "Error deploying proxy".

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Deploying proxies using Proxy Deployment manager fails with Error deploying proxy.

For example:

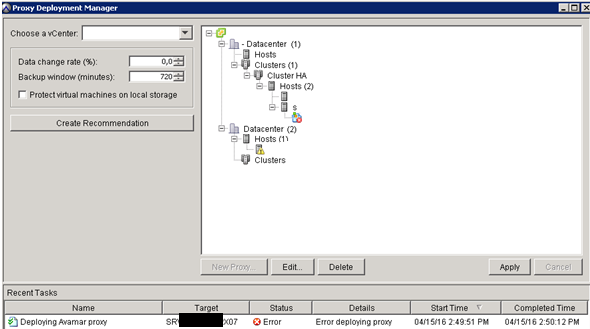

Proxy Deployment Manager Error

Cause

The Avamar Utility node cannot communicate with the ESX host on port 443 during Proxy Deployment.

From the deploymanager.log (in /data01/avamar/var/log/vcs/ /tmp/proxydeploy/vcs/_

2016-05-15T21:57:10.329-0700 TRACE [cTaskExecutor-4][ impl.ConnectionManagerService# closeTicket]: Closing connection manager ticket: ...6c4657958ef8
2016-05-15T21:57:12.503-0700 TRACE [Thread-22 ][ util.VcConnection# keepAlive]: Keep-aliving VC session
2016-05-15T21:57:12.504-0700 TRACE [Thread-22 ][ impl.ConnectionManagerService# sendKeepAlive]: Keep-alive connection manager session: ...0de2820e9fc9
2016-05-15T21:57:12.611-0700 DEBUG [Thread-23 ][ worker.TaskWorker# updateProgress]: Updating task progress: 0
2016-05-15T21:57:12.616-0700 DEBUG [Thread-23 ][ events.VCSEvent# send]: Sending event: template: org.springframework.amqp.rabbit.core.RabbitTemplate@59074829 com.emc.avamar.vmware.vcs.deploymanager.deploy.status_event: com.emc.avamar.vmware.events.VCSEvent@2bf66009
2016-05-15T21:57:13.559-0700 ERROR [pool-8-thread-2][ worker.DeployWorker# run]: Error deploying proxy
java.net.ConnectException: Connection timed out
at java.net.PlainSocketImpl.socketConnect(Native Method)
at java.net.AbstractPlainSocketImpl.doConnect(Unknown Source)
at java.net.AbstractPlainSocketImpl.connectToAddress(Unknown Source)
at java.net.AbstractPlainSocketImpl.connect(Unknown Source)
at java.net.SocksSocketImpl.connect(Unknown Source)
at java.net.Socket.connect(Unknown Source)
at sun.security.ssl.SSLSocketImpl.connect(Unknown Source)
at sun.security.ssl.BaseSSLSocketImpl.connect(Unknown Source)
at sun.net.NetworkClient.doConnect(Unknown Source)
at sun.net.www.http.HttpClient.openServer(Unknown Source)
at sun.net.www.http.HttpClient.openServer(Unknown Source)
at sun.net.www.protocol.https.HttpsClient.<init>(Unknown Source)
at sun.net.www.protocol.https.HttpsClient.New(Unknown Source)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.getNewHttpClient(Unknown Source)
at sun.net.www.protocol.http.HttpURLConnection.plainConnect(Unknown Source)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.connect(Unknown Source)
at sun.net.www.protocol.http.HttpURLConnection.getOutputStream(Unknown Source)
at sun.net.www.protocol.https.HttpsURLConnectionImpl.getOutputStream(Unknown Source)
at com.emc.avamar.vmware.deploymanager.worker.DeployWorker.uploadVmdkFile(DeployWorker.java:917)
at com.emc.avamar.vmware.deploymanager.worker.DeployWorker.run(DeployWorker.java:340)
at java.util.concurrent.Executors$RunnableAdapter.call(Unknown Source)
at java.util.concurrent.FutureTask.run(Unknown Source)
at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
at java.lang.Thread.run(Unknown Source)

Resolution

Allow the communication between the Avamar grid and the ESXi hosts on port 443 as mentioned in Avamar for VMware user guide:

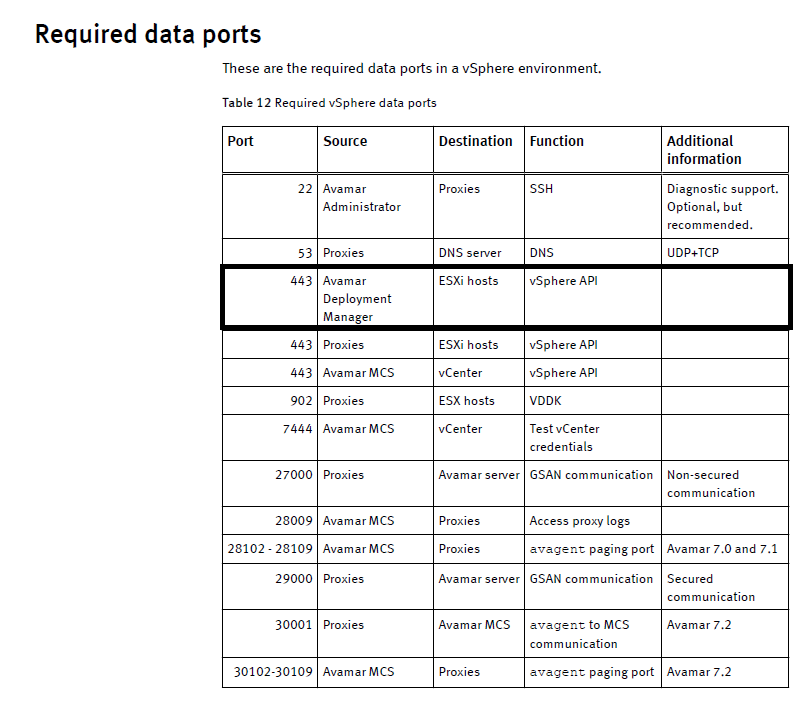

Table of required Data Ports
