PowerEdge: PERC12 - H965 controller supported stripe element size
Summary: This article talks about the PERC H965 controller's supported virtual disk stripe sizes.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The stripe element size can be selected when creating the virtual disk (VD). Options include 64 KB and 256 KB.
For hard drive, choose either 64 KB or 256 KB. For solid state drive (SSD), only the 64 KB option is available.

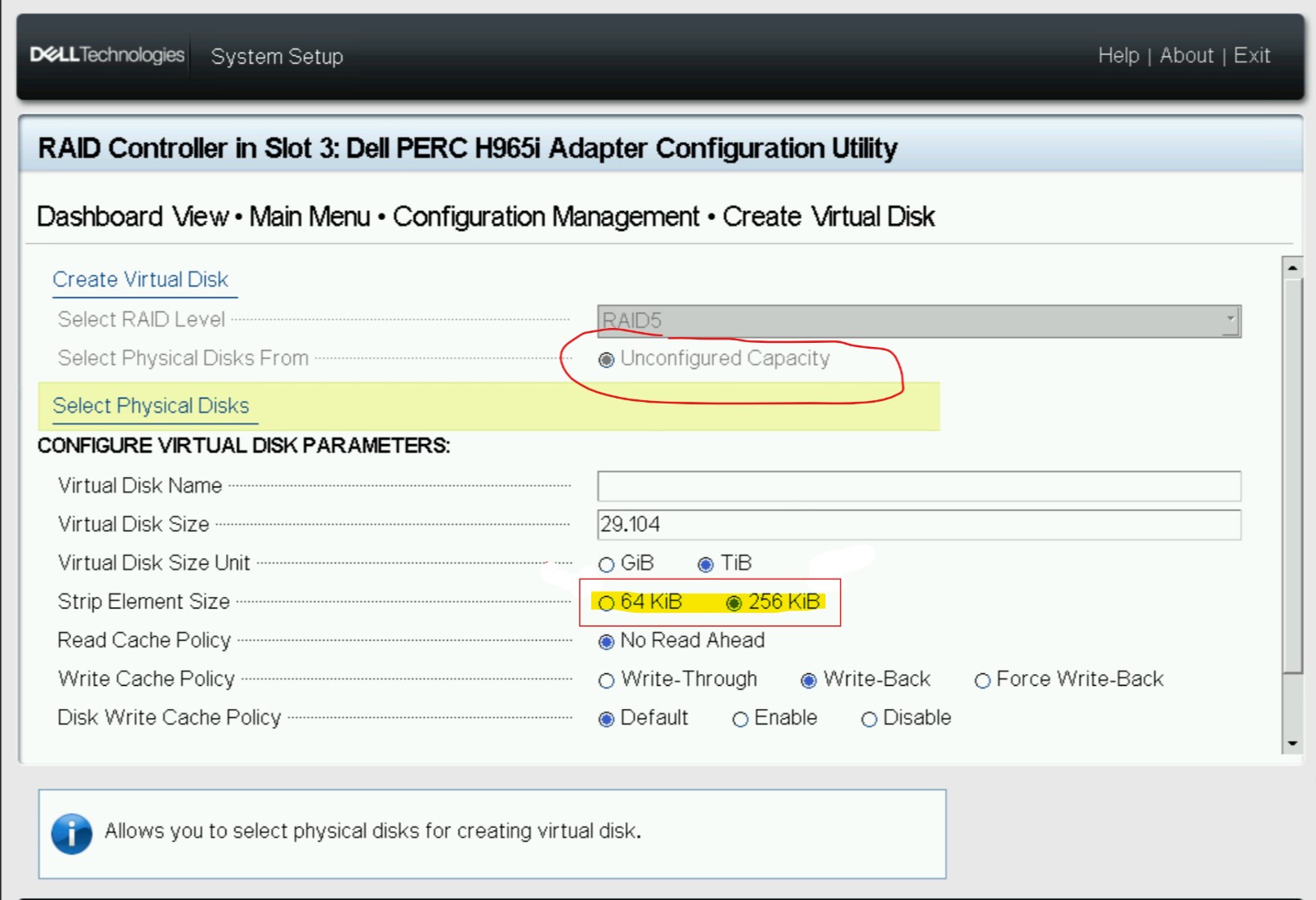

Example of where the Stripe Element size option is selected.
For hard drive, choose either 64 KB or 256 KB. For solid state drive (SSD), only the 64 KB option is available.
Example of where the Stripe Element size option is selected.
Cause
This is working as designed.
Resolution
All SSD virtual disks (SAS, SATA, NVMe) are created using a 64 KB stripe element size. All hard drive virtual disks have selectable options of 64 KB or 256 KB.
Affected Products
PowerEdge RAID Controller H965i Adapter, PowerEdge RAID Controller H965i Front, PowerEdge RAID Controller H965i MX, PowerEdge C6620, PowerEdge HS5610, PowerEdge HS5620, PowerEdge MX760c, PowerEdge R660, PowerEdge R660xs, PowerEdge R6615
, PowerEdge R6625, PowerEdge R760, PowerEdge R760XA, PowerEdge R760xd2, PowerEdge R760xs, PowerEdge R7615, PowerEdge R7625, PowerEdge R860, PowerEdge R960, PowerEdge RAID Controller H965e Adapter, PowerEdge T560, PowerEdge XE9680, PowerEdge XR5610, PowerEdge XR7620
...
