PowerFlex 4.X: Configuring SNMP on the resources for webhook

Summary: For the SNMP alerts to be forwarded to a site like BigPanda, the load balancer IP address of the management virtual machine is configured on each of the resources individually.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

Configuring SNMP on the resources for webhook

For the SNMP alerts to be forwarded to a site like BigPanda, the load balancer IP address of the management virtual machine is configured on each of the resources individually.

The resources like CloudLink, IDRAC, and the switches should be discovered and managed in PowerFlex Manager.


Note: For a webhook destination, SNMPv3 is supported for iDRAC.


SNMPv2c is supported for all resource types like CloudLink, iDRAC, and switches.

Identify the SNMP load balancer IP address.

Use this procedure to identify the SNMP load balancer IP address on the management virtual machines.

Steps

To identify the load balancer IP address on the management virtual machine, type:

#kubectl get svc -A |grep -i LoadBalancer

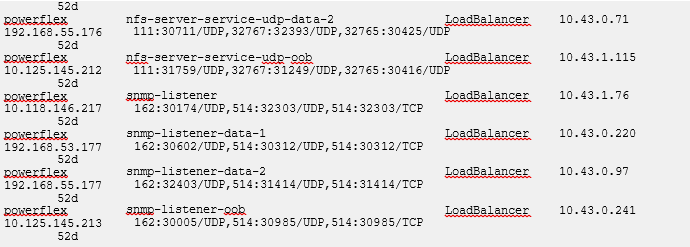

Example output:

example output 1 example output 2

If an OOB SNMP load balancer IP address is not listed, see article PowerFlex 4.0.1 SNMP or syslog alerts not working due to missing OOB load balancer IP

Additional Information

See Dell PowerFlex Appliance with PowerFlex 4.x Administration Guide
