PowerEdge: The number of physical disks created by the PERC H755 management interface creating RAID5 and iDRAC interfaces is inconsistent

Zusammenfassung: This article provides a resolution regarding inconsistent number of physical disks created by the PowerEdge PERC H755 management interface creating RAID5 and iDRAC interfaces.

Dieser Artikel gilt für Dieser Artikel gilt nicht für Dieser Artikel ist nicht an ein bestimmtes Produkt gebunden. In diesem Artikel werden nicht alle Produktversionen aufgeführt.

Symptome

The number of physical disks displayed in the PERC H755 management interface to create RAID5 and iDRAC to create RAID5 is inconsistent.

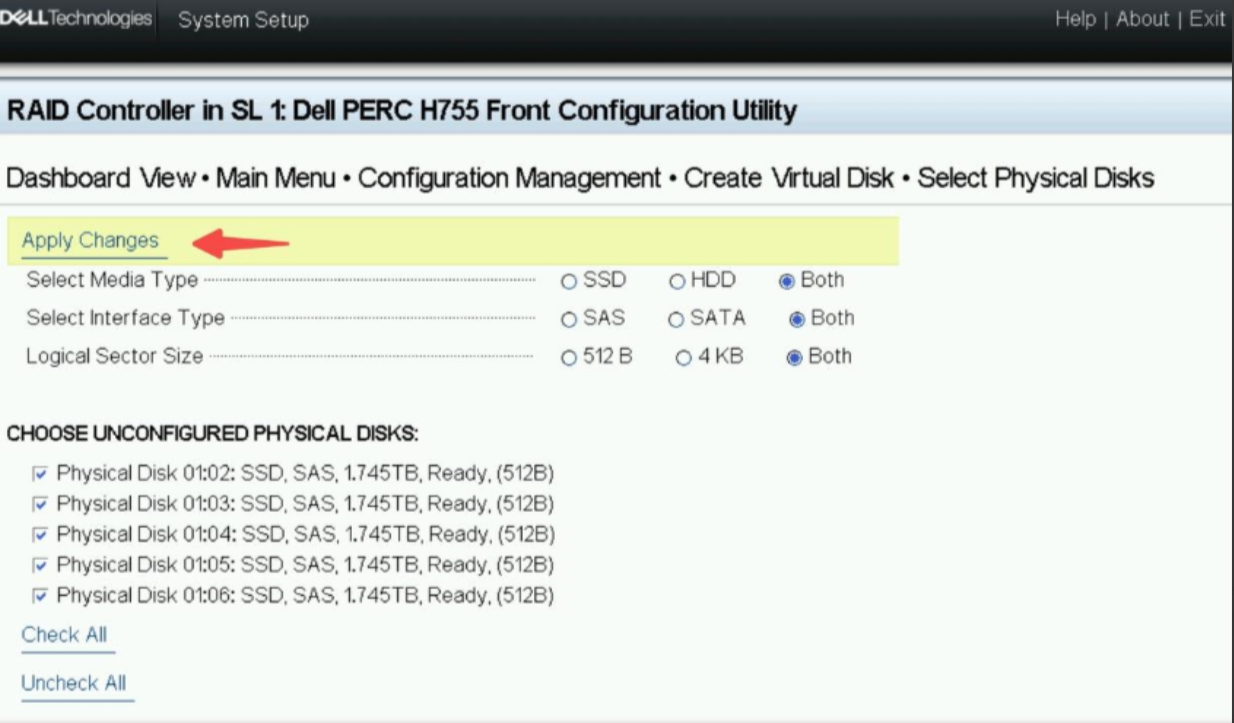

The PERC H755 management interface displays 5 physical disks

The PERC H755 management interface displays 5 physical disks

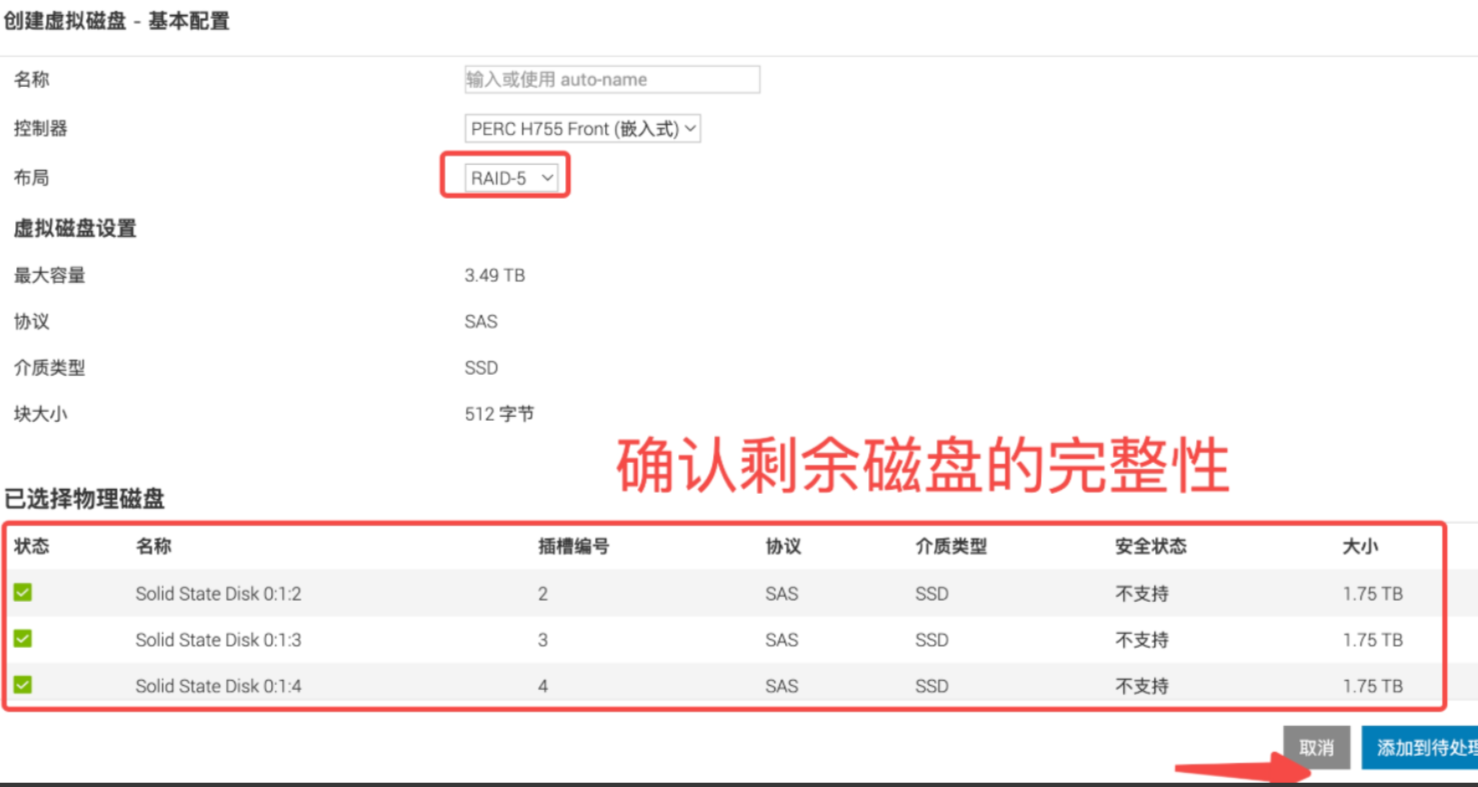

The iDRAC interface creates RAID5 and can display only 3 physical disks

The iDRAC interface creates RAID5 and can display only 3 physical disks



Ursache

The iDRAC interface creates a virtual disk with RAID5 selected in Basic Configuration, and only 3 disks are displayed by default.

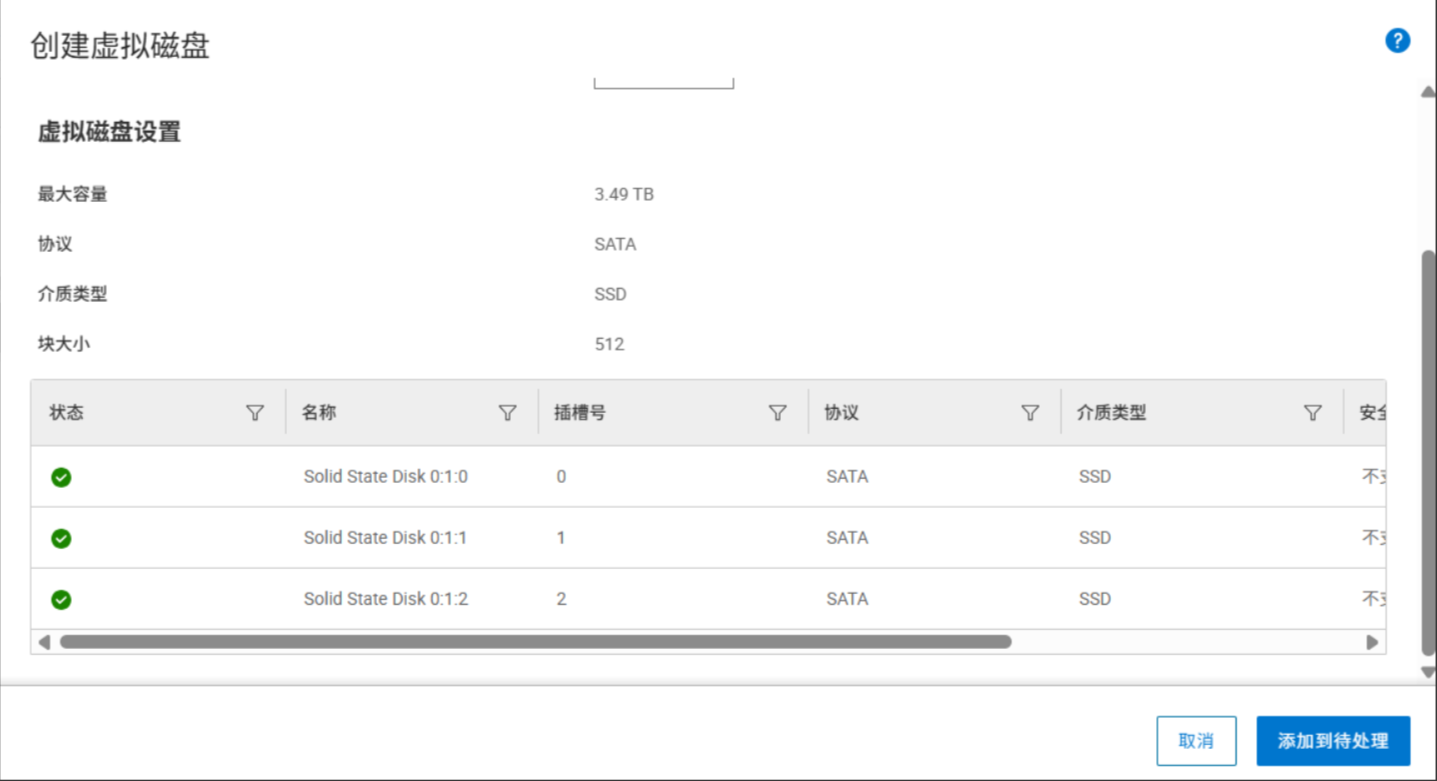

Base Configurations

Lösung

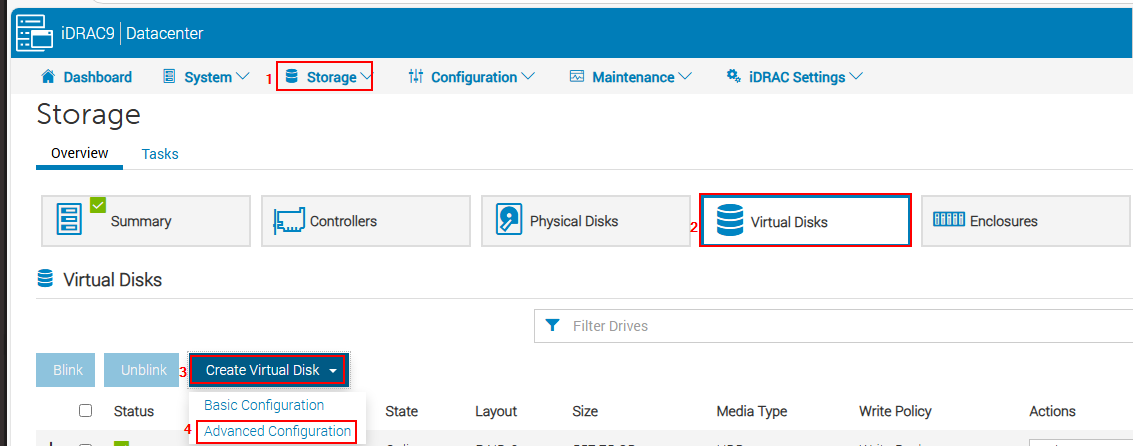

The iDRAC management interface --- Storage--- Virtual Disks--- Create Virtual Disks--- Advanced Configuration RAID5 displays all available physical disks and PERC The physical disk information of the H755 management interface for creating a RAID5 is the same.

Advanced Configuration



Betroffene Produkte

PERC9/SAS HBAs, PowerEdge RAID Controller H755 Adapter, PowerEdge RAID Controller H755 Front SAS, PowerEdge R760
