PowerEdge: PERC Shows as Missing in R740/R740xd After Parts Replacement

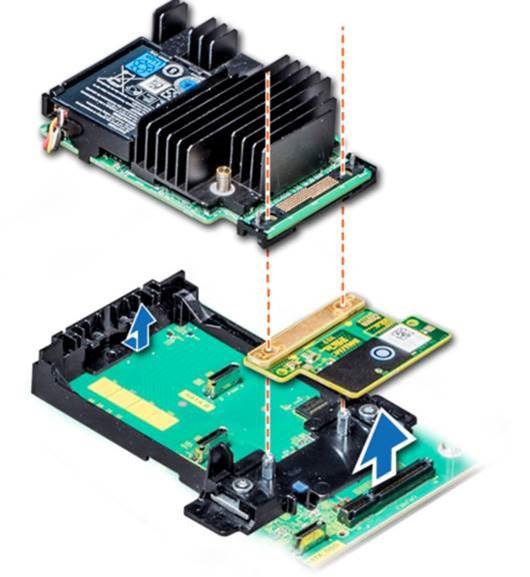

Summary: PowerEdge R740 and R740xd, but not the R740xd2, use the Mini PERC interposer (04M4C). In R730 servers this was referred to as onboard C-stack.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Failure to install the Mini PERC interposer results in the PERC appearing as missing, errors in the logs, and missing drives.
Cause
The Interposer board is required for the PERC connection to the motherboard, if it is not properly connected the PERC has no connection to the Motherboard.
Resolution
Solution:
If the PERC is not showing up after replacing or reseating parts in a R740 or R740xd system, verify that the Mini PERC interposer is installed, and replace it when necessary.
