TL1000: How to Collect Tape Library Diagnostic Logs

Summary: This article explains how to collect diagnostic logs from a PowerVault TL1000 tape library and its drives via the web management interface.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

No specific error messages or observable symptoms are listed in the source material.

Cause

No root cause analysis is provided in the source documentation.

Resolution

Prerequisites

  • The library management interface IP address must be reachable.
  • Java must be installed on the client machine.
  • Access to the web interface of the TL1000.

Collect Tape Library Logs

  1. Open a web browser and navigate to the library management interface.

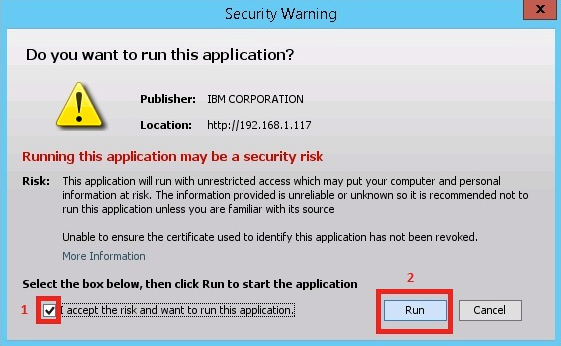

  2. Accept the Java security warning by selecting "I accept the risk and want to run this application" and click Run.
  3. Log in with administrator credentials. Default credentials are:
    Account admin
    Password secure
  4. Click on Download Library Logs in the left‑side menu.
  5. Click Browse, choose a destination folder and file name, then click Download.
  6. Confirm the offline operation when prompted and click Yes. The download will start.
  7. After the download completes, acknowledge the completion dialog and click OK.
  8. When asked to bring the library back online, click Yes and confirm the success message.
    Online command successful



SLN303462_en_US__32 - Copy

Collect Tape Drive Logs

The procedure mirrors the library log collection.

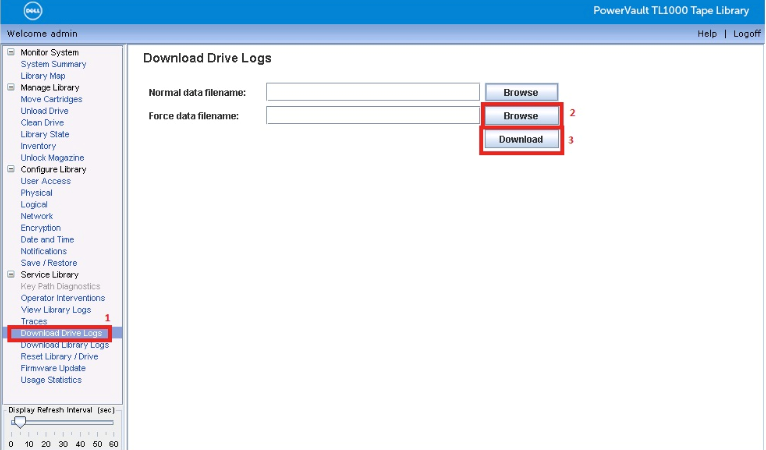

  1. In the management interface, select Download Drive Logs from the left‑side menu.
  2. Click Browse, choose a destination folder and file name, then click Download.
  3. Confirm any prompts and wait for the download to finish.



SLN303462_en_US__510



Affected Products

Dell EMC ML3, PowerVault TL1000
