USB-C Cable Damage Causing Charging or Display Issues

Your Dell laptop and monitor connect with a USB-C cable. When the cable gets damaged, you might notice:

• Your monitor shows no picture or video signal
• Your laptop doesn't charge
• Both issues occur at the same time
• The connection works sometimes but not other times

Why this happens

Your USB-C cable has small metal pins inside the connector. When these pins bend or break, they can't make proper contact with your devices. This stops the power and video signal from getting through.

How USB-C cables get damaged

Most cable damage happens during everyday use when:

• Unplugging at an angle: Pulling the cable out sideways instead of straight
• Using too much force: Yanking the cable quickly or pulling hard
• Bending while plugged in: Putting pressure on the cable near the connector
• Something pressing on it: Objects sitting on top of the cable
• Rough handling: Dropping or twisting the cable

What damaged cables look like

Check both ends of your USB-C cable for these signs of damage:

External damage you can easily spot

Bent connector housing

The metal part that plugs in should be straight. If it's tilted or bent, the cable won't make good contact. Check both ends of your USB-C cable for these types of damage:

Figure 1: Two USB-C connectors held side by side, left connector shows bent metal plug while right connector is straight and undamaged

Figure 2: Damaged USB-C connector with metal connector bent

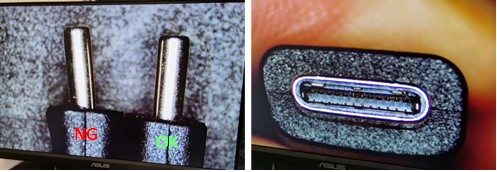

Figure 3: Two-part image showing bent USB-C metal connector labeled NG next to straight connector labeled OK on left, and close-up of USB-C port interior with missing or broken pins on right

Cracks in the plastic housing

Look for cracks or splits in the plastic part of the connector. Even small cracks mean the cable needs replacing.

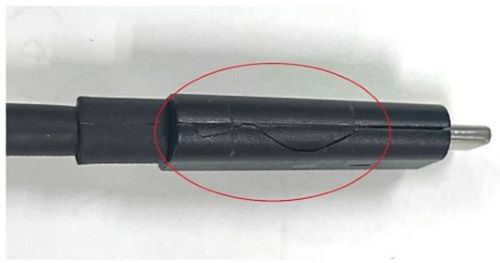

Figure 4: USB-C connector with visible crack in the plastic housing highlighted by red circle

Damage where cable meets connector

Check where the cable connects to the plug. If you see exposed wires, tears, or the cable looks stretched, it's damaged.

Figure 5: USB-C connector showing severe cable bending damage at junction between cable and plastic housing, strain relief failure

Separated or broken casing

The metal shield around the connector should be intact. If it's separated, broken, or loose, replace the cable.

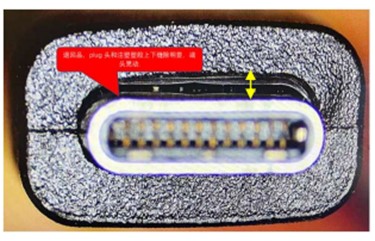

Figure 6: USB-C connector with damaged outer metal shield and separated casing

Internal damage (look closely inside the connector)

Bent or missing pins

Shine a light into the connector and look at the small metal pins inside. They should all be straight and present.

Figure 7: USB-C connector showing broken and missing internal pins

Figure 8: Ruptured USB-C connector with torn housing and exposed wires from rough handling

If your cable is damaged, replace it immediately

What you need:

A USB-C cable that supports both charging and video. Look for cables labelled:

• USB-C with Power Deliver (PD)
• DisplayPort Alt Mode support

For best results, use a genuine Dell USB-C cable

Where to get a replacement:

• Visit Dell.com and search for "USB-C cable"
• If the Dell online store is not available in your region, contact an authorized local Dell retailer or reseller
• Your Dell account representative (for business customers)

How to prevent USB-C cable damage

Follow these guidelines every time you connect or disconnect your USB-C cable:

When disconnecting the cable from your computer:

Do this - The correct way:

Hold both sides of the connector and pull it straight out. This protects the connector from damage.

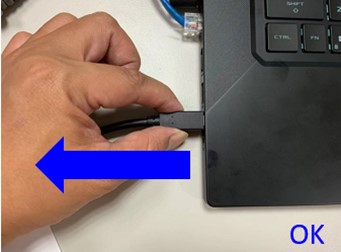

Figure 9: Correct technique showing a hand holding both sides of USB-C connector to remove it straight from laptop port

Don't do this - The wrong way:

Don't hold just the tip of the connector when unplugging. This creates uneven pressure (shown by the red arrow) and bends the connector pins.

Figure 10: Incorrect technique showing hand holding tip of USB-C connector with red arrow indicating improper angled force

When connecting or disconnecting the cable to your monitor:

Do this - The correct way:

Insert the cable straight into the monitor port. Keep the cable in a natural, vertical position without forcing it to bend.

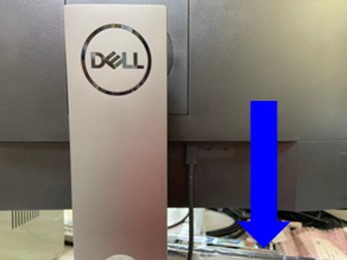

Figure 11: Correct technique showing USB-C cable inserted straight into monitor port in vertical position

Don't do this - The wrong way:

Don't bend the cable sharply when plugging it into the monitor. Bending creates stress on the connector (as shown below) and causes damage over time.

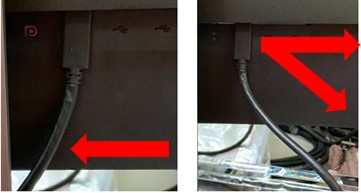

Figure 12: Incorrect technique showing USB-C cable bent sharply while being inserted into monitor port

Check for obstructions near the cable:

Objects that sit higher than your desk (like your monitor stand base or other equipment) can constantly press down on the cable. This pressure damages the connector over time.

What to do:

• Check that nothing is pressing on the cable near where it connects
• Make sure the cable can move freely when you adjust your monitor
• Route the cable so it doesn't get pinched or crushed

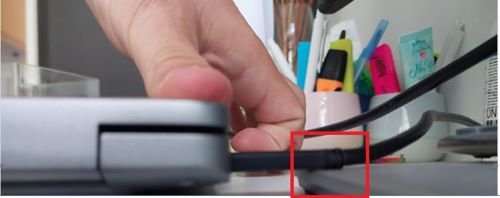

Figure 13: USB-C cable being compressed by raised object or monitor stand base showing obstruction causing stress on connector

Handle your cable with care:

Rough handling breaks the connector. This includes yanking, twisting, or dropping the cable.

Best practices:

• Always grasp the connector (not the cable) when unplugging
• Pull straight out with gentle, steady pressure
• Never yank or twist the cable
• Keep cables away from areas where they might get stepped on

Additional tips for cable care

Before adjusting your monitor:

• Make sure the cable has enough slack (loose length) to move freely
• Don't force the monitor to move if the cable is pulling tight

When using cable clips or holders:

• Allow the cable to curve gently, don't force sharp bends
• Make sure clips don't pinch or squeeze the cable too tightly

Daily habits:

• Always plug and unplug cables straight (parallel to the port)
• Never use excessive force when connecting or disconnecting
• Route cables so they're not under tension or being pulled

Before you buy a new cable, try these troubleshooting steps

Before replacing your cable, try these steps:

Step 1: Inspect your cable closely

1. Disconnect the USB-C cable from both your laptop and monitor.
2. Look at both ends of the cable in good lighting.
3. Compare what you see to the damage examples in the Cause section above.
4. If you see any damage, replace the cable.

Step 2: Clean the ports

Sometimes dust or debris causes connection problems:

1. Turn off your laptop and unplug your monitor.
2. Look inside the USB-C ports on both devices.
3. If you see dust or debris, use compressed air to gently blow it out.
4. Wait a few minutes for any moisture to dry.
5. Reconnect and test.

Note: Never use metal objects to clean ports, this can cause damage.

Step 3: Test with another cable

If you have a spare USB-C cable that supports video and charging:

1. Connect your laptop to your monitor using the spare cable.
2. Check if charging and video both works.
3. If they do, your original cable is damaged and needs replacement.

Step 4: Check your ports

If a new cable doesn't work:

1. Try connecting your laptop's power adapter to the same USB-C port.
2. If your laptop doesn't charge with the power adapter either, the port may need service.
3. Contact Dell Support for repair options.

Still having problems?

If you've replaced your cable and followed the prevention guidelines but still have issues:

Run Dell diagnostics:

1. Restart your laptop.
2. When the Dell logo appears, press F12 repeatedly.
3. Select Diagnostics from the menu.
4. Let the test complete and note any error codes.

Contact Dell Support if:

• You see error codes from diagnostics
• Your USB-C ports aren't functioning after troubleshooting

Have this information ready:

• Your laptop's Service Tag (found on the bottom of the device)
• Your monitor's model number
• A description of the problem
• What troubleshooting steps you've already tried

Quick reference guide

Prevention summary

The three most important things to remember:

1. Pull straight - Always plug and unplug cables in a straight line with the port
2. Grasp the connector - Never pull on the cable itself when disconnecting
3. Check for obstacles - Make sure nothing is pressing on or bending the cable

Following these simple guidelines will help your USB-C cables last much longer and prevent charging and display issues.
