Some article numbers may have changed. If this isn't what you're looking for, try searching all articles. Search articles

Article Number: 000176963

Dell EMC Customized Image of VMware ESXi Availability and Download Instructions

Summary: This article provides information on how to download the Dell VMWare ESXi Customized Image ISO.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content

Symptoms

Certain Dell PowerEdge servers require the use of the Dell EMC Customized Image of VMware ESXi for the easiest and most reliable deployment of a fully managed server. To determine if your server requires the DellEMC Customized Image of VMware ESXi, see ESXi 6.x Image Customization Information.


Table of Contents

  1. What drivers and files are modified or included on the Dell EMC Customized Image of VMware ESXi ?
  2. Download the Dell EMC Customized Image of ESXI from VMware
  3. Download the Dell EMC Customized Image of ESXi from Dell Support
  4. Installation



What drivers and files are modified or included on the Dell EMC Customized Image of VMware ESXi?

Each image is a customization of the base VMware image of a particular version. Dell customization of the image includes:
  • Modifying files to identify Dell and Dell support.
  • Updating the ESXi image with the latest validated asynchronous drivers.
  • Updating patches if it addresses a common issue for Dell systems.
We recommended using the latest version of the image available for your Dell system.



Download the Dell EMC Customized Image of VMware ESXi from VMware Support

To find out how to download the customized image from VMware Website, watch this video or follow the step by step instructions below.




Step by Step Instructions

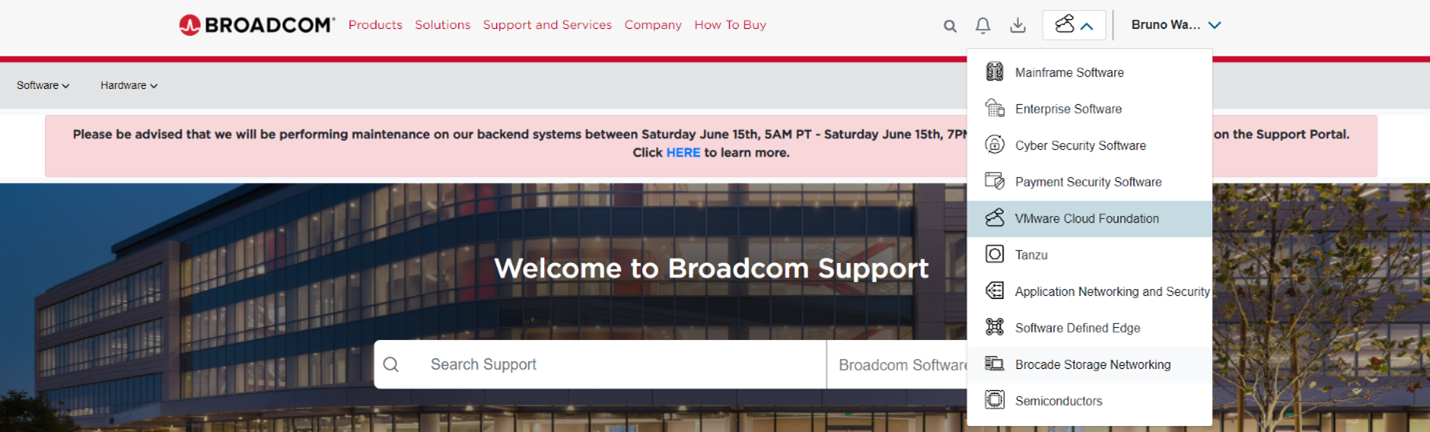

  1. Go to https://my.vmware.com/web/vmware/login and login with your account credentials.

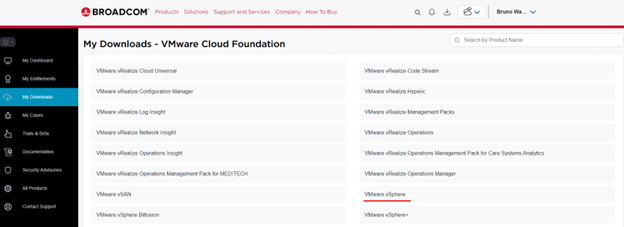

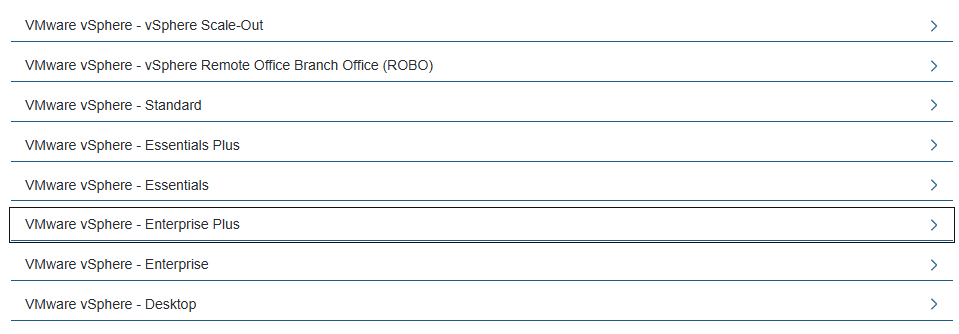

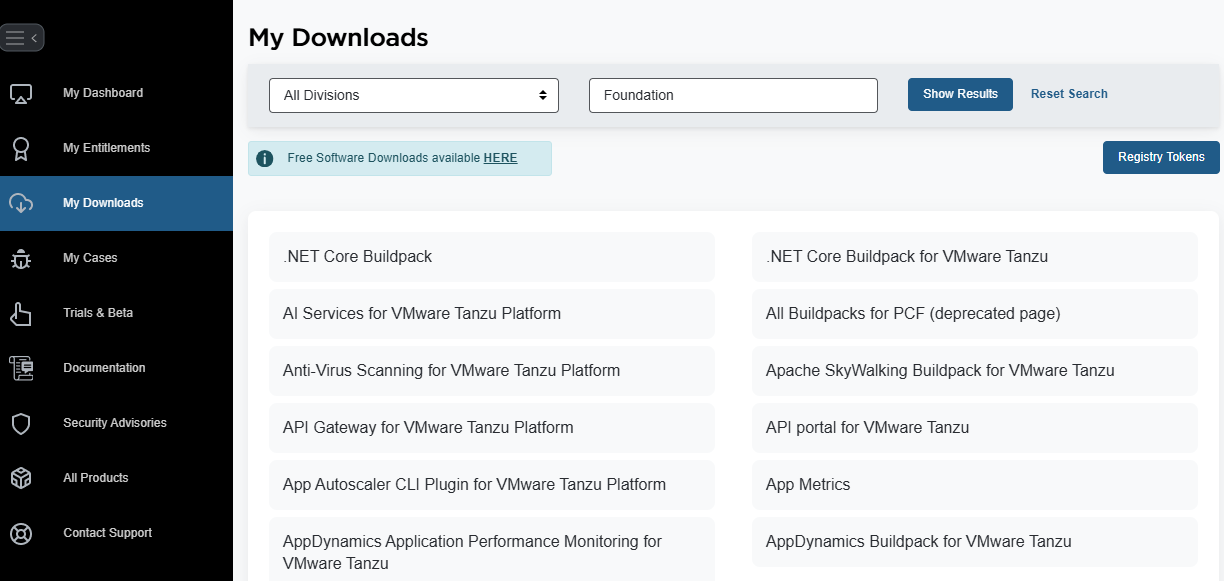

  2. Select "View and Download Products" > All Products and then click "View Download Components" link of VMware vSphere. Below snapshot is the same content when traversed to the above said location.
    SLN288152_en_US__1image(14417)
    Figure 1: Downloads page at vmware.com



  3. From the drop-down menu, select the wanted ESXi version. The Dell EMC Customized Image of VMware ESXi are available for 7.0, 6.7 and 6.5 branches of ESXi. Hence if you select any other versions of ESXi, the "Custom ISOs" tab will not have the Dell EMC Customized Image of VMware ESXi.
    SLN288152_en_US__2image(14418)
    Figure 2: Version selection at vmware.com

  4. Click "Custom ISOs"
    SLN288152_en_US__3image(14419)
    Figure 3: Custom ISO's selection screen

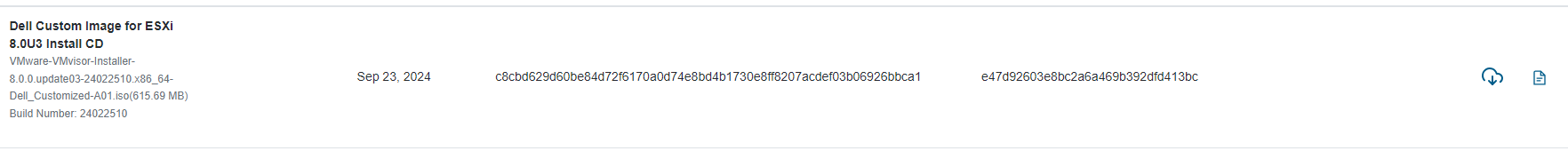

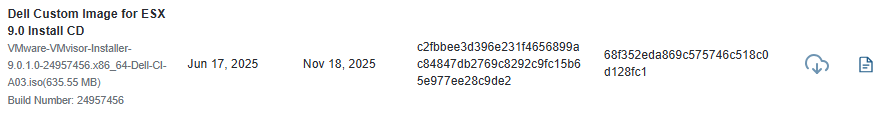

  5. Expand the OEM Customized Installer CD's option and then click Go to Downloads for the image that you want to download. Both Dell EMC Customized Image of VMware ESXi ISO and the offline bundle (.zip format) are available in the download page.
    SLN288152_en_US__4image(14420)
    Figure 4: Custom ISOs download screen




Cause

Download the Dell EMC Customized Image of VMware ESXi from Dell Support


SLN288152_en_US__5icon Note: A valid my.vmware.com account is required to download ISO images.


To download the Dell EMC Customized Image of VMware ESXi, perform the following steps:

  1. Go to dell.com/support, and select your product from the Product Support section or enter service tag.

  2. Click the Drivers and Downloads tab.

  3. Filter the request "Enterprise Solutions" in the Category field.

  4. Expand the VMware ESXi link, and click download on the required version for your server.



For example: Here is the download link of Dell EMC Customized Image of VMware ESXi 6.7 U3 in our website for your reference.
https://www.dell.com/support/home/us/en/19/Drivers/DriversDetails?driverId=P2JV2




Resolution

Installation

To install ESXi, boot on the ISO file and follow the instructions. Alternative methods can be used to boot on the ISO file: Find the VMware compatibility information in VMware compatibility Guide.

Article Properties

Affected Product

PowerEdge, VMware, VMware ESXi 4.x, VMware ESXi 5.x, VMware ESXi 6.5.X, VMware ESXi 6.7.X, VMware ESXi 6.x

Last Published Date

28 Jan 2022

Version

5

Article Type

Solution
