PowerEdge：Kioxia PM7 960 和 800 GB 驱动器 标签显示通用的制造部件编号
Summary: 对于戴尔和 FCoE 初始化协议 （FIP） 驱动器，制造商部件号在 960 GB 和 800 GB 版本的驱动器之间共享。
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms

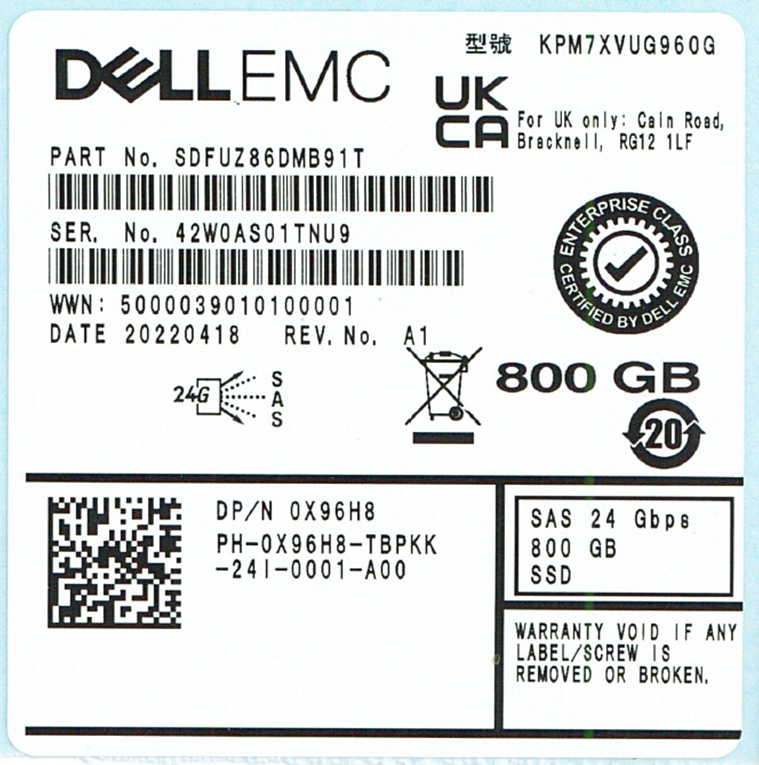

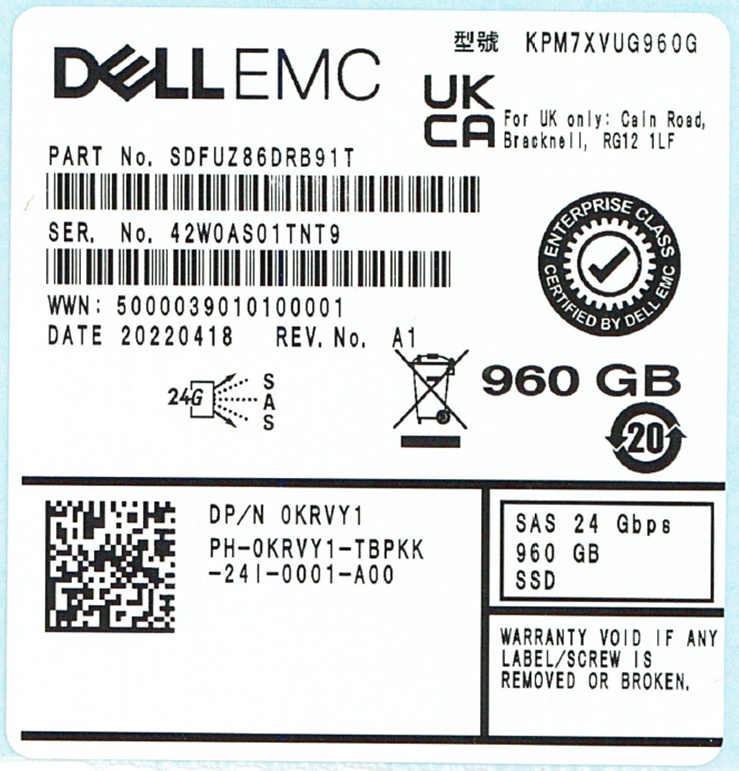

请注意，在以下驱动器标准版本的示例标签中，两个驱动器的标签“KPM7XVUG960G”右上角的制造商部件号相同。
但是，戴尔部件编号、大小和耐用性有所不同。
制造商已根据我们自己的特定容量和耐用性配置了戴尔驱动器。
驱动器的 FCoE 初始化协议 （FIP） 版本也是如此，如下所示。

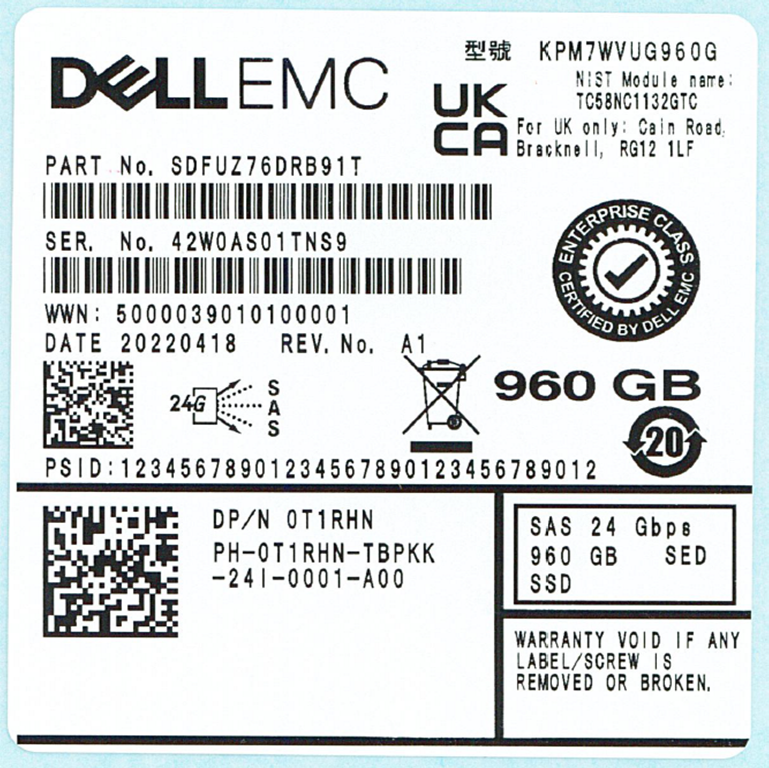

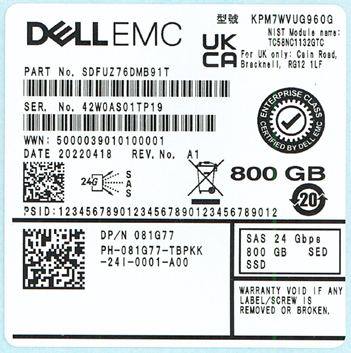

请注意，在下面的 FIP 版本驱动器的示例标签中，标签“KPM7WVUG960G”右上角的制造商部件号相同。
但是，戴尔部件编号、大小和耐用性有所不同。
这里是表格格式的相同信息，还注意到泳道发生了变化，960 GB 驱动器是 （RI） 读取密集型，而 800 GB 版本是 （MU） 混合使用。
同样，这一切都被固件更改了。
Dell PN |
Mfg |
Family Name |
Mfg Model Number |
Mfg PN |
Capacity |
Encryption |
Swim-Lane |
DWPD |
0KRVY1 |
Kioxia |
PM7 |
KPM7XVUG960G |
SDFUZ86DRB91T |
960GB |
SIE |
RI |
1 |
0X96H8 |
Kioxia |
PM7 |
KPM7XVUG960G |
SDFUZ86DMB91T |
800GB |
SIE |
MU |
3 |
0T1RHN |
Kioxia |
PM7 |
KPM7WVUG960G |
SDFUZ76DRB91T |
960GB |
SED (FIPS-140) |
RI |
1 |
081G77 |
Kioxia |
PM7 |
KPM7WVUG960G |
SDFUZ76DMB91T |
800GB |
SED (FIPS-140) |
MU |
3 |
Cause
这是由生产单个硬盘的制造商推动的，并填补戴尔必须拥有的 960 GB （RI） 驱动器和 800 GB （MU） 驱动器。
Resolution
无解决方法，此 LKB 的目的是通知。
驱动器是满足这两个功能的更高质量的驱动器。
戴尔没有使用更便宜的驱动器来完成这两项工作。
驱动器是满足这两个功能的更高质量的驱动器。
戴尔没有使用更便宜的驱动器来完成这两项工作。
Affected Products
OEMR R240, OEMR R250, OEMR R260, OEMR R340, OEMR R350, OEMR R360, OEMR R440, OEMR R450, OEMR R540, OEMR R550, OEMR R640, OEMR R6415, OEMR R650, OEMR R650xs, OEMR R6515, OEMR R6525, OEMR R660, OEMR XL R660, OEMR R660xs, OEMR R6615, OEMR R6625
, OEMR R740, OEMR XL R740, OEMR R740xd, OEMR XL R740xd, OEMR R740xd2, OEMR R7415, OEMR R7425, OEMR R750, OEMR R750xa, OEMR R750xs, OEMR R7515, OEMR R7525, OEMR R760, OEMR R760xa, OEMR R760XD2, OEMR R760xs, OEMR R7615, OEMR R7625, OEMR R840, OEMR R860, OEMR R940, OEMR R940xa, OEMR R960, OEMR XL R660xs, OEMR XL R6615, OEMR XL R6625, OEMR XR5610, OEMR XR8610t, OEMR XR8620t, PowerEdge R240, PowerEdge R250, PowerEdge R260, PowerEdge R340, PowerEdge R350, PowerEdge R360, PowerEdge R440, PowerEdge R450, PowerEdge R540, PowerEdge R550, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R650xs, PowerEdge R6515, PowerEdge R6525, PowerEdge R660, PowerEdge R660xs, PowerEdge R6615, PowerEdge R6625, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R750XA, PowerEdge R750xs, PowerEdge R7515, PowerEdge R7525, PowerEdge R760, PowerEdge R760XA, PowerEdge R760xd2, PowerEdge R760xs, PowerEdge R7615, PowerEdge R7625, PowerEdge R840, PowerEdge R860, PowerEdge R940, PowerEdge R940xa, PowerEdge R960, PowerEdge XR5610, PowerEdge XR7620, PowerEdge XR8610t, PowerEdge XR8620t, Dell EMC vSAN R640 Ready Node, Dell EMC vSAN R6415 Ready Node, vSAN Ready Node R660, Dell vSAN R6615 Ready Node, Dell EMC vSAN R740 Ready Node, Dell EMC vSAN R740xd Ready Node, Dell EMC vSAN R750 Ready Node, Dell EMC vSAN R7515 Ready Node, Dell vSAN R7615 Ready Node, Dell vSAN Ready Node R7625
...
