ECS: Advanced Monitoring drop-down list is missing a node
Summary: Advanced Monitoring - Data Access Performance - by Nodes drop-down list does not show a Node.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The Advanced Monitoring - Data Access Performance - by Nodes drop-down list does not show a node.

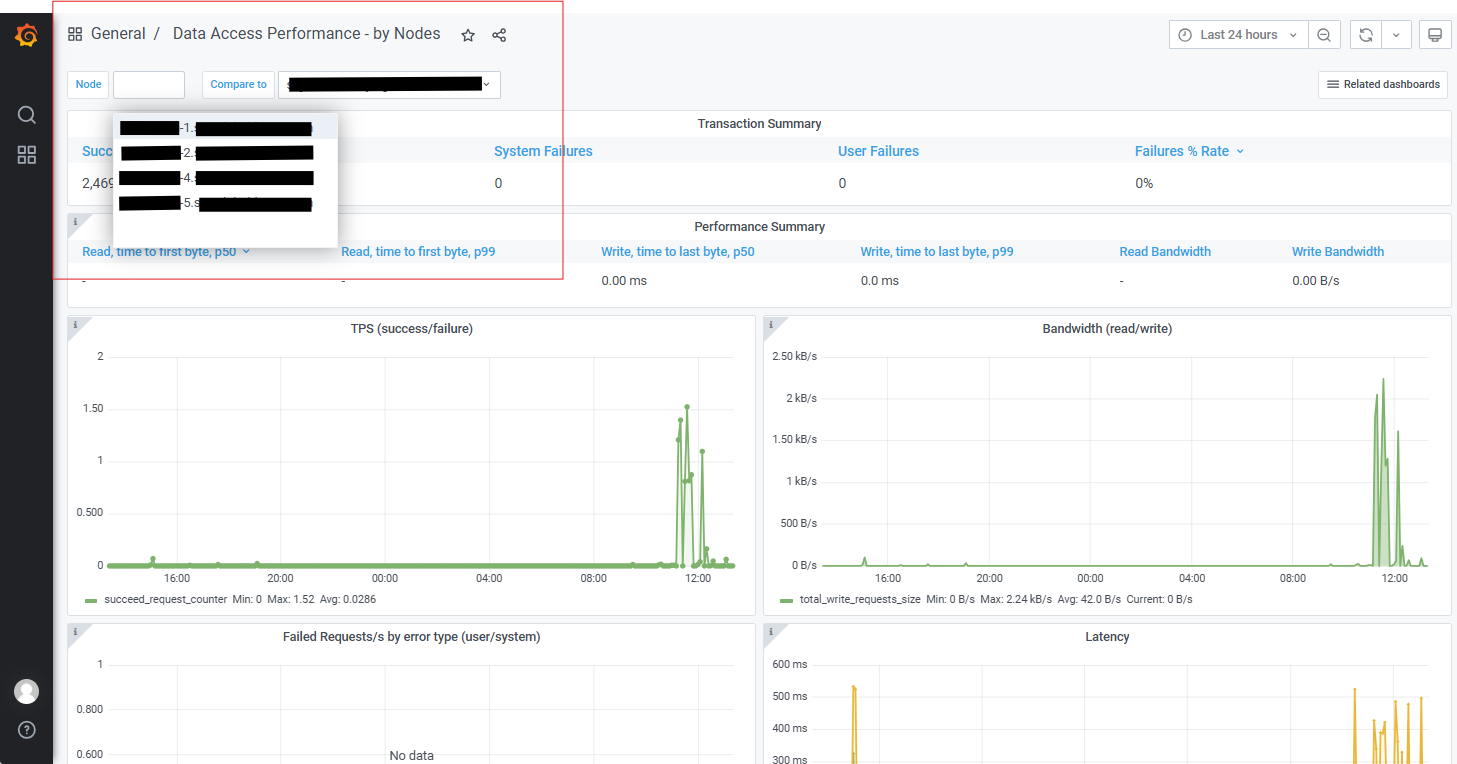

In this example, Node 3 is missing from the drop-down list:
Cause
ECS is newly Installed. The application does not send I/O to nodes that are missing from the Advanced Monitoring - Data Access Performance - by Nodes drop-down list.
Resolution
- Verify that there is no S3 or CAS I/O to Node(s):
kpi -cas -start '7 days ago' kpi -start '7 days ago'
In this example, there is no S3 I/O to this ECS and no CAS I/O to r1n3:
admin@node1:~> kpi -start '7 days ago'
kpi v3.4.2 (svc_tools v2.24.0-rc) Started 2025-11-12 01:05:34
Time range: 2025-11-05 01:05:34 - 2025-11-12 01:05:34
All Requests 500 Errors
Node GETs PUTs POSTs DELETEs HEADs Total GETs PUTs POSTs DELETEs HEADs Total % Fail
r1n1 0 0 0 0 0 0 0 0 0 0 0 0 0.00
r1n2 0 0 0 0 0 0 0 0 0 0 0 0 0.00
r1n3 0 0 0 0 0 0 0 0 0 0 0 0 0.00
r1n4 0 0 0 0 0 0 0 0 0 0 0 0 0.00
r1n5 0 0 0 0 0 0 0 0 0 0 0 0 0.00
Totals 0 0 0 0 0 0 0 0 0 0 0 0 0.00
Req Error %: 0.00 0.00 0.00 0.00 0.00 0.00
--------------------------------------------------------------------------------------------------------------------
Non-200 Response codes
--------------------------------------------------------------------------------------------------------------------
Resp Code Description GETs PUTs POSTs DELETEs HEADs Total % Total Reqs
-----------------------------------------------------------------------------------------------
500 Internal Server Error 0 0 0 0 0 0 0.00
admin@node1:~> kpi -cas -start '7 days ago'
kpi v3.4.2 (svc_tools v2.26.0) Started 2025-11-10 02:44:58
Time range: 2025-11-03 02:44:58 - 2025-11-10 02:44:58
All Requests -10005 Errors
Node READs WRITEs DELETEs EXIST_CHECKs Total READs WRITEs DELETEs EXIST_CHECKs Total % Fail
r1n1 0 12058 0 0 12058 0 0 0 0 0 0.00
r1n2 608 0 0 0 608 0 0 0 0 0 0.00
r1n3 0 0 0 0 0 0 0 0 0 0 0.00
r1n4 608 0 0 0 608 0 0 0 0 0 0.00
r1n5 0 12058 0 0 12058 0 0 0 0 0 0.00
Totals 1216 24116 0 0 25332 0 0 0 0 0 0.00
Req Error %: 0.00 0.00 0.00 0.00 0.00
--------------------------------------------------------------------------------------------------------------------
Non-200 Response codes
--------------------------------------------------------------------------------------------------------------------
Resp Code Description READs WRITEs DELETEs Total % Total Reqs
-----------------------------------------------------------------------
-10005 FP_SERVER_ERR 0 0 0 0 0.00
- If there is no I/O to Node(s) missing from the Advanced Monitoring - Data Access Performance - by Nodes drop-down list, this is normal behavior.
- Once I/O is received on Node(s) missing from the drop-down list, Node(s) should appear on the drop-down list.
