Dell Backup and Recovery 1.8: Recovery

Summary: This article provides information about Recovery options using Dell Backup and Recovery 1.8, and is for reference only

Article Content


Symptoms


This article provides information on Dell Backup and Recovery 1.8: Recovery


Table of Contents:

  1. System Recovery
  2. Recover your Data
  3. Applications and Drivers
  4. My Dell Software
  5. Dell Backup and Recovery: Useful Links



NOTE: Dell Backup and Recovery 1.8 is no longer shipped in Dell systems. This article is provided for legacy user information only.



SLN297654_en_US__1icon The information contained is this article also applies to the AlienReSpawn backup software available with Alienware systems.



CAUTION: Before upgrading your system to Windows 10 you must have the latest updates to Dell Backup and Recovery 1.8 installed to ensure that the software will work after the upgrade. For more information please see the following article Dell Backup and Recovery (DBAR) and Windows 10


The Recovery tile is used to perform different kinds of recoveries, the user can access the following options upon entering the Recovery tile.

SLN297654_en_US__2dbar1_8_recovery_tile
Figure 1: Location of Recovery Tile in Dell Backup and Recovery

  • System Recovery - Restores the entire device (Operating System (OS), drivers and data) to a previous date or to the factory image.
  • Recover your Data - Restores specific files and folders from Data Backup.
  • Applications and Drivers - Allows the user to recover the applications, drivers and utilities that were pre-installed on the device.
  • Dell Software - User can restore a software that does not come on a backup media and is available for download only from Dell Digital Locker.



1. System Recovery

Within Windows

This feature enables the user to recover the system to a previous date or to the factory image.

To recover the system from within windows, follow these steps:

1. On a Notebook, make sure the AC Adapter is plugged in.

2. Click the Recovery tile

SLN297654_en_US__2dbar1_8_recovery_tile
Figure 2: Location of Recovery Tile in Dell Backup and Recovery

3. Click Yes, Continue.

SLN297654_en_US__4dbar1_8_recovery_SRyes
Figure 3: System Recovery screen in Dell Backup and Recovery; click Yes Continue

4. Select the desired recovery point if there is more than one available and then click Restart.

SLN297654_en_US__5dbar1_8_recovery_SRrestart
Figure 4: Recovery Point selection screen in Dell Backup and Recovery

5. The user will see the pop up with the following message: Please select the System Backup carefully. Any System Backup newer than the one selected will be deleted. Do you want to continue? Click Yes once verified.

SLN297654_en_US__6dbar1_8_recovery_SRcontinue
Figure 5: System Backup pop-up warning

6. The system restarts and goes ahead with restoring the factory image as per the recovery point selected.
Follow the on-screen instructions to setup the Operating System.

SLN297654_en_US__7dbar1_8_recovery_SRwait
Figure 6: Dell Backup and Recovery restoring your system

Back to System Recovery



From the Recovery Partition for Windows 7

Dell Backup and Recovery can recover the Operating system or backup from the recovery partition as well

To recover the OS from the recovery partition in Windows 7, follow these steps:

1. On a Notebook, make sure the AC Adapter is plugged in.

2. Click the Start button and select Restart from the Shut down options.

SLN297654_en_US__8dbar_srrp7_2
Figure 7: Windows Start menu, Shut down options, Restart selected

3. As the system restarts, tap the F8 key until the Advanced Boot Options screen appears.

4. Select the first option which should be "Repair Your Computer".

SLN297654_en_US__9dbar_srrp7_4
Figure 8: Advanced boot options screen, Repair Your Computer selected

5. Windows will load some files, then select your keyboard locale, click Next.

SLN297654_en_US__10dbar_srrp7_5
Figure 9: System Recovery Options, keyboard locale selection screen

6. You will then be prompted to Log in, then click OK.

SLN297654_en_US__11dbar_srrp7_6
Figure 10: System Recovery Options, login screen

7. At the System Recovery Options Screen, select Dell Backup and Recovery.

SLN297654_en_US__12dbar_srrp7_7
Figure 11: System Recovery options, recovery tool selection. Choose Dell Backup and Recovery

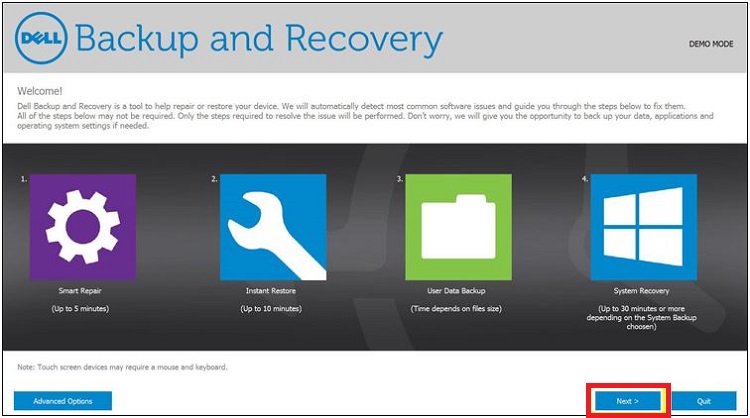

8. The system restarts and comes back up, click Next on the Dell Backup and Recovery Screen.

SLN297654_en_US__13dbar1_8_recovery_SRpart7next
Figure 12: Dell Backup and Recovery welcome screen. Select Next

9. Hard drive diagnostics are run to check if the drive is OK, click Next once this is done.

SLN297654_en_US__14dbar1_8_recovery_SRpart7HDD
Figure 13: Dell Backup and Recovery drive diagnostics screen

10. The system will be checked to see if the "Smart Repair" option can fix the issue, click Next once this is done.

SLN297654_en_US__15dbar1_8_recovery_SRsmart1
Figure 14: Dell Backup and Recovery Smart Repair screen

SLN297654_en_US__16dbar1_8_recovery_SRsmart2
Figure 15: Dell Backup and Recovery Smart Repair results screen

11. If "Smart Repair" does not find any issues, it proceeds to attempt an "Instant Restore". If the Instant Restore is successful the user will be prompted to Restart the system

SLN297654_en_US__17dbar1_8_recovery_SRinstant
Figure 16: Dell Backup and Recovery Instant Restore in progress

SLN297654_en_US__18dbar1_8_recovery_SRinstant2
Figure 17: Dell Backup and Recovery Instant Restore results screen

12. If Instant Restore is not able to fix the issue. The Advanced Options screen comes up with the other available options:

  • Restore this device to a specific point in time.
  • Factory Refresh - Only restores the system partition.
  • Factory Reset - Deletes data and resets all partitions.
  • Exit to Microsoft Troubleshoot menu.



SLN297654_en_US__19dbar1_8_recovery_SRadvance
Figure 18: Dell Backup and Recovery Advanced Options screen

13. Before proceeding with any of the Advanced options, the user will be prompted to backup data, if needed do so by selecting the option Next (Make sure to have an external backup hard drive handy) or click Skip if this is not required.

SLN297654_en_US__20dbar1_8_recovery_SRdata
Figure 19: Dell Backup and Recovery Advanced Options Data Backup screen

14. The system goes ahead and completes the restore of the operating system. Click Restart when prompted.

SLN297654_en_US__21dbar1_8_recovery_SRrestore1
Figure 20: Dell Backup and Recovery Advanced Options Data Backup in progress

SLN297654_en_US__22dbar1_8_recovery_SRrestore2
Figure 21: Dell Backup and Recovery Advanced Options Data Backup results

15. Follow the on-screen instructions to finish setting up the system with Windows.

Back to System Recovery

From the Recovery Partition for Windows 8

Dell Backup and Recovery can recover the Operating system or backup from the recovery partition as well

To recover the OS from the recovery partition in Windows 8, follow these steps:

1. On a Notebook, make sure the AC Adapter is plugged in.

2. Click the Settings Charm.

SLN297654_en_US__23dbar_srrp_2
Figure 22: Windows Setting charm

3. Click the shutdown button, hold down the Shift Key and click Restart from the options provided.

SLN297654_en_US__24dbar_srrp_3
Figure 23: Shutdown options, shift + click Restart

4. The system restarts, login and click Troubleshoot.

SLN297654_en_US__25dbar_srrp_4
Figure 24: Windows Restart Options screen; select Troubleshoot

5. Click the Dell Backup and Recovery icon.

SLN297654_en_US__26dbar_srrp_5
Figure 25: Restart Options Troubleshoot menu; select Dell Backup and Recovery

6. The system restarts and comes back up, click Next on the Dell Backup and Recovery Screen.

SLN297654_en_US__13dbar1_8_recovery_SRpart7next
Figure 26: Dell Backup and Recovery Welcome screen

7. Hard drive diagnostics are run to check if the drive is OK, click Next once this is done.

SLN297654_en_US__14dbar1_8_recovery_SRpart7HDD
Figure 27: Dell Backup and Recovery Drive Diagnostics screen

8. The system will be checked to see if the "Smart Repair" option can fix the issue, click Next once this is done.

SLN297654_en_US__15dbar1_8_recovery_SRsmart1
Figure 28: Dell Backup and Recovery Smart Repair in progress

SLN297654_en_US__16dbar1_8_recovery_SRsmart2
Figure 29: Dell Backup and Recovery Smart Repair results screen

9. If "Smart Repair" does not find any issues, it proceeds to attempt an "Instant Restore". If the Instant Restore is successful the user will be prompted to Restart the system

SLN297654_en_US__17dbar1_8_recovery_SRinstant
Figure 30: Dell Backup and Recovery Instant Restore in progress

SLN297654_en_US__18dbar1_8_recovery_SRinstant2
Figure 31: Dell Backup and Recovery Instant Repair results

10. If Instant Restore is not able to fix the issue. The Advanced Options screen comes up with the other available options:

  • Restore this device to a specific point in time.
  • Factory Refresh - Only restores the system partition.
  • Factory Reset - Deletes data and resets all partitions.
  • Exit to Microsoft Troubleshoot menu.



SLN297654_en_US__19dbar1_8_recovery_SRadvance
Figure 32: Dell Backup and Recovery Advanced Options screen

11. Before proceeding with any of the Advanced options, the user will be prompted to backup data, if needed do so by selecting the option Next (Make sure to have an external backup hard drive handy) or click Skip if this is not required.

SLN297654_en_US__20dbar1_8_recovery_SRdata
Figure 33: Dell Backup and Recovery Data Backup screen

12. The system goes ahead and completes the restore of the operating system. Click Restart when prompted.

SLN297654_en_US__21dbar1_8_recovery_SRrestore1
Figure 34: Dell Backup and Recovery system restore in progress

SLN297654_en_US__22dbar1_8_recovery_SRrestore2
Figure 35: Dell Backup and Recovery system restore complete

13. Follow the on-screen instructions to finish setting up the system with Windows.

Back to System Recovery

From Factory Recovery Media

Dell Backup and Recovery 1.8 can recover the Operating system or backup from the recovery media.

To recover the OS from the recovery media, follow these steps:

NOTE: The user must have already created the Factory Recovery Media.

1. On a Notebook, make sure the AC Adapter is plugged in.

2. Insert the Factory Recovery Media into the optical drive or connect the USB recovery key to the USB port.

3. Boot from the recovery media by tapping F12 at the Dell Logo and select CD/DVD Drive or USB Device depending on your backup location. You may be prompted to press a key to boot from CD/DVD, quickly press any key on the keyboard if you see this message.

4. The system boots to Dell Backup and Recovery Screen from the recovery media. Click Next on this screen.

SLN297654_en_US__37dbar1_8_recovery_SRFRM4
Figure 36: Dell Backup and Recovery welcome screen

5. Hard drive diagnostics will be run to check if the drive is OK. Click Next once this is done.

SLN297654_en_US__38dbar1_8_recovery_SRFRM5
Figure 37: Dell Backup and Recovery Drive Diagnostics screen

6. The system will check to see if the Smart Repair option can fix the issue. Click Next once this is done.

SLN297654_en_US__39dbar1_8_recovery_SRFRM6
Figure 38: Dell Backup and Recovery Smart Repair in progress

SLN297654_en_US__40dbar1_8_recovery_SRFRM61
Figure 39: Dell Backup and Recovery Smart Repair results

7. If Smart Repair does not find any issues, it attempts an Instant Restore. If the Instant Restore is successful, the user will be prompted to restart the system.

SLN297654_en_US__41dbar1_8_recovery_SRFRM7
Figure 40: Dell Backup and Recovery Instant Restore results

8. If Instant Restore is not able to fix the issue. The Advanced Options screen comes up with the other available options:

  • Restore this device to a specific point in time.
  • Factory Refresh - Only restores the system partition.
  • Factory Reset - Deletes data and resets all partitions.
  • Exit to Microsoft Troubleshoot menu.



SLN297654_en_US__19dbar1_8_recovery_SRadvance
Figure 41: Dell Backup and Recovery Advanced Options screen

9. Before proceeding with any of the Advanced options, the user will be prompted to backup data, if needed do so by selecting the option Next (Make sure to have an external backup hard drive handy) or click Skip if this is not required.

SLN297654_en_US__20dbar1_8_recovery_SRdata
Figure 42: Dell Backup and Recovery Data Backup screen

10. The system goes ahead and completes the restore of the operating system. Click Restart when prompted.

SLN297654_en_US__21dbar1_8_recovery_SRrestore1
Figure 43: Dell Backup and Recovery system recovery in progress

SLN297654_en_US__22dbar1_8_recovery_SRrestore2
Figure 44: Dell Backup and Recovery system recovery complete

11. Follow the on-screen instructions to finish setting up the system with Windows.

Back to System Recovery

Back to the Top of Article


2. Recover your Data

The data recovery option is used when the user needs to restore specific files or folders from their data backups.

To use the Data Recovery option, follow these steps:

In the Recovery screen, click the Recover your Data tab on the left.

SLN297654_en_US__46dbar1_8_recovery_RYD
Figure 45: Recovery screen; select Recover your Data

You then need to select from the following:

Where

  • Original Destination - This is the location from where the data is recovered.
  • Browse - This is the location where the data is recovered to. The user can click this tile and specify the location.

How

  • Rename Duplicate Files - Selecting this option will keep any duplicate files while recovering and rename them with a number next to the original name.
  • Keep Newer Files - Selecting this option will keep only files with the latest date and time stamp.
  • Overwrite All Files - Selecting this option will overwrite all existing files and folders with the files and folders from within the data backup.
  • Keep Older Files - Selecting this option will keep only files with the oldest date and time stamp.

What

  • The user can the set types of files to be included in the recovery by selecting the Documents, Pictures, Music or Videos tiles which are located below the Original Destination tile. Additionally, more files can be included for recovery by clicking on the Add more files button.
  • Clicking the File to recover link just below Add more files shows the items that will be restored.

More Options

  • More options (located on the top right side) - Click this to configure the Data Recovery settings. The available settings under More options are explained below.

File selection - The user can select files or folders to be included for the data recovery.

SLN297654_en_US__47dbar1_8_recovery_RYDMO
Figure 46: Recovery screen; Recovery Files selection

Browse archive - The user can search any data that been archived for recovery.

SLN297654_en_US__48dbar1_8_recovery_RYDMO2
Figure 47: Recovery screen; Browse archive

Back to the Top of Article


3. Applications and Drivers

This allows the user to recover the applications, drivers and utilities that were pre-installed on the device. Click the required category tile and select the item to be recovered.

SLN297654_en_US__49dbar1_8_recovery_AandD
Figure 48: Recovery screen; Applications and Drivers

Back to the Top of Article




4. My Software Downloads

Some of the pre-installed software on the computer does not come installed on a backup CD or DVD but is available from Dell Digital Locker.  Follow the onscreen instructions to access your originally purchased software.

NOTE: There is a limit to the number of times particular software can be downloaded.

Back to the Top of Article




5. Dell Backup and Recovery: Useful Links

Dell Backup and Recovery Website

Dell Backup and Recovery 1.8: Overview and Install

Dell Backup and Recovery 1.8: Factory Recovery Media

Dell Backup and Recovery 1.8: Backup



Back to the Top of Article


Article Properties


Last Published Date

21 Feb 2021

Version

4

Article Type

Solution

Rate This Article


Accurate
Useful
Easy to Understand
Was this article helpful?

0/3000 characters
