Avamar: Administrator UI pages display garbled text

Summary: After an upgrade to Windows 10 version 1709, the Avamar Administrator shows garbled, unreadable text due to ClearType being enabled.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

After upgrading to Windows 10 version 1709, the Avamar Administrator shows garbled, unreadable text.

Screenshot showing Avamar UI with garbled text

Cause

The issue is "ClearType", which is enabled by default in Windows 10 version 1709.
(Other elements required to re-create this issue are currently unknown.)

Resolution

The workaround is to disable Cleartype:

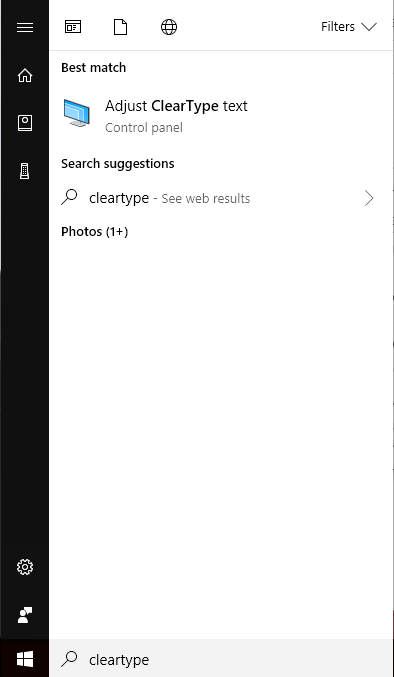

1. From the Windows Start menu, type "ClearType" and select "Adjust ClearType text"


Windows Start Menu, Adjust ClearType



2. Clear "Turn on ClearType".


kA2f1000000K95TCAS_2_1


3. Adjust settings on all connected monitors and click "Finish".

4. Restart Avamar AdminiAvarstrator UI.

Note: Sometimes a Windows restart is required to bring the changes into effect.
