Avamar: O PDM carregando proxies recomendados recebe a mensagem "Falha no login devido a credenciais inválidas ou vCenter"

Summary: Avamar: O Proxy Deployment Manager carregando proxies recomendados recebe a mensagem "Falha no login devido a credenciais inválidas ou vCenter"

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

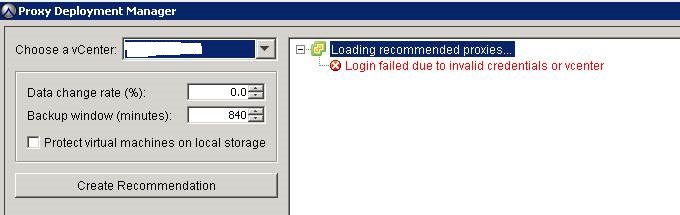

Ao tentar verificar se há proxies recomendados, o Proxy Deployment Manager do Avamar relata uma mensagem:

"Falha no login devido a credenciais inválidas ou vCenter"

kA2f1000000L4tnCAC_3_0

Cause

No registro do gerenciador de conexões VCS "/usr/local/avamar/var/log/vcs/connectionmanager.log", o seguinte erro é exibido:

2017-06-05T02:03:22.971+0500 TRACE [cTaskExecutor-4][     handler.ConnectionHandler#    handleMessage]: [Leaving]
2017-06-05T02:03:22.971+0500 ERROR [cTaskExecutor-3][   model.ConnectionPoolManager#           logout]: Pool is not available.  Invalid ticket: ...a1a7522bfec3
2017-06-05T02:03:22.971+0500 DEBUG [cTaskExecutor-3][   model.ConnectionPoolManager#           logout]:
TicketPools:
...50c79c741e9f: com.emc.avamar.vmware.connection.model.VSphereConnectionPool@62cf90d1
...a1019b98afac: com.emc.avamar.vmware.connection.model.VSphereConnectionPool@62cf90d1

In the VCS deploymanager log file /usr/local/avamar/var/log/vcs/deploymanager.log, the following is seen:


7-07-13T16:12:45.466+0500 ERROR [cTaskExecutor-6][       impl.UserSessionService#            login]: Error communicating with connection manager
2017-07-13T16:12:45.466+0500 TRACE [cTaskExecutor-6][        handler.RequestHandler#    handleMessage]: LoginResponse [sessionId=null, success=false, reason=Login failed due to invalid credentials or vcenter, statusCode=401]
2017-07-13T16:12:46.601+0500 TRACE [cTaskExecutor-7][        handler.RequestHandler#    handleMessage]: LoginRequest [vcenter=xx.xx.xx.xx, port=443, user=avamar, locale=null]
2017-07-13T16:12:46.602+0500 TRACE [cTaskExecutor-7][       impl.UserSessionService#            login]: Login request for avamar@xx.xx.xx.xx:443
2017-07-13T16:17:46.602+0500 ERROR [cTaskExecutor-7][       impl.UserSessionService#            login]: Error communicating with connection manager




Resolution

Procedimento:
  1. Verifique se a porta 443 está aberta (do Avamar) para os hosts do vCenter usando telnet ou curl.
Para obter mais informações sobre as portas de dados necessárias, consulte o Guia do usuário do VMware (consulte a página 106 da ver. 7.3 manual)

curl -kv xx.xx.xx.xx:443

* About to connect() to xx.xx.xx.xx port 443 (#0)

*   Trying xx.xx.xx.xx... connected

* Connected to xx.xx.xx.xx (xx.xx.xx.xx) port 443 (#0)

  1. Reinicie o Apache Tomcat como usuário root do SO
emwebapp.sh --stop
seguido por
emwebapp.sh --start


O Proxy Deployment Manager não deve mais relatar o erro.

Affected Products

Avamar

Products

Avamar, Avamar Client for VMware
