Avamar: PDM die aanbevolen proxy's laadt, ontvangt bericht "Aanmelden mislukt vanwege ongeldige referenties of vcenter"

Summary: Avamar: Proxy-implementatiemanager die aanbevolen proxy's laadt, ontvangt bericht 'Aanmelden mislukt vanwege ongeldige referenties of vcenter'

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

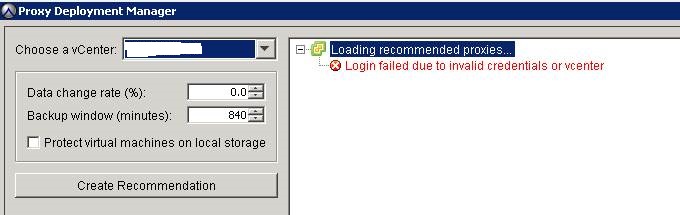

Wanneer u probeert te controleren op aanbevolen proxy's, meldt de Proxy Deployment Manager van Avamar een bericht:

"Aanmelden mislukt door ongeldige referenties of vcenter"

kA2f1000000L4tnCAC_3_0

Cause

In het VCS Connection Manager-logboek "/usr/local/avamar/var/log/vcs/connectionmanager.log", wordt de volgende fout weergegeven:

2017-06-05T02:03:22.971+0500 TRACE [cTaskExecutor-4][     handler.ConnectionHandler#    handleMessage]: [Leaving]
2017-06-05T02:03:22.971+0500 ERROR [cTaskExecutor-3][   model.ConnectionPoolManager#           logout]: Pool is not available.  Invalid ticket: ...a1a7522bfec3
2017-06-05T02:03:22.971+0500 DEBUG [cTaskExecutor-3][   model.ConnectionPoolManager#           logout]:
TicketPools:
...50c79c741e9f: com.emc.avamar.vmware.connection.model.VSphereConnectionPool@62cf90d1
...a1019b98afac: com.emc.avamar.vmware.connection.model.VSphereConnectionPool@62cf90d1

In the VCS deploymanager log file /usr/local/avamar/var/log/vcs/deploymanager.log, the following is seen:


7-07-13T16:12:45.466+0500 ERROR [cTaskExecutor-6][       impl.UserSessionService#            login]: Error communicating with connection manager
2017-07-13T16:12:45.466+0500 TRACE [cTaskExecutor-6][        handler.RequestHandler#    handleMessage]: LoginResponse [sessionId=null, success=false, reason=Login failed due to invalid credentials or vcenter, statusCode=401]
2017-07-13T16:12:46.601+0500 TRACE [cTaskExecutor-7][        handler.RequestHandler#    handleMessage]: LoginRequest [vcenter=xx.xx.xx.xx, port=443, user=avamar, locale=null]
2017-07-13T16:12:46.602+0500 TRACE [cTaskExecutor-7][       impl.UserSessionService#            login]: Login request for avamar@xx.xx.xx.xx:443
2017-07-13T16:17:46.602+0500 ERROR [cTaskExecutor-7][       impl.UserSessionService#            login]: Error communicating with connection manager




Resolution

Procedure:
  1. Controleer of poort 443 open is (van Avamar) naar de vCenter-hosts met behulp van telnet of curl.
Raadpleeg voor meer informatie over vereiste datapoorten de VMware-gebruikershandleiding (zie pagina 106 in de versie 106). 7.3 handleiding)

curl -kv xx.xx.xx.xx:443

* About to connect() to xx.xx.xx.xx port 443 (#0)

*   Trying xx.xx.xx.xx... connected

* Connected to xx.xx.xx.xx (xx.xx.xx.xx) port 443 (#0)

  1. Start Apache Tomcat opnieuw als hoofdgebruiker van het besturingssysteem
emwebapp.sh --stop
gevolgd door
emwebapp.sh --start


De proxy-implementatiemanager zou de fout niet langer moeten melden.
