PowerEdge: iDRAC9 - UEFI0060 Power Budget Exceeds Capacity after Cold Power On
Summary: The article provides an iDRAC firmware update solution to the error message UEFI0060 Power Budget Exceeds Capacity.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms

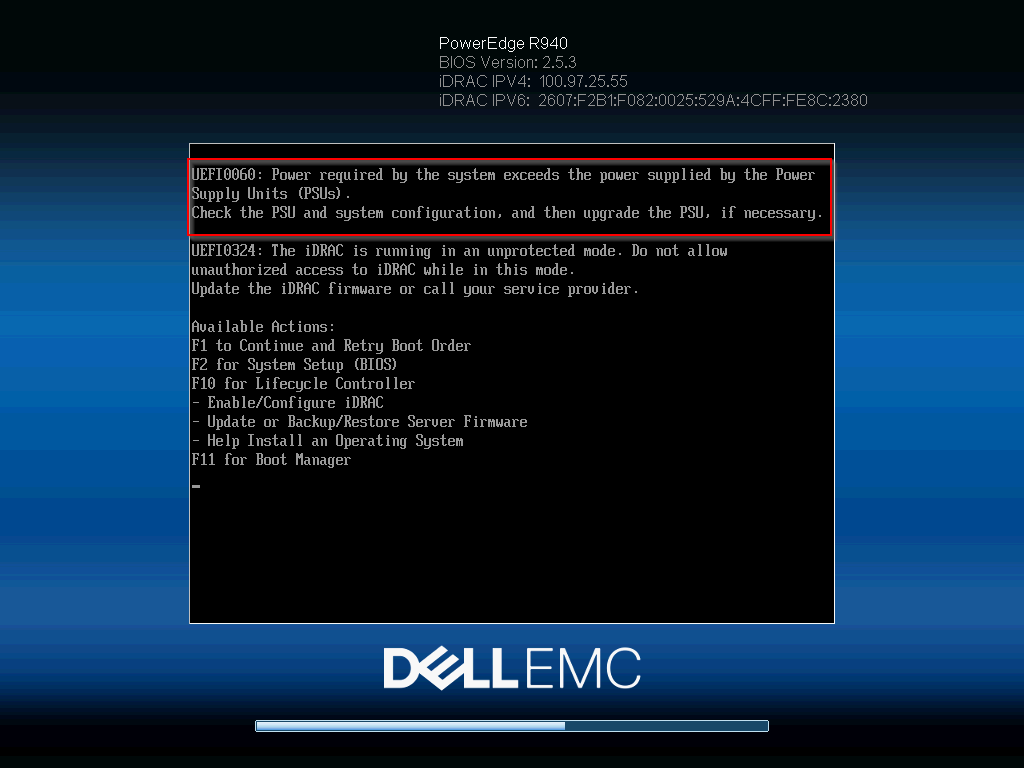

After cold power on, Dell EMC PowerEdge servers may exhibit a UEFI0060 Power Budget Exceeds Capacity error message during Power On Self-Test (POST). In rare circumstances, iDRAC9 may not get the correct value from PSU2 while determining the overall power budget for the system.
System Event Logs and Lifecycle Controller Logs may record Power Supply redundancy lost messages to accompany this error.
UEFI0060: Power required by the system exceeds the power supplied by the Power Supply Units (PSUs).
Lifecycle Controller Logs:
|
2019-12-19 23:36:36 |
32 |
RAC0701 |
Requested system powerup |
|
2019-12-19 23:36:39 |
33 |
SYS1000 |
System is turning on. |
|
2019-12-19 23:36:48 |
34 |
RDU0012 |
Power supply redundancy is lost. |
|
2019-12-19 23:36:58 |
35 |
SYS1003 |
System CPU Resetting |
|
2019-12-19 23:42:27 |
36 |
UEFI0060 |
Power required by the system exceeds the power supplied by the Power Supply Units (PSUs). |
|
2019-12-19 23:42:27 |
37 |
PWR1006 |
The system halted because system power exceeds capacity. |
|
2019-12-19 23:49:50 |
38 |
PSU0800 |
Power Supply 2: Status = 0x9, IOUT = 0x0, VOUT= 0x0, TEMP= 0x0, FAN = 0x0, INPUT= 0x38 |
|
2019-12-19 23:49:58 |
39 |
PSU0003 |
The power input for power supply 2 is lost. |
Cause
This symptom was introduced in iDRAC9 3.40.40.40 release.
Resolution
iDRAC9 4.20.20.20 (June 2020) will correct the power budgeting inventory that may lead to this condition.
Rebooting the iDRAC and warm rebooting the HOST will resolve the specific timeout condition leading to this error.
If issues persist after iDRAC reset and host reboot, troubleshoot Power Supply hardware fault.
Affected Products
iDRAC9, iDRAC9 - 3.4x Series, iDRAC9 - 4.xx SeriesProducts
OEMR R240, OEMR R340, OEMR R440, OEMR R640, OEMR R740, OEMR XL R740, OEMR R740xd, OEMR XL R740xd, OEMR R740xd2, OEMR R7415, OEMR R7425, OEMR R840, OEMR R940, OEMR R940xa, OEMR T340, OEMR T440, OEMR T640, OEMR XL T640, OEMR XL R240, OEMR XL R340
, PowerEdge R240, PowerEdge R340, PowerEdge R440, PowerEdge R540, PowerEdge R640, PowerEdge R6415, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R840, PowerEdge R940, PowerEdge R940xa, PowerEdge T140, PowerEdge T340, PowerEdge T40, PowerEdge T440, PowerEdge T640
...
