Article Number: 000178778


OptiPlex 380 Small Form Factor( SFF) Removal Guide for the System Cover, Optical Drive, Memory, Hard Drive and Expansion Card

Article Content


Symptoms

Article Summary: This article provides information on removing components from a OptiPlex 380 Small Form Factor( SFF).


Table of Contents:
  1. System Cover Removal
  2. Optical Drive Removal
  3. Memory Removal
  4. Hard Drive Removal
  5. Expansion Card Removal




1.


  System Cover Removal



1. Pre-Removal Instructions Before removing the First Removal:
  • During installation or removal of any hardware always ensure all data is backed up properly

  • Disconnect any telephone, network, or USB cables from the computer

  • Disconnect the computer and all attached devices from their electrical outlets


2. Establishing image.

SLN288301_en_US__11391424644682.Capture2

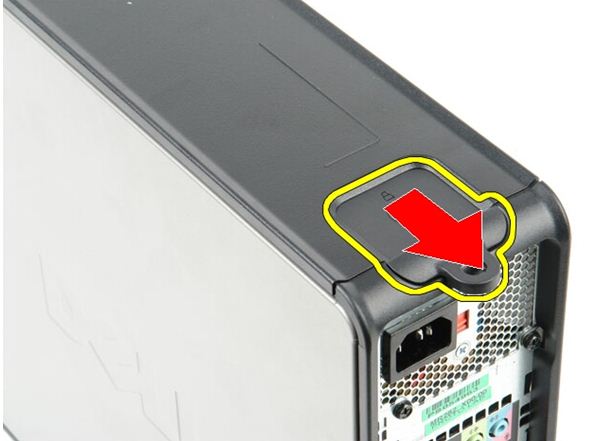

3. Slide back the cover release latch.

SLN288301_en_US__21391424658073.Capture3

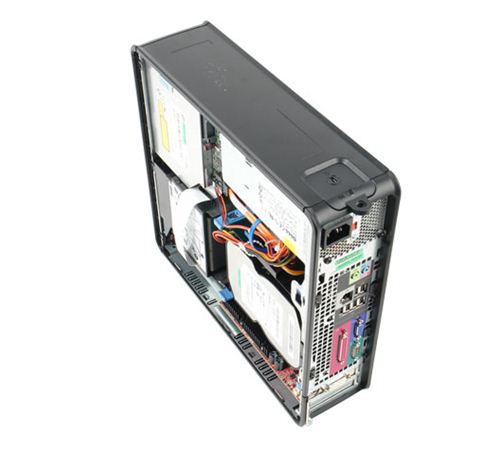

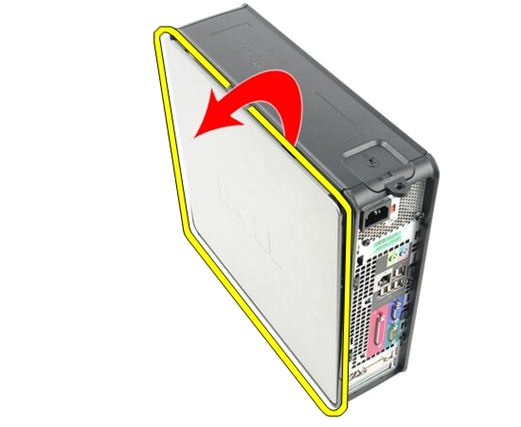

4. Tilt the system cover from the top outward.

SLN288301_en_US__31391424672964.Capture4

5. Complete.

SLN288301_en_US__41391424687699.Capture5


Back to Top




2.


  Optical Drive Removal



1. Pre-Removal Instructions Before removing the Second Removal:
  • During installation or removal of any hardware always ensure all data is backed up properly

  • Disconnect any telephone, network, or USB cables from the computer

  • Disconnect the computer and all attached devices from their electrical outlets

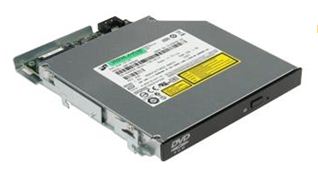

2. Establishing image.

SLN288301_en_US__51391424708215.Capture2

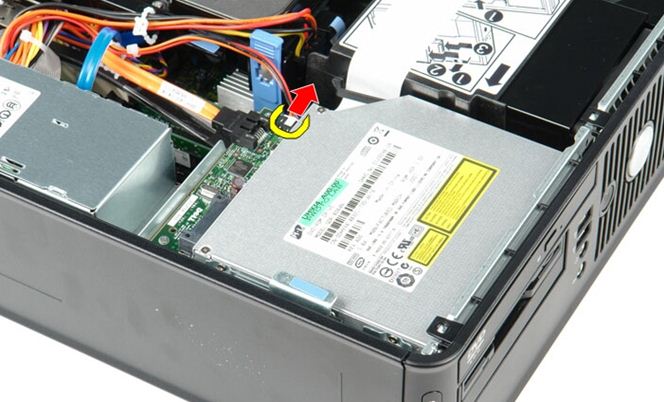

3. Disconnect the power cable from the back of the drive.

SLN288301_en_US__61391424722747.Capture3

4. Disconnect the data cable from the back of the drive.

SLN288301_en_US__71391424742138.Capture4

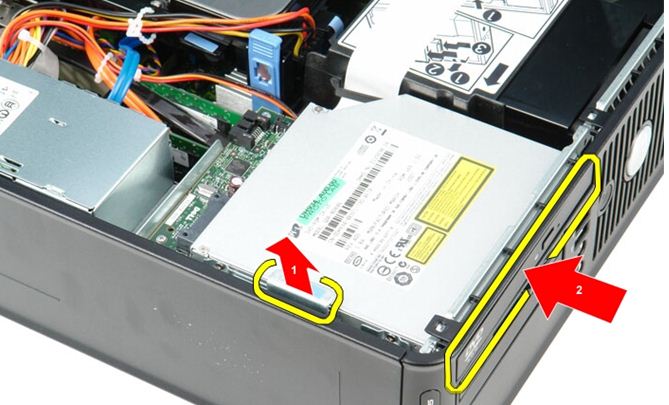

5. Pull up on the drive release latch and slide the drive towards the back of the computer.

SLN288301_en_US__81391424758608.Capture5

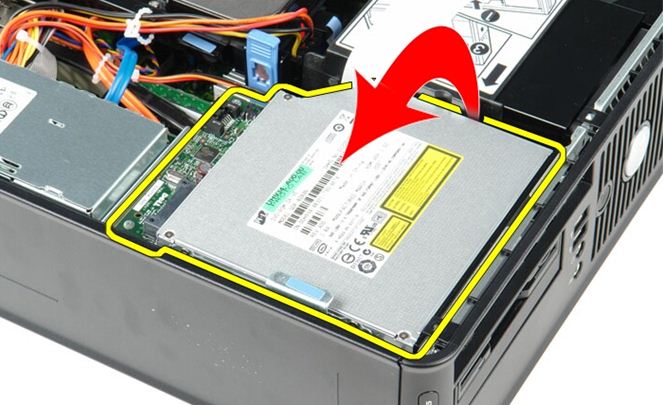

6. Lift the drive up and out of the computer.

SLN288301_en_US__91391424799218.Capture6

7. Complete.

SLN288301_en_US__101391424816578.Capture7



Back to Top







3.


  Memory Removal




1. Pre-Removal Instructions Before removing the Third Removal:
  • During installation or removal of any hardware always ensure all data is backed up properly

  • Disconnect any telephone, network, or USB cables from the computer

  • Disconnect the computer and all attached devices from their electrical outlets



2. Establishing image.

SLN288301_en_US__111391424841845.Capture2

3. Press out on the release tabs located on each side of the memory module.

SLN288301_en_US__121391424860314.Capture3

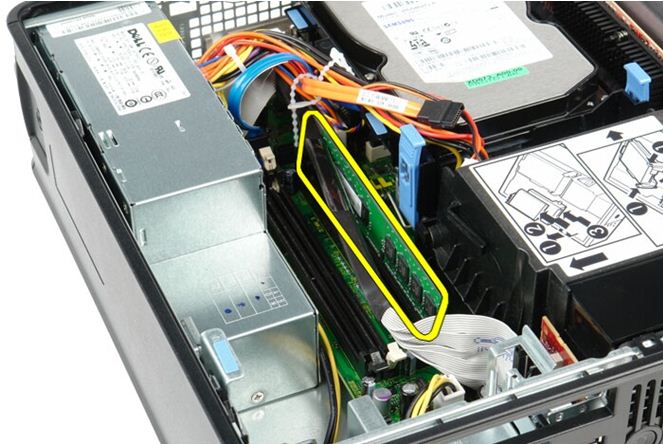

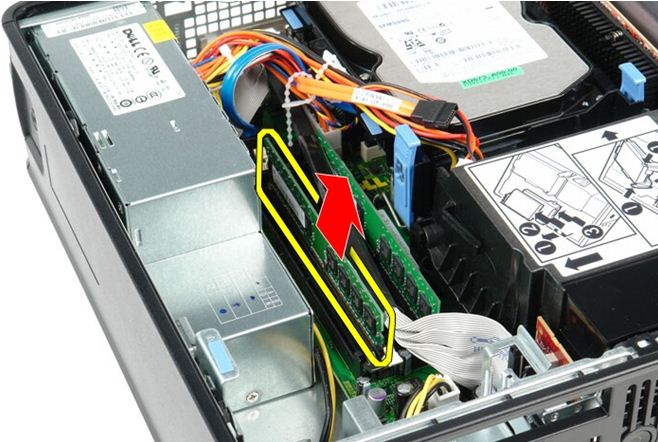

4. Lift the memory module out of the connector on the system board and remove.

SLN288301_en_US__131391424883690.Capture4

5. Repeat for the second memory module.

SLN288301_en_US__141391424903956.Capture5

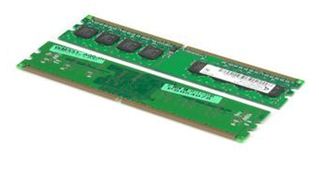

6. Complete.

SLN288301_en_US__151391424921894.Capture6

Back to Top







4.


  Hard Drive Removal




1. Pre-Removal Instructions Before removing the Fourth Removal:
  • During installation or removal of any hardware always ensure all data is backed up properly

  • Disconnect any telephone, network, or USB cables from the computer

  • Disconnect the computer and all attached devices from their electrical outlets

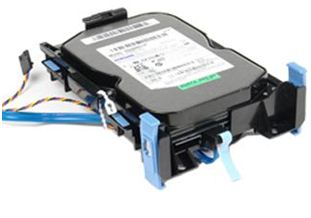

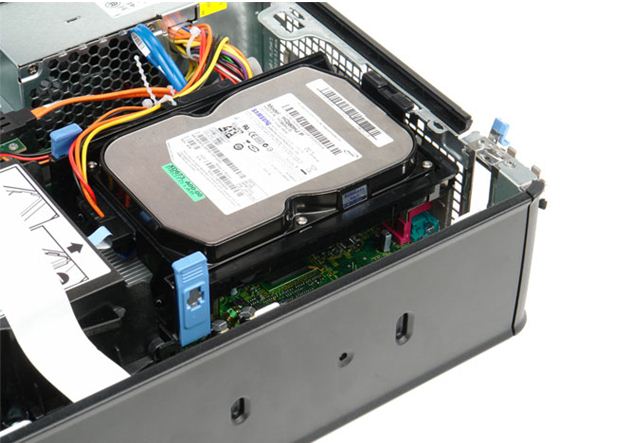

2. Establishing image.

SLN288301_en_US__161391431551466.Capture2

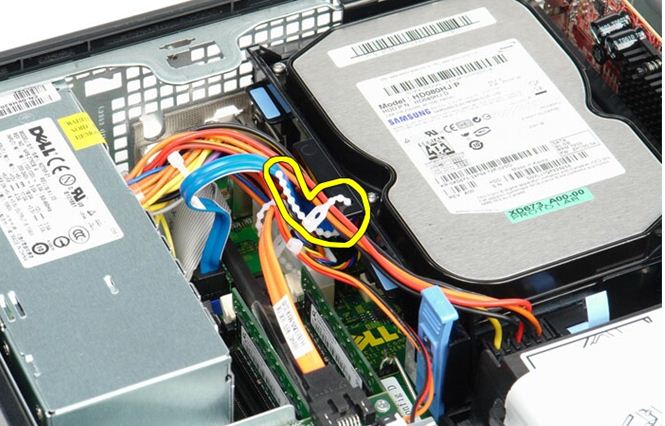

3. Release the cable tie.

SLN288301_en_US__171391431567701.Capture3

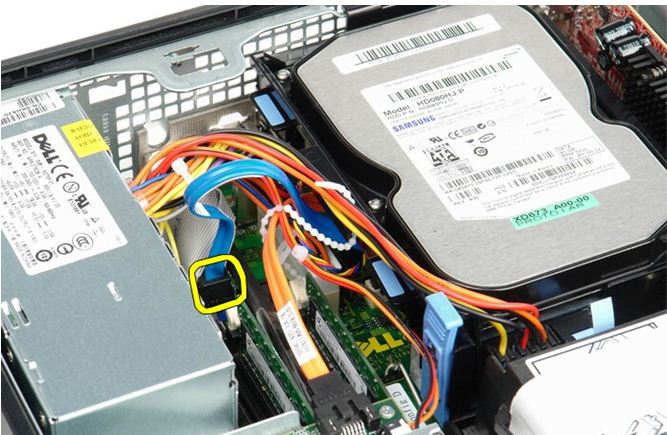

4. Disconnect the data cable from the system board.

SLN288301_en_US__181391431584623.Capture4

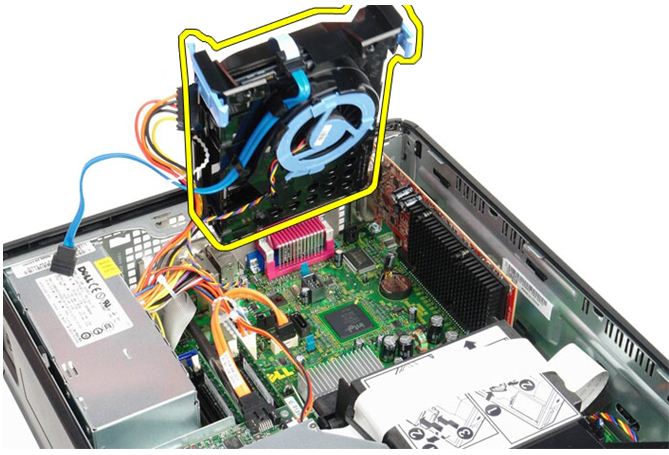

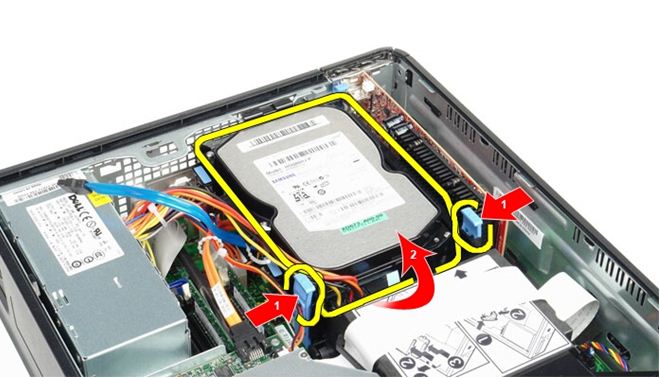

5. Press in on the two blue securing tabs on each side of the drive chassis and slide the drive chassis up and out of the computer.

SLN288301_en_US__191391431600842.Capture5

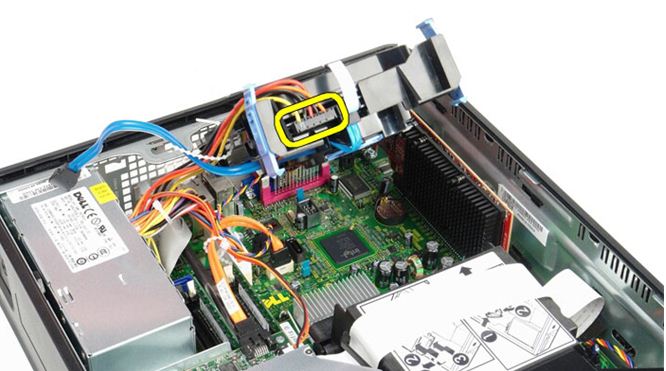

6. Disconnect the hard drive power cable.

SLN288301_en_US__201391431618030.Capture6

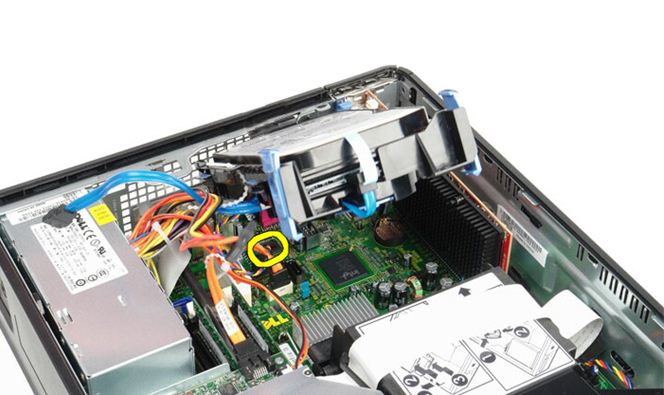

7. Disconnect the hard drive fan cable.

SLN288301_en_US__211391431641515.Capture7

8. Remove the hard drive chassis from the system.

SLN288301_en_US__221391431662016.Capture8

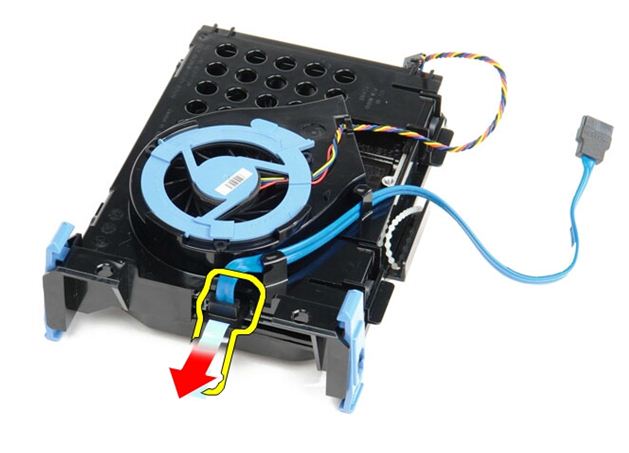

9. Disconnect the hard drive cable from the hard drive chassis by pulling on the blue tab.

SLN288301_en_US__231391431679329.Capture9

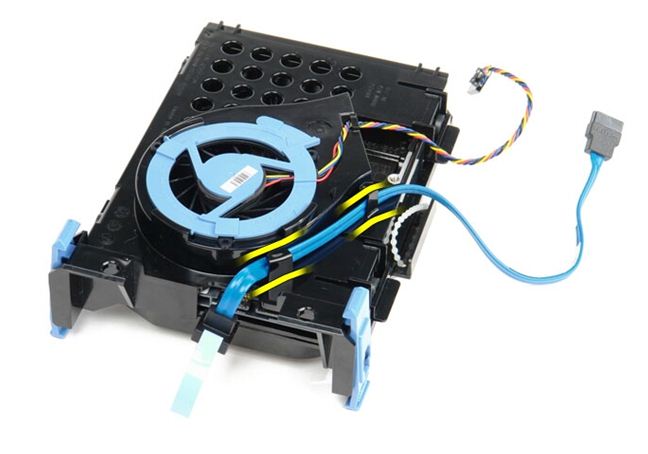

10. Unthread the hard drive data cable from the outside of the drive chassis.

SLN288301_en_US__241391431698048.Capture10

11. Unthread the fan cable from the outside of the hard drive chassis.

SLN288301_en_US__251391431714971.Capture11

12. To release the hard drive fan, lift up on the blue tab, and rotate counter-clockwise.

SLN288301_en_US__261391431839053.Capture12

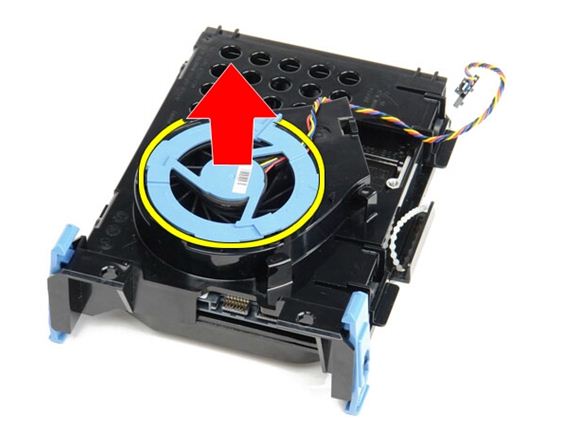

13. Remove the hard drive fan.

SLN288301_en_US__271391431857210.Capture13

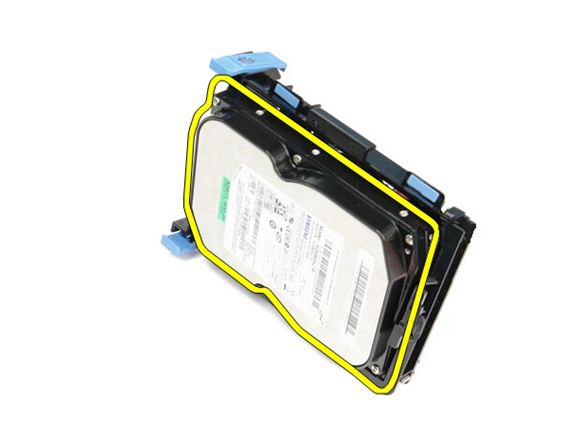

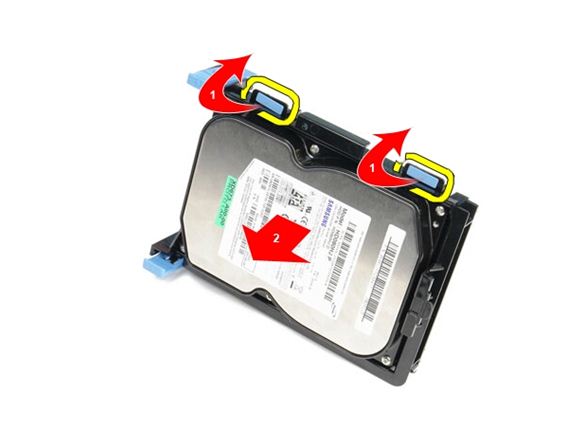

14. To release the hard drive component from the chassis, pull back on the two blue tabs and pull forward on the hard drive.

SLN288301_en_US__281391431878523.Capture14

15. Remove the hard drive component from the hard drive chassis.

SLN288301_en_US__291391431896336.Capture15

16. Complete.

SLN288301_en_US__301391431915227.Capture16

Back to Top







5.


  Expansion Card Removal




1. Pre-Removal Instructions Before removing the Fifth Removal:
  • During installation or removal of any hardware always ensure all data is backed up properly

  • Disconnect any telephone, network, or USB cables from the computer

  • Disconnect the computer and all attached devices from their electrical outlets

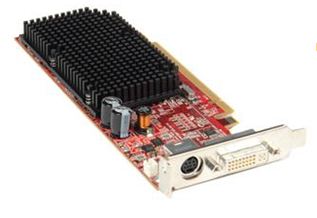

2. Establishing image.

SLN288301_en_US__311391424948942.Capture2

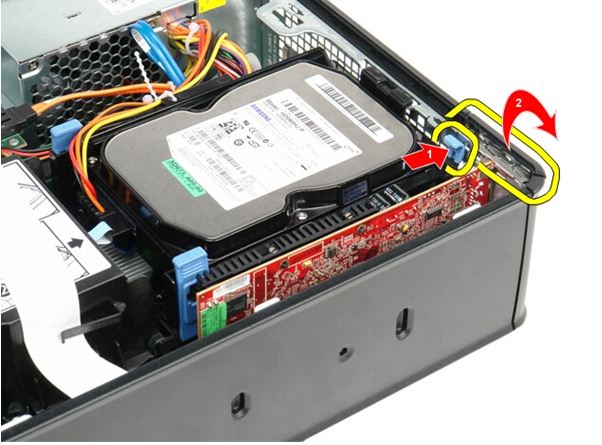

3. Push in on the release tab on the card retention latch from the inside to pivot the latch open.

SLN288301_en_US__321391424968271.Capture3

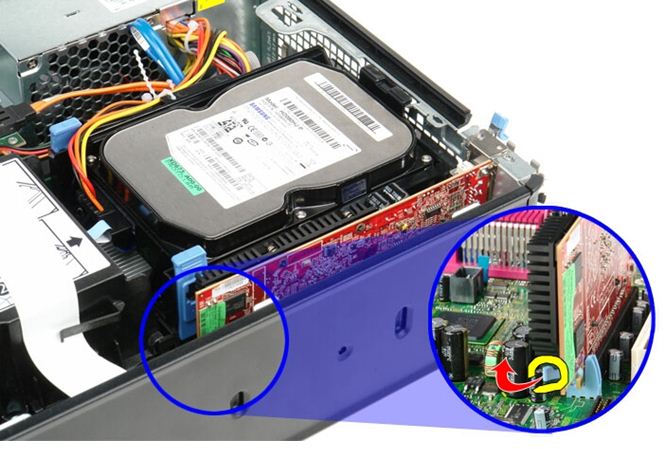

4. Press the lever on the securing tab until you release the securing tab

SLN288301_en_US__331391424990084.Capture4

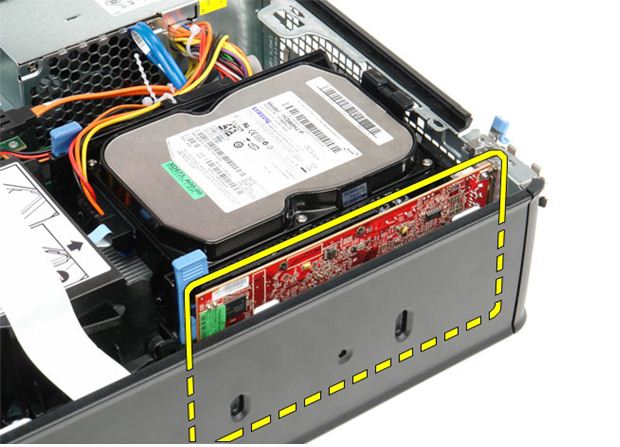

5. Lift the expansion card out of the system.

SLN288301_en_US__341391425008772.Capture5

6. Complete.

SLN288301_en_US__351391425028194.Capture6


Return to the OptiPlex 380 SFF Teardown/Removal Index.
