Data Protection Advisor (DPA): The "Backup SLA Summary By Client" system report is only showing the colour red.
Summary: The system report "Backup SLA Summary By Client" is only showing the colour red for all columns instead of green and red.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms

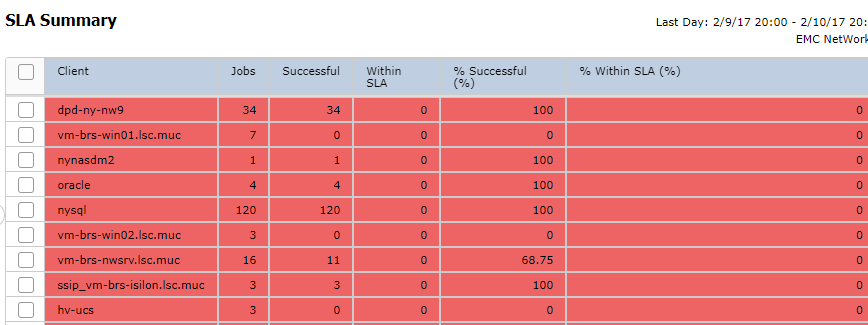

When running the system report "Backup SLA Summary By Client", all columns are showing with a red colour:
Cause
The product is functioning as designed.
Resolution
In the above example all rows are red as they all meet the condition to be marked red which is:
% Within SLA Less than "75"
The condition or color can be adjusted to something else via the following steps:

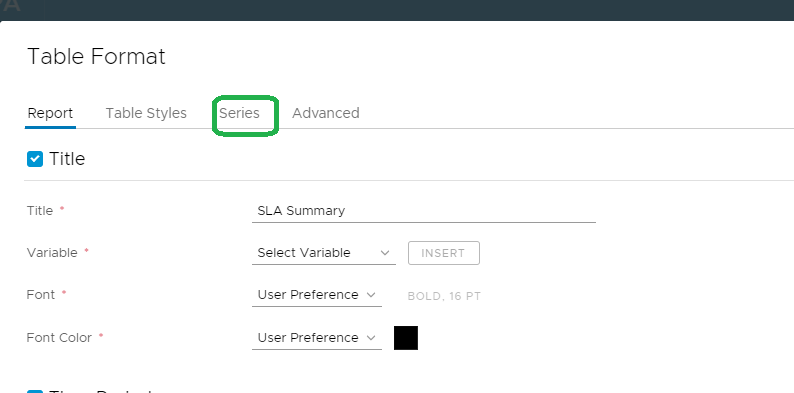

When you run the report and the output is displayed to the screen, go to "Report Format" > Table Format.

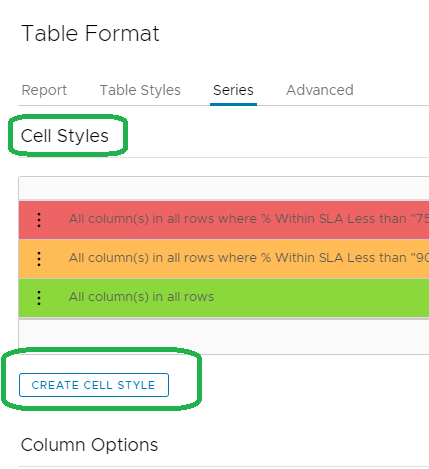

From there "Series" tab, as shown with the green box:
The option to configure/customize the colors is under "Cell Style":

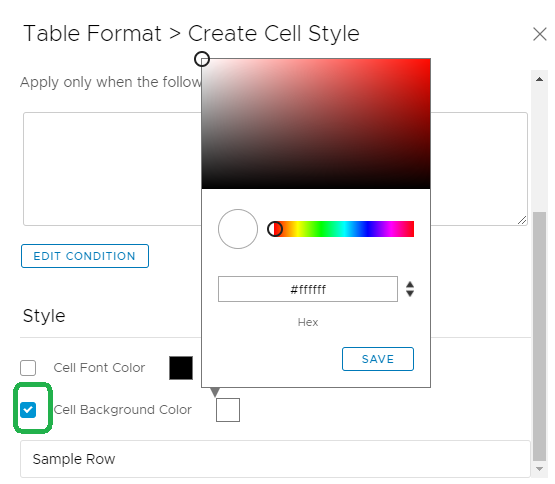

From here you can select the "Cell Background Colour" to suit your needs:

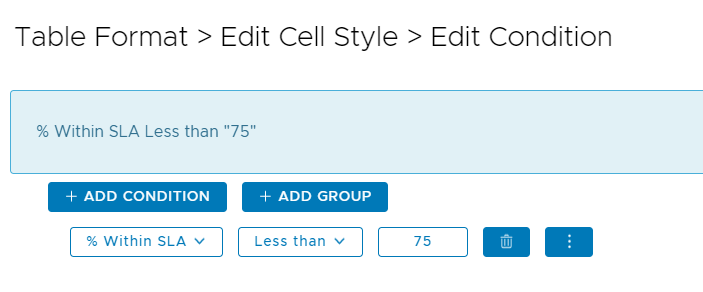

Equally, the conditions can be updated above also under "Edit Condition".

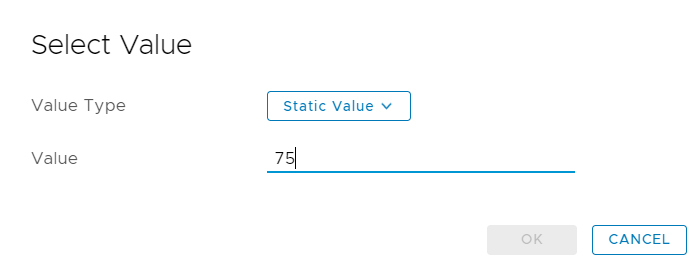

Then double click on the box with 75
The value can then be adjusted to number which is preferable.
% Within SLA Less than "75"
The condition or color can be adjusted to something else via the following steps:
When you run the report and the output is displayed to the screen, go to "Report Format" > Table Format.
From there "Series" tab, as shown with the green box:
The option to configure/customize the colors is under "Cell Style":
From here you can select the "Cell Background Colour" to suit your needs:
Equally, the conditions can be updated above also under "Edit Condition".
Then double click on the box with 75
The value can then be adjusted to number which is preferable.
