PowerProtect DP Series and Integration Data Protection Appliance: PowerProtect DP Health Check Utility shows failure for "validate_vsan"...
Summary: PowerProtect DP Series and Integration Data Protection Appliance (IDPA): PowerProtect DP Health Check Utility shows failure for "validate_vsan" check with error message "Storage Pool validation failed". ...
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms

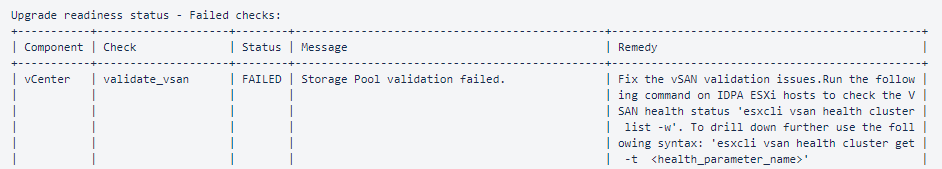

Following error maybe seen when the VSAN Health check fails:
Details
The validate_vsan check verifies the health of VSAN cluster to ensure it is healthy. This check also verifies that all VSAN objects in the cluster are healthy.
Symptoms
On ACM Server, the /tmp/upgrade_precheck.log shows the following script execution failure:
2022-01-25 12:55:09,669 [validation-5] [INFO] -c.e.i.m.c.u.ProcessBuilderExecutor Traceback (most recent call last):
File "/data01/tmp_upgrade_precheck/vsan_validation.py", line 101, in <module>
main()
File "/data01/tmp_upgrade_precheck/vsan_validation.py", line 94, in main
vsan_state_check(vcsaRemote, vcsaIp, vcsaUsername, vcsaPassword, clusterPath)
File "/data01/tmp_upgrade_precheck/vsan_validation.py", line 20, in vsan_state_check
step1_index = [i for i, s in enumerate(vsanState) if 'Step 1: Check for inaccessible VSAN objects'.lower() in s.lower()][0] + 1
IndexError: list index out of range
Note: As per the above error, it is clear that there was an internal health script execution failure while parsing the
To ensure that the VSAN is healthy, check the vSAN health using ESXi command line using the following command:
"vsan.check_state" output. This confirms that the issue exists on PowerProtect Health Check tool.
To ensure that the VSAN is healthy, check the vSAN health using ESXi command line using the following command:
esxcli vsan health cluster list -w
Sample Output from a Healthy System:
[root@dp5900esx1:~] esxcli vsan health cluster list -w
Health Test Name Status
--------------------------------------------------------------------- ----------
Overall health green (OK)
Cluster green
ESXi vSAN Health service installation (healtheaminstall) green
vSAN Health Service up-to-date (healthversion) green
Advanced vSAN configuration in sync (advcfgsync) green
vSAN daemon liveness (clomdliveness) green
vSAN Disk Balance (diskbalance) green
Resync operations throttling (resynclimit) green
Software version compatibility (upgradesoftware) green
Disk format version (upgradelowerhosts) green
Network green
Hosts with connectivity issues (hostconnectivity) green
vSAN cluster partition (clusterpartition) green
All hosts have a vSAN vmknic configured (vsanvmknic) green
vSAN: Basic (unicast) connectivity check (smallping) green
vSAN: MTU check (ping with large packet size) (largeping) green
vMotion: Basic (unicast) connectivity check (vmotionpingsmall) green
vMotion: MTU check (ping with large packet size) (vmotionpinglarge) green
Network latency check (hostlatencycheck) green
Data green
vSAN object health (objecthealth) green
Capacity utilization green
Disk space (diskspace) green
Read cache reservations (rcreservation) green
Component (nodecomponentlimit) green
What if the most consumed host fails (limit1hf) green
Physical disk green
Operation health (physdiskoverall) green
Disk capacity (physdiskcapacity) green
Congestion (physdiskcongestion) green
Component limit health (physdiskcomplimithealth) green
Component metadata health (componentmetadata) green
Memory pools (heaps) (lsomheap) green
Memory pools (slabs) (lsomslab) green
Performance service green
Stats DB object (statsdb) green
Stats master election (masterexist) green
Performance data collection (collection) green
All hosts contributing stats (hostsmissing) green
Stats DB object conflicts (renameddirs) green
Cause
False positive alert due to internal script failure. As per the above error, it is clear that there was an internal health script execution failure while parsing the "vsan.check_state" output. This confirms that this is a false positive alert.
Resolution
This is a known issue on PowerProtect DP Health Check tool version 2.7.2. This failed check can be ignored as false positive.
Run the upgrade validation to confirm it passes.
NOTE: f the above command returns the Status as green (OK), then proceed with the resolution section. If the Status is RED for one or more parameters, stop following this KB Article..
You may also see "
You may also see "
diskbalance" and "perfsvcstatus" as yellow in below esxcli command output, we do not expect these warnings to prevent a successful upgrade, ignore, and proceed with upgrade.
Affected Products
PowerProtect Data Protection Software, Integrated Data Protection Appliance Family, PowerProtect Data Protection Hardware, Integrated Data Protection Appliance SoftwareProducts
PowerProtect DP4400, PowerProtect DP5300, PowerProtect DP5800, PowerProtect DP8300, PowerProtect DP8800, PowerProtect DP5900, PowerProtect DP8400, PowerProtect DP8900Article Properties
Article Number: 000195800
Article Type: Solution
Last Modified: 12 Jun 2026
Version: 8
