PSQN: iDRAC9 IPV6 Auto-Generated Addresses Change Post 5.10.00.00 Firmware Upgrade
Summary: The Dell iDRAC9 IPv6 Link Local and StateLess Address Auto Configuration (SLAAC) Addresses change after upgrading to iDRAC9 firmware 5.10.00.00 or later releases.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
iDRAC9 IPv6 Link Local or SLAAC Addresses change when updating from iDRAC9 versions below 5.10.xx.xx to 5.10.00.00 (or later). After the IPv6 Address change, the iDRAC9 does not respond to queries on the old address.

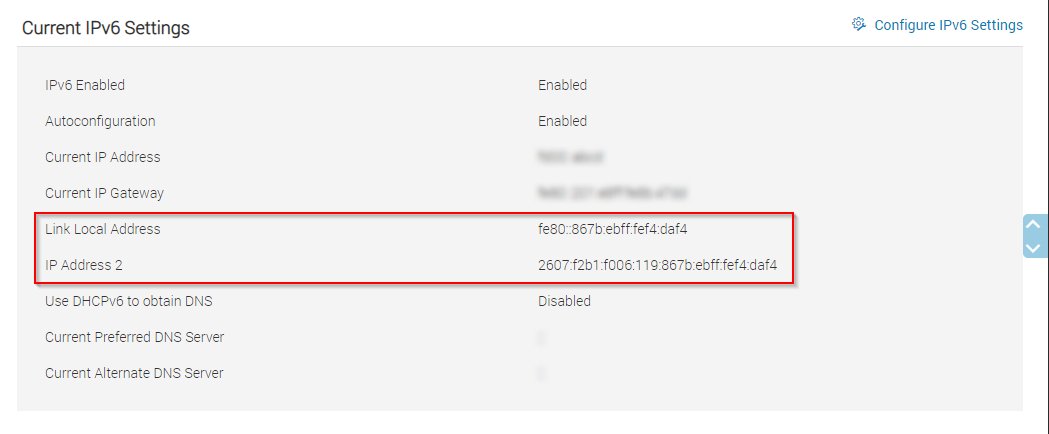

iDRAC9 4.40.40.00 IPv6 Examples (Prechange):
iDRAC9 UI > iDRAC Settings > Current IPv6 Settings
In the Current IPv6 settings screenshot and RACADM output, IP Address 2 is the SLAAC IPv6 address that is defined between network router and iDRAC network daemon.
racadm get idrac.ipv6
racadm>>racadm get idrac.ipv6
[Key=idrac.Embedded.1#IPv6.1]
…
#Address2=2607:f2b1:f006:119:867b:ebff:fef4:daf4
…
#AddressState=Active
AutoConfig=Enabled
…
#DUID=00:01:00:01:25:d0:44:10:84:7b:eb:f4:da:f4
Enable=Enabled
…
#LinkLocalAddress=fe80::867b:ebff:fef4:daf4
PrefixLength=64

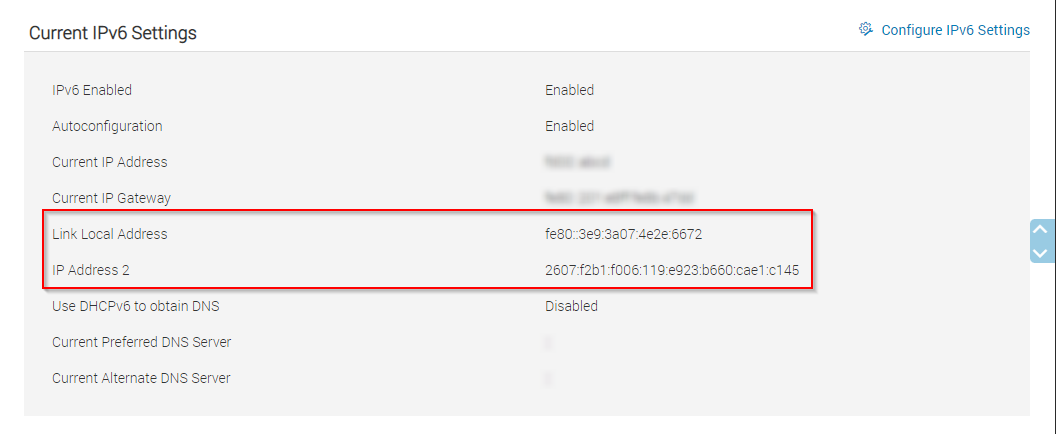

iDRAC9 5.10.00.00 IPv6 Examples (Postchange):
iDRAC9 UI > iDRAC Settings > Current IPv6 Settings
In the Current IPv6 settings screenshot and RACADM output, IP address 2 is the SLAAC IPv6 address that is defined between network router and iDRAC network daemon.
racadm get idrac.ipv6
racadm>>racadm get idrac.ipv6
[Key=idrac.Embedded.1#IPv6.1]
…
#Address2=2607:f2b1:f006:119:e923:b660:cae1:c145
…
AddressGenerationMode=StablePrivacy
#AddressState=Active
AutoConfig=Enabled
…
#DUID=00:01:00:01:25:d0:44:10:84:7b:eb:f4:da:f4
Enable=Enabled
…
#LinkLocalAddress=fe80::3e9:3a07:4e2e:6672
PrefixLength=64
Note: This change only impacts the IPv6 Auto-Generated addresses. Static and DHCPv6 assigned addresses are not impacted during the iDRAC9 firmware update.
Cause
iDRAC9 5.10.00.00 introduces IPv6 Privacy addressing support to maintain industry compliance. All previous versions of iDRAC9 firmware used EUI64 addressing as the default.
Resolution
If the IPv6 Link Local Address was the only method to connect to the out-of-band interface of the iDRAC9, end users can either access the iDRAC from the host through the local racadm command-line interface or iDRAC OS-BMC virtual network to resolve. The following commands can be leveraged to either revert to previous addressing or obtain the new IPv6 Address.
# To revert to IPv6 EUI64 Link Local Address through local racadm
[root@r640-b ~]# racadm set iDRAC.IPv6.AddressGenerationMode EUI64
[Key=iDRAC.Embedded.1#IPv6.1]
Object value modified successfully
# To obtain the IPv6 Addresses through local racadm
[root@r640-b ~]# racadm get iDRAC.IPv6
[Key=idrac.Embedded.1#IPv6.1]
Address1=****::****
#Address10=::
#Address11=::
#Address12=::
#Address13=::
#Address14=::
#Address15=::
#Address2=2607:f2b1:f006:119:e923:b660:cae1:c145
#Address3=::
#Address4=::
#Address5=::
#Address6=::
#Address7=::
#Address8=::
#Address9=::
AddressGenerationMode=StablePrivacy
#AddressState=Active
AutoConfig=Enabled
DNS1=::
DNS2=::
DNSFromDHCP6=Disabled
#DUID=00:01:00:01:25:d0:44:10:84:7b:eb:f4:da:f4
Enable=Enabled
Gateway=***::***:****:****:****
#LinkLocalAddress=fe80::3e9:3a07:4e2e:6672
PrefixLength=64
If an end user prefers to modify the setting through the iDRAC web UI, either the OS-BMC passthrough virtual NIC or iDRAC Direct feature can launch the iDRAC UI through the
169.254.0.3 IPv4 address. See the iDRAC9 User Guide for additional information about either of these features.

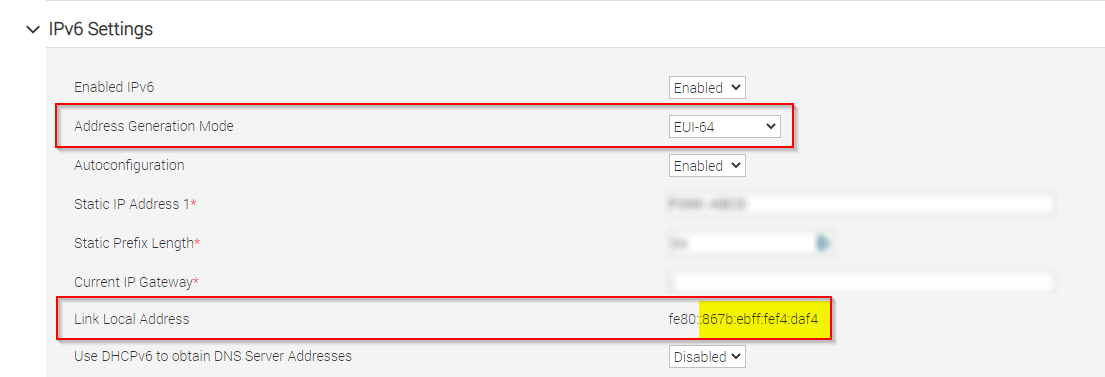

# To revert to IPv6 EUI64 Link Local Address through iDRAC UI.
Go to iDRAC9 UI > iDRAC Settings > Connectivity > Network > IPv6 Settings:
Go to iDRAC9 UI > iDRAC Settings > Connectivity > Network > IPv6 Settings:
Affected Products
PowerFlex rack, iDRAC9, iDRAC9 - 5.xx Series, OEMR R240, OEMR R250, OEMR XE R250, OEMR R260, OEMR XE R260, OEMR R340, OEMR R350, OEMR XE R350, OEMR R360, OEMR XE R360, OEMR R440, PowerEdge XR2, OEMR R450, OEMR R540, OEMR R550, OEMR R640, OEMR XL R640
, OEMR R6415, OEMR R650, OEMR R650xs, OEMR R6515, OEMR R6525, OEMR R660, OEMR XL R660, OEMR R660xs, OEMR R6615, OEMR R6625, OEMR R740, OEMR XL R740, OEMR R740xd, OEMR XL R740xd, OEMR R740xd2, OEMR R7415, OEMR R7425, OEMR R750, OEMR R750xa, OEMR R750xs, OEMR R7515, OEMR R7525, OEMR R760, OEMR R760xa, OEMR R760XD2, OEMR XL R760, OEMR R760xs, OEMR R7615, OEMR R7625, OEMR R840, OEMR R860, OEMR R940, OEMR R940xa, OEMR R960, OEMR T140, OEMR T150, OEMR T340, OEMR T350, OEMR T360, OEMR T440, OEMR T550, OEMR T560, OEMR T640, OEMR XL T640, OEMR XL R240, OEMR XL R340, OEMR XL R660xs, OEMR XL R6615, OEMR XL R6625, OEMR XL R760xs, OEMR XL R7615, OEMR XL R7625, OEMR XR11, OEMR XR12, OEMR XR5610, OEMR XR7620, Poweredge C4140, PowerEdge C6420, PowerEdge C6520, PowerEdge C6525, PowerEdge C6615, PowerEdge C6620, PowerEdge FC640, PowerEdge HS5610, PowerEdge HS5620, PowerEdge M640, PowerEdge M640 (for PE VRTX), PowerEdge MX740C, PowerEdge MX750c, PowerEdge MX760c, PowerEdge MX840C, PowerEdge R240, PowerEdge R250, PowerEdge R260, PowerEdge R340, PowerEdge R350, PowerEdge R360, PowerEdge R440, PowerEdge R450, PowerEdge R540, PowerEdge R550, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R650xs, PowerEdge R6515, PowerEdge R6525, PowerEdge R660, PowerEdge R660xs, PowerEdge R6615, PowerEdge R6625, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R750XA, PowerEdge R750xs, PowerEdge R7515, PowerEdge R7525, PowerEdge R760, PowerEdge R760XA, PowerEdge R760xd2, PowerEdge R760xs, PowerEdge R7615, PowerEdge R7625, PowerEdge R840, PowerEdge R860, PowerEdge R940, PowerEdge R940xa, PowerEdge R960, PowerEdge T140, PowerEdge T150, PowerEdge T160, PowerEdge T340, PowerEdge T350, PowerEdge T360, PowerEdge T440, PowerEdge T550, PowerEdge T560, PowerEdge T640, PowerEdge XE2420, PowerEdge XE7100, PowerEdge XE7420, PowerEdge XE7440, PowerEdge XE8545, PowerEdge XE8640, PowerEdge XE9640, PowerEdge XE9680, PowerEdge XR11, PowerEdge XR12, PowerEdge XR5610, PowerEdge XR7620, VxFlex Ready Node R640, VxFlex Ready Node R740xd, Dell EMC vSAN C6420 Ready Node, Dell EMC vSAN MX740c Ready Node, Dell EMC vSAN MX750c Ready Node, Dell vSAN Ready Node MX760c, Dell EMC vSAN R440 Ready Node, Dell EMC vSAN R640 Ready Node, Dell EMC vSAN R6415 Ready Node, Dell EMC vSAN R650 Ready Node, Dell EMC vSAN R6515 Ready Node, vSAN Ready Node R660, Dell vSAN R6615 Ready Node, Dell EMC vSAN R740 Ready Node, Dell EMC vSAN R740xd Ready Node, Dell EMC vSAN R750 Ready Node, Dell EMC vSAN R7515 Ready Node, Dell EMC vSAN R760 Ready Node, Dell vSAN R7615 Ready Node, Dell vSAN Ready Node R7625, Dell EMC vSAN R840 Ready Node, Dell EMC vSAN T350 Ready Node, VxFlex Ready Node R840
...
