NWUI 无法获取控制面板监视的最新计数，并显示 monitoring.get.error

Summary: NetWorker Web 用户界面 (NWUI) 用于管理 NetWorker 数据区。NWUI 控制面板选项卡显示错误“无法获取控制面板的最新计数。monitoring.get.error“，并且不显示策略、工作流和作的详细信息（成功、失败、正在运行、待处理）。

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

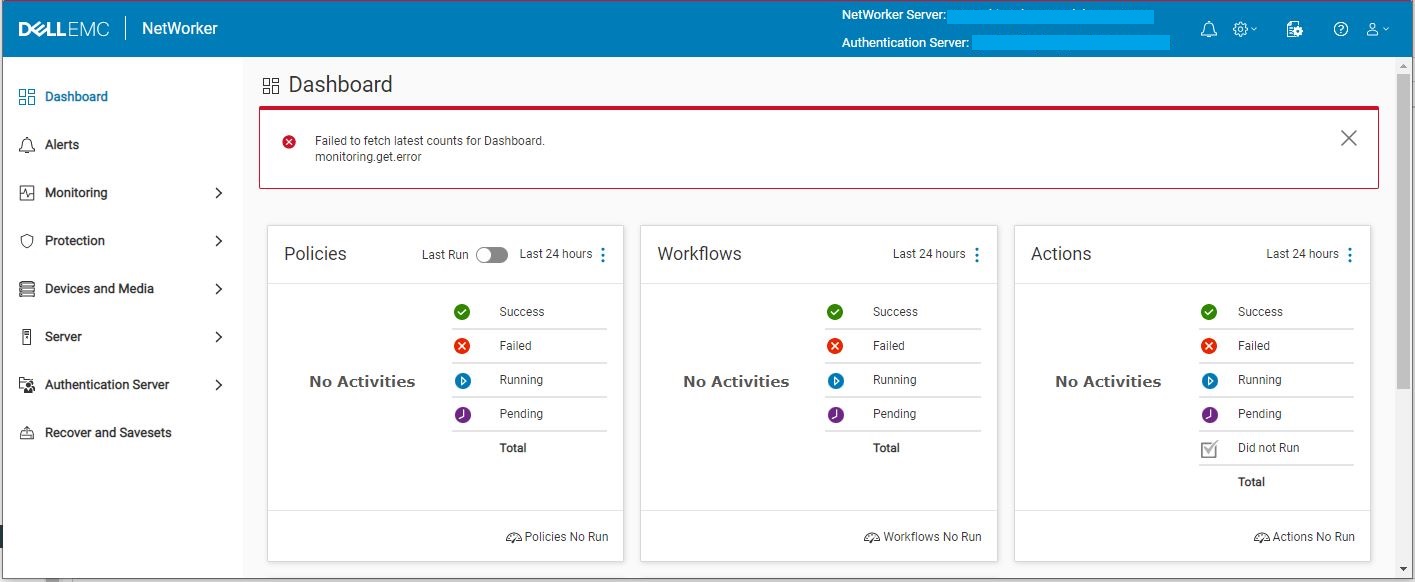

NWUI 控制台显示：

Failed to fetch latest counts for Dashboard
monitoring.get.error

NWUI 控制台

Linux：而 /nsr/authc/logs/nwui.log 显示：
Windows：而 C:\Program Files\EMC NetWorker\nsr\authc-server\tomcat\logs\nwui.log 显示：

HH:MM:SS [https-jsse-nio-9090-exec-7] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service. java.net.ConnectException: Connection refused: connect
HH:MM:SS [https-jsse-nio-9090-exec-3] ERROR c.e.n.c.n.i.MonitoringApi - Error in fetching count of activities based on status from Monitoring Service.

Linux：而 /nsr/nwui/monitoring/app/logs/monitoring-app.log 显示：
Windows：而 C:\Program Files\EMC NetWorker\nwui\monitoring\app\logs\monitoring-app.log 显示：

YYYY-MM-DD HH:MM:SS [StartupInfoLogger] [main] INFO  com.dell.emc.nw.monitoring.NwMonitoringApplication - Started NwMonitoringApplication in 22.145 seconds (JVM running for 25.477)
YYYY-MM-DD HH:MM:SS [DirectJDKLog] [https-jsse-nio-9095-exec-6] INFO  org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header
 Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
java.lang.IllegalArgumentException: Request header is too large
	at org.apache.coyote.http11.Http11InputBuffer.parseHeaders(Http11InputBuffer.java:614) ~[tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:292) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:893) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1723) [tomcat-embed-core-9.0.48.jar!/:?]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_321]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_321]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.48.jar!/:?]
	at java.lang.Thread.run(Thread.java:750) [?:1.8.0_321]

Cause

HTTP 标头大小的默认 monitoring-app.properties 设置为 8 KB。默认 HTTP 标头可能不足以容纳具有大型 Active Directory 用户或组设置的所有标头。

Resolution

增加 NetWorker 服务器上的 monitoring-app.properties HTTP 标头大小设置。

  • 停止 "NetWorker Management Web UI Server" 服务：
Linux：
sudo systemctl stop nwui
Windows：
net stop nwui
  • 打开 monitoring-app.properties 文本编辑器中的文件：
Linux：
sudo vi /nsr/nwui/monitoring/app/conf/monitoring-app.properties
Windows：
notepad C:\Program Files\EMC NetWorker\nwui\monitoring\app\conf\monitoring-app.properties
  • 为 添加新行 server.max-http-header-size 值为 32 KB 的选项
server.max-http-header-size=32KB
  • 将更改保存到 monitoring-app.properties 文件中定义。
  • 启动 "NetWorker Management Web UI Server" 服务：
Linux：
sudo systemctl start nwui
Windows：
net start nwui
